4.3L MPI ALPHA-BRAVO - 1A030368 THRU 1A030369 - Distributor and Ignition Components

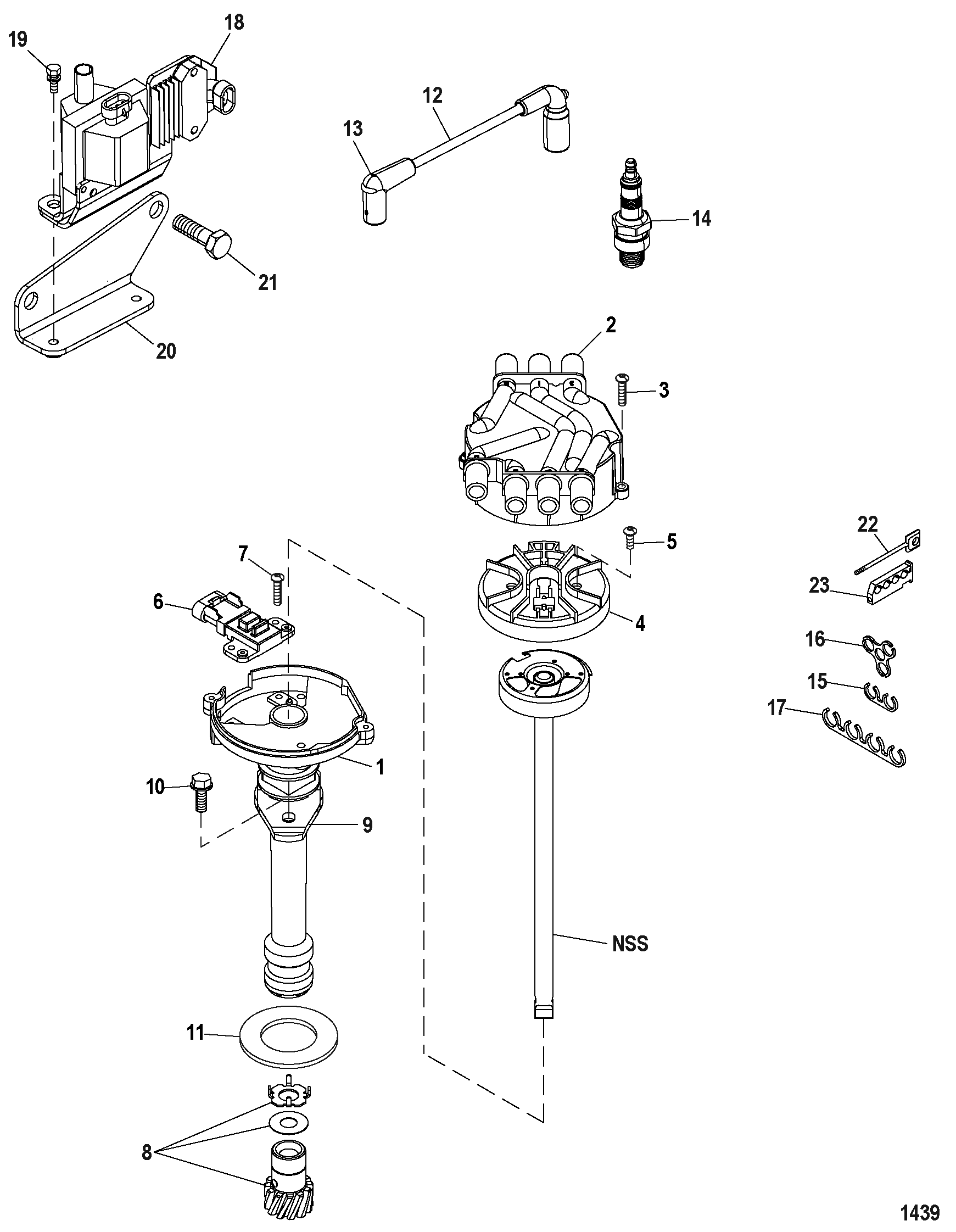

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-888751A03, Sierra: 676-18-5350 DISTRIBUTOR ASSEMBLY   1
2 0000 OEM: 530-898253T23, Sierra: 676-18-5243, GLM: 700-71650 CAP Distributor   1 [1]
3 0010 OEM: 525-10-884786 SCREW   2
4 0000 898253013 ROTOR   1 [2]
5 0010 OEM: 525-10-884788 SCREW   2
6 0000 OEM: 525-898141 SENSOR Hall Effect   1
7 0010 OEM: 525-10-884788 SCREW   2
8 0043 OEM: 525-43-884789 GEAR ASSEMBLY   1
9 0000 OEM: 525-52185 CLAMP   1
10 0010 OEM: 525-10-11976 SCREW (.375-16 x 1.00)   1
11 0027 OEM: 525-27-344863, Sierra: 676-18-0874 GASKET   1 [3]
12 0084 OEM: 530-863656A2, Sierra: 676-18-8829-1 CABLE KIT Ignition (Plug and Coil Wires)
13 0084 OEM: 525-84-863657A1 CABLE ASSEMBLY Coil Wire   1
14 0033 884019001 SPARK PLUG (AC 41-993)   6
15 0000 OEM: 525-54676 RETAINER Two Wire   2
16 0000 OEM: 525-32783 RETAINER Three Wire   2
17 0000 OEM: 525-32784 RETAINER Four Wire   2
18 392 863704T COIL Ignition   1
19 0010 OEM: 525-10-657461 SCREW AND LOCKWASHER (.250- 20 x .625)   2
20 0000 OEM: 525-863663T BRACKET Coil   1
21 0010 OEM: 525-10-98261 SCREW (.375-16 x .750)   2
22 0016 OEM: 525-16-90096A1 STUD ASSEMBLY (#10-32 x Special)   2
23 0054 OEM: 525-54-72821 RETAINER   2

PART NOTES:

[1] - Alternate part numbers:

898253T23Service Part

898253T28Kit


[2] - Alternate part numbers:

898253013QS

8M0061335Kit


[3] - Component of Engine Overhaul Gasket Set 807756A01

Component of Long Block Assembly- 864256A 2
