4.3L MPI ALPHA-BRAVO - 0M615000 THRU 0W309999 - Sea Water Pump Assembly

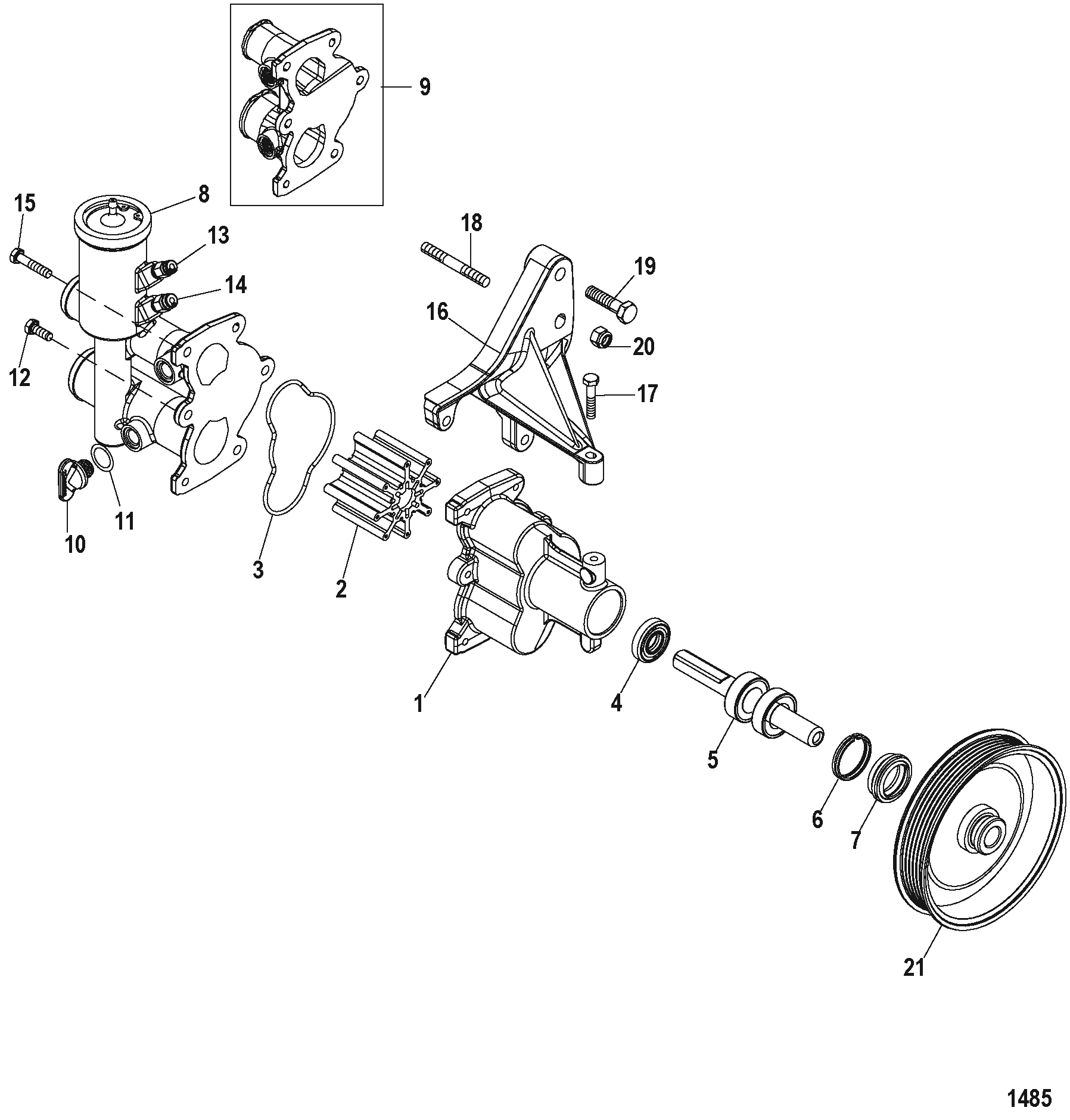

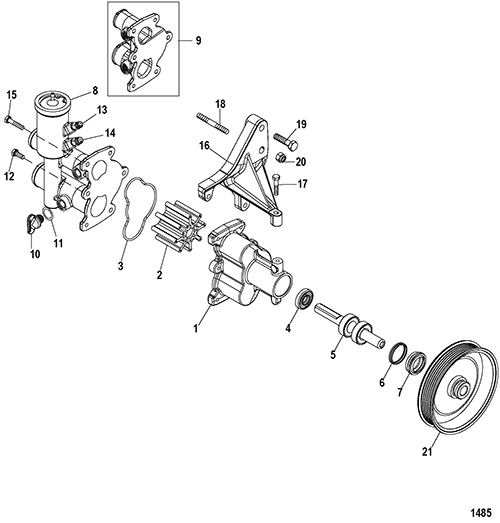

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System
- Cylinder Block Camshaft Crankshaft and Balanceshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Componets
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System
- Flywheel Coupler and Flywheel Housing
- Front Cover and Circulating Pump
- Fuel Filter
- Fuel Pump and Fuel Cooler
- Gasket Set Components (27-807756A01) Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Components
- Maintenance Kits
- Mercathode Components
- Oil Pan Oil Pump and Rear Oil Seal
- Pistons and Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Service and Support Material
- Shift Bracket (Alpha)(SN-0M659999 and Below)
- Shift Bracket (Alpha)(SN-0M660000 and Up)
- Shift Bracket (Bravo)(SN-0M659999 and Below)
- Shift Bracket (Bravo)(SN-0M660000 and Up)
- Standard Cooling System (Seven Point Drain)
- Standard Cooling System (Single and Three Point Drain)
- Starter Motor
- Thermostat and Housing (7 Point Drain)
- Thermostat and Housing (Single and 3 Point Drain)
- Throttle Body
- Water Distribution Housing
- Water Drain (Air Manifold and Pump)
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| - | 0046 | 862914T3 | PUMP ASSEMBLY | (Without Air Fittings) | 1 | |
| - | 0046 | 862914T4 | PUMP ASSEMBLY | (With Air Fittings) | 1 | |
| 1 | 0046 | OEM: 525-46-862914A13, Sierra: 676-18-3160-1 | HOUSING ASSEMBLY Impeller | 1 | ||
| 2 | 0047 | 862232A2 | IMPELLER | 1 | ||
| 3 | 0025 | OEM: 525-25-841807 | O-RING (3.500 x .103) | 1 | ||
| 4 | 0026 | 862037 | SEAL Oil | 1 | ||
| 5 | 0000 | 862235A1 | DRIVESHAFT ASSEMBLY | 1 | ||
| 6 | 0000 | OEM: 525-862039 | TOLERANCE RING | 1 | ||
| 7 | 0026 | OEM: 525-26-862040 | SEAL Lip | 1 | ||
| 8 | 0000 | OEM: 525-863674A05 | COVER KIT Impeller Housing (With Air Fittings) | 1 | ||
| 9 | 0000 | OEM: 525-862776A01 | COVER KIT Impeller Housing (Without Air Fittings) | 1 | ||
| 10 | 0022 | 806608A1 | PLUG KIT (.500-13) Royal Blue | 2 | [1] | |
| 11 | 0025 | 32509 | O-RING (.489 x .070) | 2 | ||
| 12 | 0010 | OEM: 525-10-4000328 | SCREW (M6 x 16) | 4 | ||
| 13 | 0022 | OEM: 525-22-863718 | FITTING Gray - Straight Male Air | (.1562)(Component of T-4 Pump) | 1 | |
| 14 | 0022 | OEM: 525-22-863719 | FITTING Orange - Straight Male Air | (.1875)(Component of T-4 Pump) | 1 | |
| 15 | 0010 | OEM: 525-10-4000331 | SCREW (M6 x 30) | 2 | ||
| 16 | 0000 | 865143T | BRACKET Sea Water Pump | 1 | ||
| 17 | 0010 | OEM: 525-10-4000331 | SCREW (M6 x 30) | 1 | ||
| 18 | 0016 | OEM: 525-16-863853 | STUD | 2 | ||
| 19 | 0010 | OEM: 525-10-32132 | SCREW (.375-16 x 1.750) | 1 | ||
| 20 | 0011 | OEM: 525-11-82671112 | NUT (.375-16) | 2 | ||
| 21 | 0000 | 862351T | PULLEY | 1 |
PART NOTES:
[1] - Alternate part numbers:
806608A 1Service Part
806608Q01QS
