4.3L MPI ALPHA-BRAVO - 0M615000 THRU 0W309999 - Intake Manifold and Fuel Rail

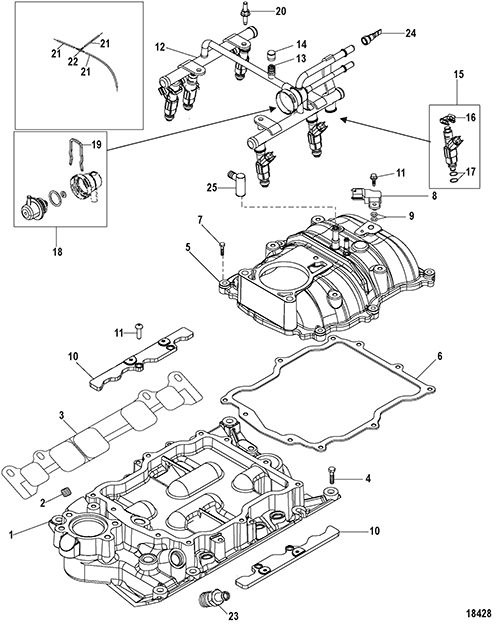

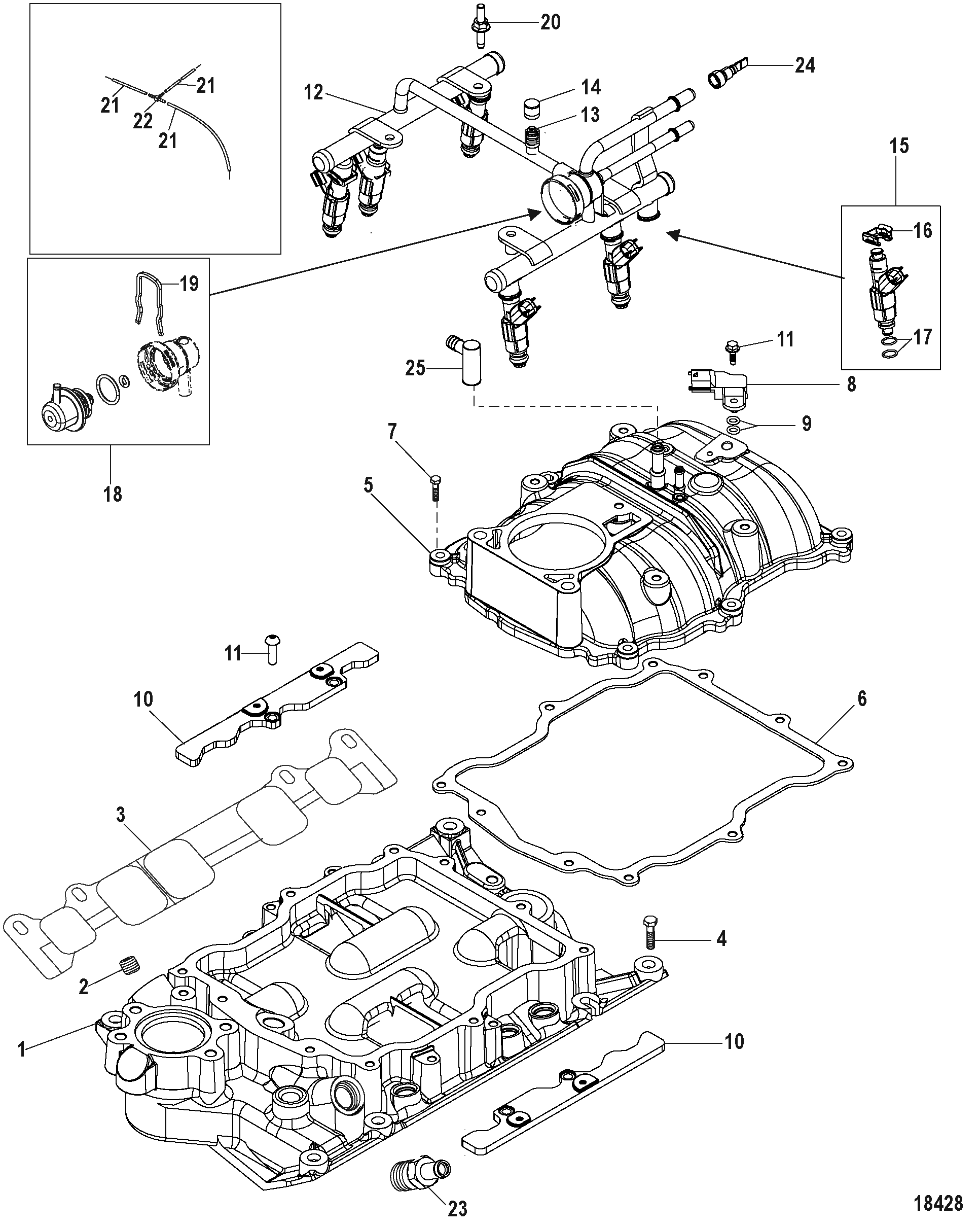

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System
- Cylinder Block Camshaft Crankshaft and Balanceshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Componets
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System
- Flywheel Coupler and Flywheel Housing
- Front Cover and Circulating Pump
- Fuel Filter
- Fuel Pump and Fuel Cooler
- Gasket Set Components (27-807756A01) Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Components
- Maintenance Kits
- Mercathode Components
- Oil Pan Oil Pump and Rear Oil Seal
- Pistons and Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Service and Support Material
- Shift Bracket (Alpha)(SN-0M659999 and Below)
- Shift Bracket (Alpha)(SN-0M660000 and Up)
- Shift Bracket (Bravo)(SN-0M659999 and Below)
- Shift Bracket (Bravo)(SN-0M660000 and Up)
- Standard Cooling System (Seven Point Drain)
- Standard Cooling System (Single and Three Point Drain)
- Starter Motor
- Thermostat and Housing (7 Point Drain)
- Thermostat and Housing (Single and 3 Point Drain)
- Throttle Body
- Water Distribution Housing
- Water Drain (Air Manifold and Pump)
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-888771T | MANIFOLD Intake Lower | 1 | ||
| 2 | 0022 | 48358 | PLUG (.375) | 1 | ||
| 3 | 0027 | 8243261 | GASKET SET Intake Manifold | 1 | [1] | |
| 4 | 0010 | OEM: 525-10-808010 | SCREW (.312-18 x 1.375) | 8 | ||
| 5 | 0000 | OEM: 525-888773T | MANIFOLD Intake Upper | 1 | ||
| 6 | 0027 | OEM: 525-27-888774 | GASKET Intake Manifold | 1 | [1] | |
| 7 | 0010 | OEM: 525-10-885166 | SCREW | 8 | ||
| 8 | 0000 | OEM: 525-885165 | SENSOR Manifold Air Pressure and Temperature | 1 | ||
| 9 | 0025 | OEM: 525-25-881733 | SEAL | 2 | [1] | |
| 10 | NSS | NOT SOLD SEPARATE Bracket-Component of 888771T | 1 | |||
| 11 | 0010 | OEM: 525-10-885180 | SCREW | 4 | ||
| 12 | 0000 | OEM: 525-888775T | FUEL RAIL ASSEMBLY | 1 | ||
| 13 | 0000 | OEM: 525-885178 | VALVE Fuel Pressure Service | 1 | ||
| 14 | 0000 | OEM: 525-885179 | CAP Fuel Pressure Service Valve | 1 | ||
| 15 | 0000 | OEM: 525-885176, Sierra: 676-18-7688 | INJECTOR | 6 | ||
| 16 | 0000 | OEM: 525-885177 | RETAINER Injector | 1 | ||
| 17 | 0025 | OEM: 525-25-892609 | O-RING KIT | 1 | ||
| 18 | 0000 | OEM: 525-885174 | REGULATOR Fuel Pressure | 1 | ||
| 19 | 0000 | OEM: 525-885175 | CLIP Fuel Pressure Regulator Retaining | 1 | ||
| 20 | 0010 | OEM: 525-10-885180 | SCREW | 4 | ||
| 21 | 0032 | 80617382 | HOSE (58.00 Inches Bulk) (Cut to Appropriate Length) | 2 | ||
| 22 | 0022 | OEM: 525-22-806689 | FITTING Tee | 1 | ||
| 23 | 0022 | OEM: 525-22-863426 | FITTING EGR Plug | 1 | ||
| 24 | 0022 | OEM: 525-22-8623601 | PLUG Fuel Rail Block Off | 1 | ||
| 25 | 0022 | 863432 | FITTING 90 Degree | 2 | ||
| - | 0027 | OEM: 525-27-807756A01 | GASKET SET Engine Overhaul | 1 |
PART NOTES:
[1] - Component of Engine Overhaul Gasket Set 807756A01
