4.3L EFI (GEN+) TBI GM 262 V-6 - 0L619000 THRU 0M322780 - Oil Reservoir Bottle And Bracket

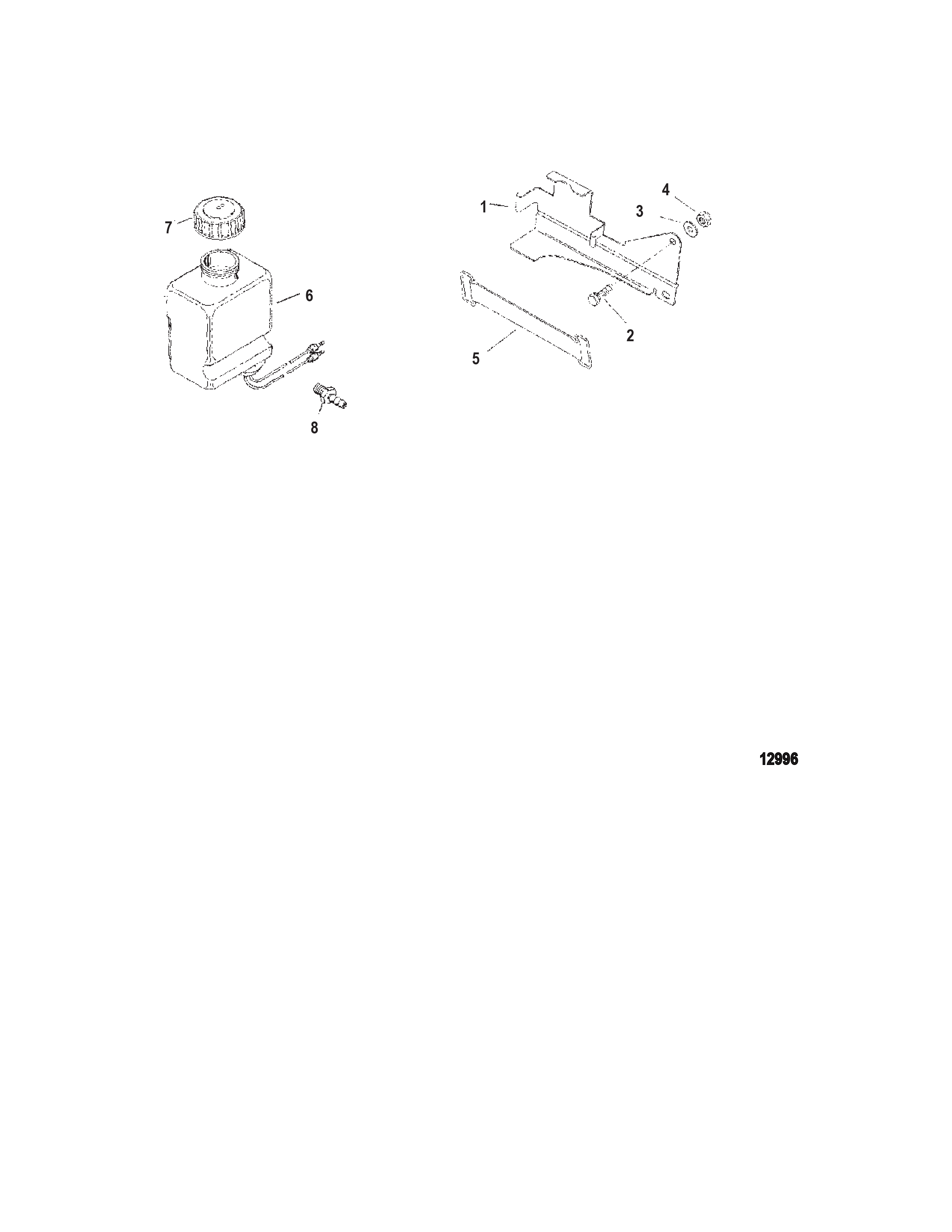

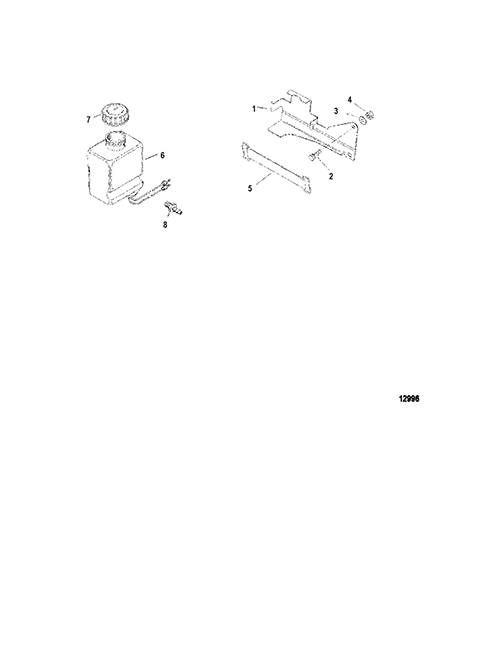

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor
- ECM And Electrical Brackets
- Electrical Components
- Engine Mounting
- Exhaust Manifold (One Piece)
- Exhaust Manifold And Exhaust Elbow (Two Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust System (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Jackshaft
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Service-Support Material
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor
- Swiss Emissions Parts (BSO1 And SAV1)
- Throttle Body
- Throttle Linkage
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 807839T1 | BRACKET | 1 | ||
| 2 | 0010 | OEM: 525-10-657461 | SCREW AND LOCKWASHER (.250- 20 x .625) | (One Piece Exhaust Manifold) | 1 | |
| 3 | 0012 | OEM: 525-12-69057 | WASHER (.281 x .734 x .063) | (One Piece Exhaust Manifold) | 1 | |
| 4 | 0011 | OEM: 525-11-8267088 | NUT (.250-20) | (One Piece Exhaust Manifold) | 1 | |
| 5 | 0000 | OEM: 525-808023T | STRAP Bracket | 1 | ||
| 6 | 0000 | 806193A33 | MONITOR ASSEMBLY Oil | 1 | ||
| 7 | 0036 | OEM: 530-8067271 | CAP Drive Lube Monitor | 1 | ||
| 8 | 0022 | OEM: 525-22-808624 | CONNECTOR | 1 |
