4.3L EFI (GEN+) TBI GM 262 V-6 - 0L619000 THRU 0M322780 - Cylinder Head And Rocker Cover

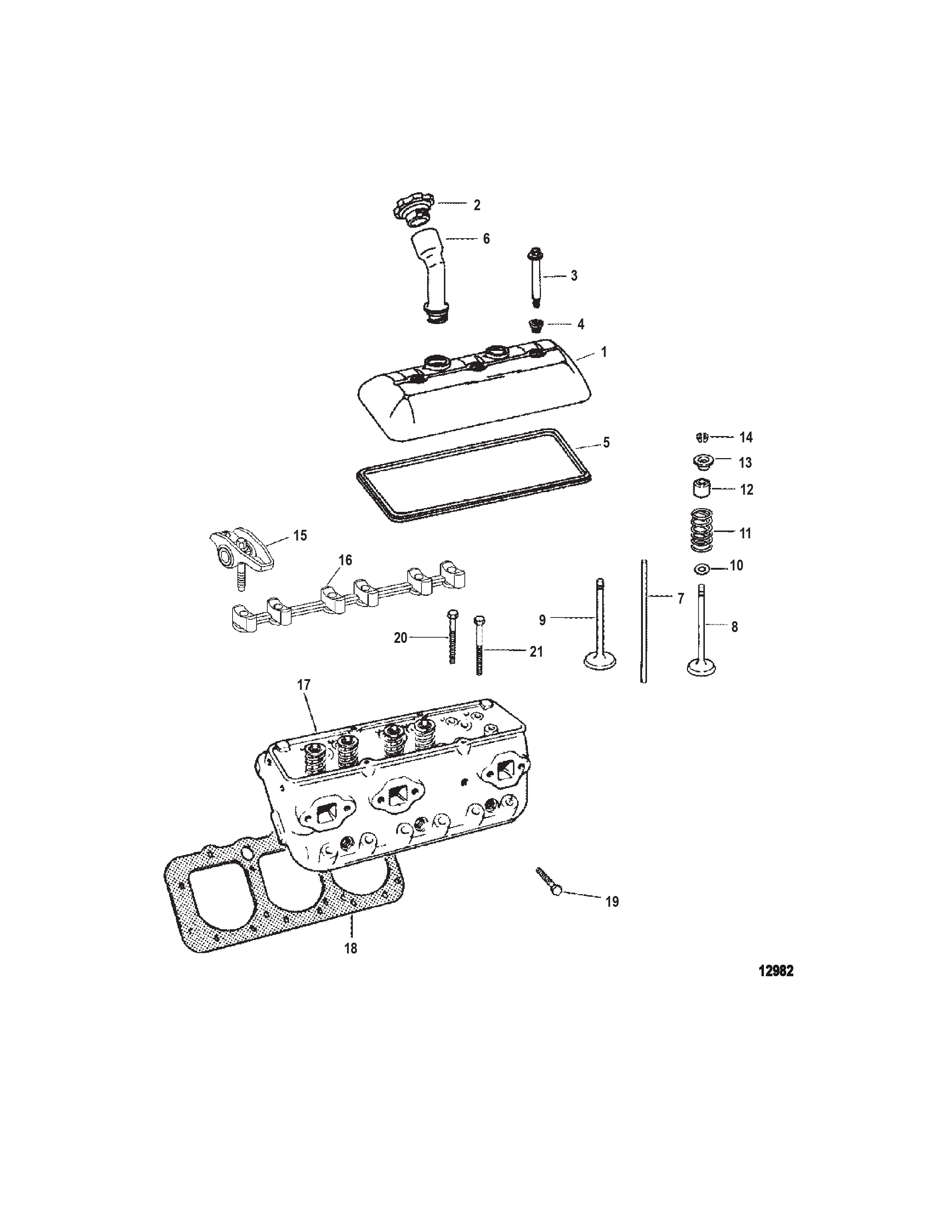

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-827149 COVER Rocker Without oil fill opening 1
1 0000 OEM: 525-827150 COVER Rocker With oil fill opening 1
2 0036 OEM: 525-36-827151 CAP Oil Fill   1
3 0010 OEM: 525-10-827153 SCREW   6
4 0025 OEM: 525-25-827155 O-RING   6
5 0027 OEM: 525-27-827154, Sierra: 676-18-61319, GLM: 700-30358 GASKET Rocker Cover   2 [1]
6 0000 OEM: 525-806754T TUBE Oil Fill   1
7 0000 OEM: 525-173391 PUSH ROD   12
8 0000 OEM: 525-8243171 VALVE Exhaust (Standard) 6
8 0000 OEM: 525-8243181 VALVE Exhaust (.030 Over Size) AR
9 0000 OEM: 525-809992 VALVE Intake (Standard) 6
10 0026 OEM: 525-26-976641, Sierra: 676-18-4024 SEAL (Intake Valve) 6 [1]
10 0026 OEM: 525-26-34217, Sierra: 676-18-0518 SEAL (Exhaust Valve (O-Ring) 6 [1]
11 0024 OEM: 525-24-483471 SPRING   12
12 0000 34518 SHIELD   12
13 0000 OEM: 525-483481 CAP   12
14 0028 OEM: 525-28-547971 KEY   24
15 0000 883164 ROCKER ARM ASSEMBLY Roller   12 [2]
16 0000 OEM: 525-883165 SUPPORT Rocker Arm Roller   2 [2]
17 0938 OEM: 525-938-8271783 CYLINDER HEAD   2 [3]
18 0027 816460 GASKET   2 [1]
19 0010 OEM: 525-10-11968 SCREW (.437-14 x 1.750)   12
20 0010 119671 SCREW (.437-14 x 3.00)   4
21 0010 OEM: 525-10-11966 SCREW (.437-14 x 3.750)   10
- 0027 OEM: 525-27-807756A96 GASKET SET Engine Overhaul   1

PART NOTES:

[1] - Component Of Engine/Powerhead Gasket Set 807756A96

[2] - Part Is New And Listed For The First Time

[3] - Alternate part numbers:

827178 3QS

8M0115136Kit
