4.3L EFI (GEN+) TBI GM 262 V-6 - 0L012009 THRU 0L618999 - Mercathode Components

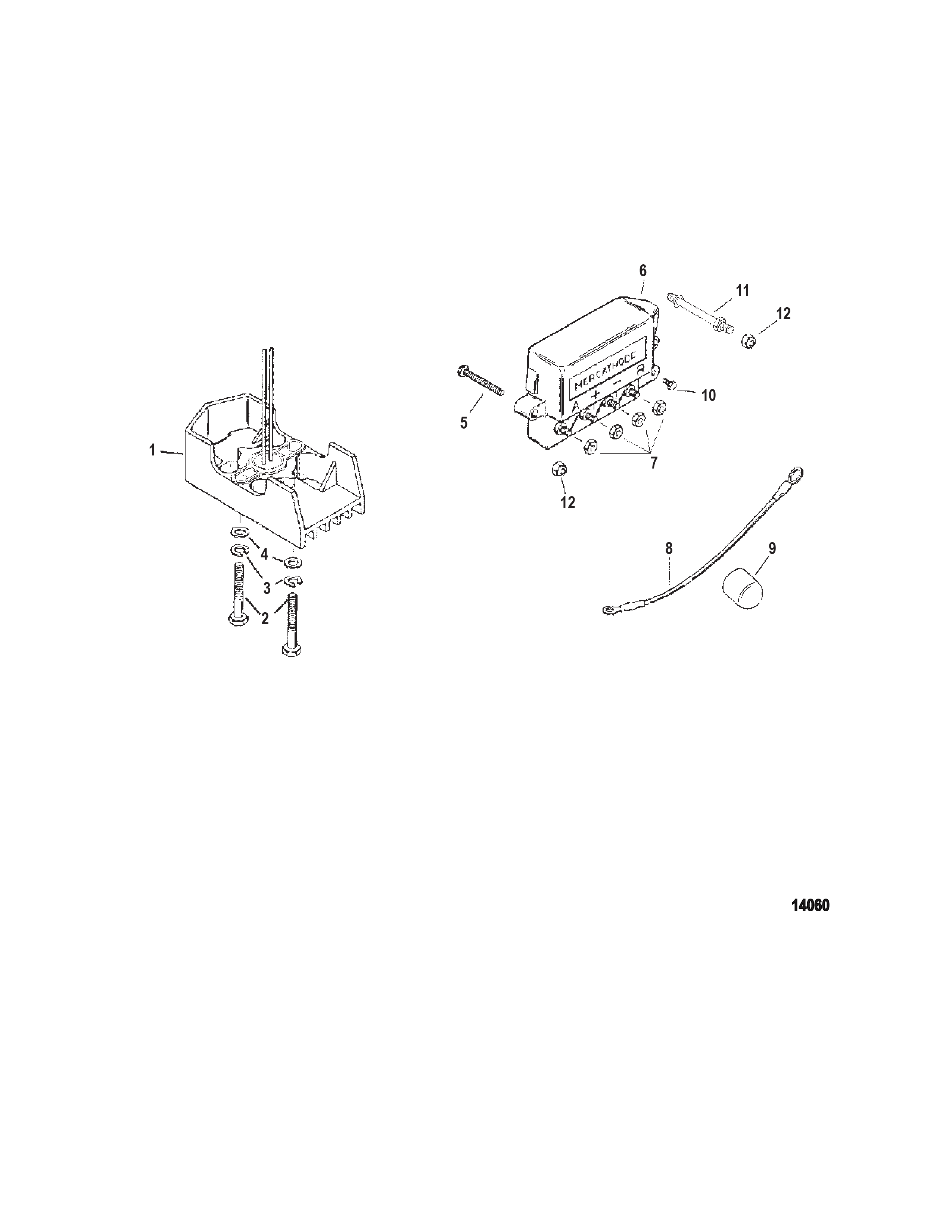

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 98869A11 ELECTRODE ASSEMBLY   1
2 0010 OEM: 525-10-69067 SCREW (.250-20 x 1.375)   2
3 0013 OEM: 525-13-26992 LOCKWASHER (.250) Stainless Steel   2
4 0012 OEM: 525-12-29245, Sierra: 676-18-4275, GLM: 700-21490 WASHER (.281 x .500 x .060) Stainless Steel   2
5 0010 OEM: 525-10-72202, GLM: 700-22312 SCREW (#10-32 x 1.25)   1
5 0010 OEM: 525-10-805565 SCREW (#10-32 x .750)   1
6 0000 42600A3 CONTROLLER ASSEMBLY   1
7 0011 OEM: 525-11-68219 NUT (#10-32) Stainless Steel   4
8 0084 OEM: 525-84-88543A3 CABLE ASSEMBLY   1
9 0000 44574 CAP   2
10 0010 OEM: 525-10-62568 SCREW (#10-16 x .375)   1
11 0016 OEM: 525-16-805459 STUD Mercathode Mounting   1
12 0011 29488 NUT (#10-32)   2
