4.3L CARB ALPHA-BRAVO - 0W310000 THRU 0W649999 - Front Cover and Circulating Pump

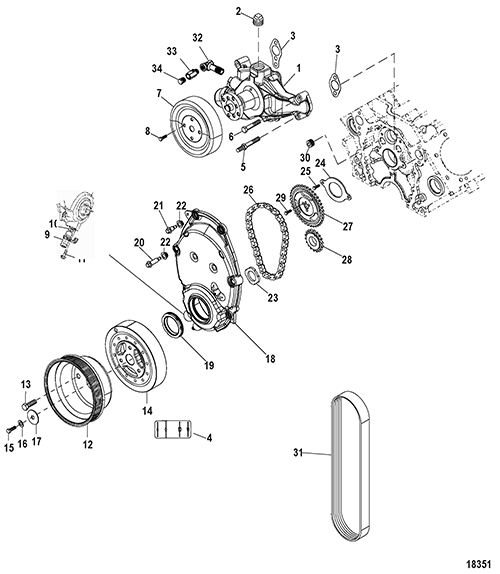

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 8503991 PUMP ASSEMBLY Water   1 [1]
2 0022 49146 PLUG Pipe (Standard Cooling) 1 [2]
3 0027 OEM: 525-27-34897, Sierra: 676-18-0891, GLM: 700-31380 GASKET Water Pump   2 [3]
4 0037 864250 DECAL Timing   1
5 0016 35342 STUD (.312-24/.375-16 x 2.5625)   2 [2]
6 0010 OEM: 525-10-32132 SCREW (.375-16 x 1.750)   2 [2]
6 0010 OEM: 525-10-47688 SCREW (.375-16 x 2.750)   1 [2]
7 0000 807729T PULLEY   1 [2]
8 0010 OEM: 525-10-47277 SCREW (.312-24 x .750)   4 [2]
9 0000 864297001 SENSOR ASSEMBLY Crankshaft Position   1 [2]
10 0025 OEM: 525-25-885192 O-RING   1 [3]
11 0010 884018 SCREW   1 [2]
12 0000 OEM: 530-807730T PULLEY Crankshaft   1
13 0010 OEM: 525-10-34352 SCREW (.375-24 x .875)   3
14 0000 OEM: 525-888776T HARMONIC BALANCER   1 [2]
15 0010 32515 SCREW (.437-20 x 2.50)   1 [2]
16 0013 OEM: 525-13-39131 LOCKWASHER (.437)   1 [2]
17 0012 OEM: 525-12-71458 WASHER   1 [2]
18 0000 888777001 TIMING COVER ASSEMBLY   1 [2]
19 0026 OEM: 525-26-888779 SEAL Oil   1 [3]
20 0010 888780 BOLT Timing Cover   2 [2]
21 0010 OEM: 525-10-888781 BOLT Timing Cover   3 [2]
22 0026 OEM: 525-26-888782 GROMMET Timing Cover   6 [3]
23 0000 OEM: 525-889334 RELUCTOR WHEEL   1 [2]
24 0000 OEM: 525-824333 RETAINER Camshaft   1 [2]
25 0010 OEM: 525-10-824334 SCREW (.250-20 x .500)   2 [2]
26 0000 OEM: 525-883494 CHAIN KIT Timing   1 [2]
27 0043 824328 SPROCKET Camshaft   1 [2]
28 0043 OEM: 525-43-17160 SPROCKET Crankshaft   1 [2]
29 0010 824329 SCREW (.312-18 x .750)   3 [2]
30 0019 OEM: 525-19-816565 PLUG Cup (.468) Pipe   1 [2]
31 0057 865615004 BELT (Alpha) (Power Steering) 1
31 0057 865615009 BELT (Alpha) (Compact Hydraulic Steering) 1
31 0057 865615003 BELT (Bravo) (Power Steering) 1
31 0057 865615008 BELT (Bravo) (Compact Hydraulic Steering) 1
32 0022 OEM: 525-22-865526 FITTING   1
33 0020 OEM: 525-20-865525 VALVE   1
34 0022 OEM: 525-22-32803, Sierra: 676-18-4264, GLM: 700-21894 PLUG Pipe (.375-18) Brass   1
- 0027 OEM: 525-27-824326A02, GLM: 700-39014 GASKET SET Engine Overhaul   1
- 0000 864256A1 LONGBLOCK ASSEMBLY (4.3L)   1 [4]

PART NOTES:

[1] - Alternate part numbers:

850399 1QS

850399R04Reman

Component of Long Block Assembly -Long Block Part Numbers Listed on Service/Support Material Page


[2] - Component of Long Block Assembly -Long Block Part Numbers Listed on Service/Support Material Page


[3] - Component of Engine Overhaul Gasket Set 824326A02

Component of Long Block Assembly -Long Block Part Numbers Listed on Service/Support Material Page


[4] - Alternate part numbers:

862757R01Reman

864256A 1QS

8M0063328Reman Int'l
