4.3L CARB ALPHA-BRAVO - 0W310000 THRU 0W649999 - Electrical Components

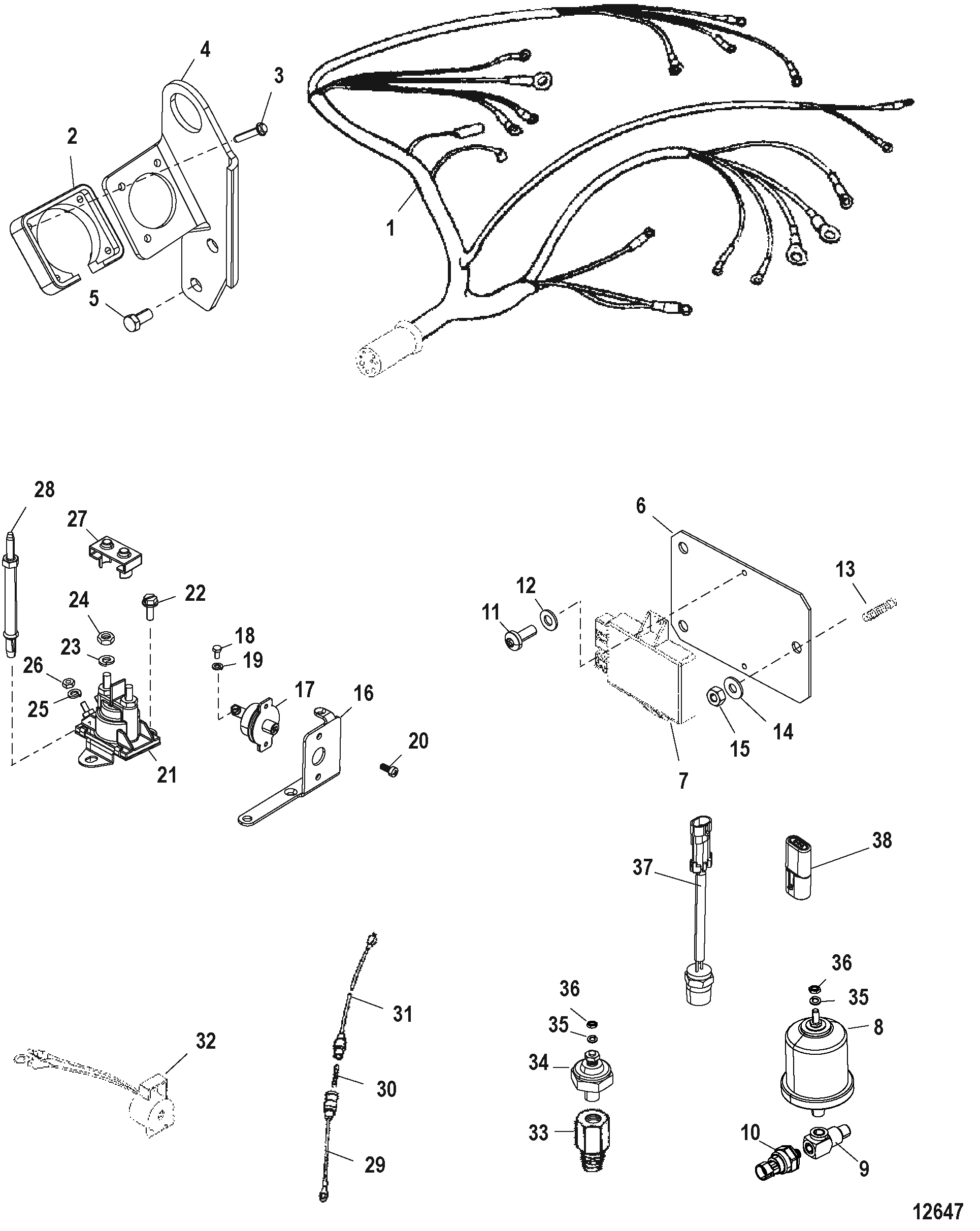

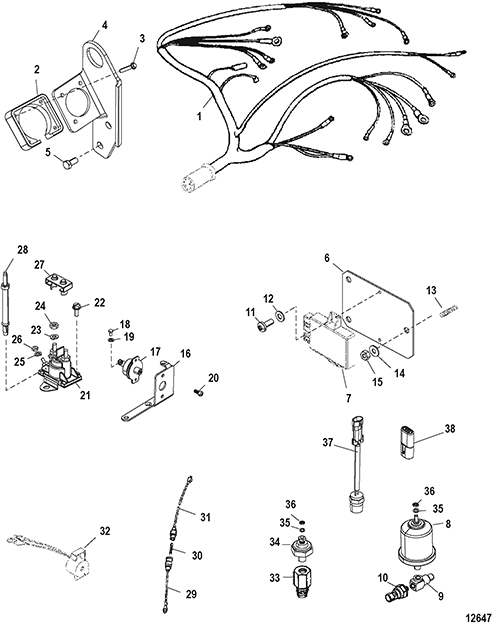

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0084 OEM: 525-84-862163T04 HARNESS ASSEMBLY Wiring   1
2 0000 OEM: 525-26079A2 PLATE KIT Wire Harness Mount   1
3 0010 OEM: 525-10-15001 SCREW (#8-16 x .875)   3
4 0000 807453T BRACKET Harness Mounting, Lifting Eye   1
5 0010 OEM: 525-10-98261 SCREW (.375-16 x .750)   2
6 0000 OEM: 525-861516 BRACKET   1
7 0000 OEM: 530-861251T1 ICM MODULE Ignition Control Module (Alpha) 1
7 0000 OEM: 525-861252T1 ICM MODULE Ignition Control Module (Bravo) 1
8 0000 815425T SENDER ASSEMBLY Oil   1
8 0000 OEM: 525-37293T SENDER ASSEMBLY Oil (Dual Station) 1
9 0022 OEM: 525-22-864669 FITTING   1
10 0087 864252 SWITCH   1
11 0010 OEM: 525-10-861520 SCREW (#10-32 x .500)   2
12 0012 OEM: 525-12-89302 WASHER (.203 x .406 x .040)   2
13 0010 OEM: 525-10-24323, GLM: 700-22336 SET SCREW (.250-20 x 1.25)   3
14 0012 OEM: 525-12-35462 WASHER (.2656 x .625 x .0625) Stainless Steel   3
15 0011 OEM: 525-11-64015 NUT (.250-20)   3
16 0000 805368T BRACKET Electrical Mounting   1
17 0088 806950 BREAKER Circuit - 50 Ampere   1
18 0010 OEM: 525-10-68513 SCREW (#10-32 x .375) Stainless Steel   2
19 0013 OEM: 525-13-26996 LOCKWASHER (#10) Stainless Steel   2
20 0010 57583 SCREW (#8-32 x .375)   2
21 0089 OEM: 530-96158T, Sierra: 676-18-5817, GLM: 700-72400 SOLENOID Starter   1
22 0010 OEM: 525-10-805564 SCREW (.250-20 x .750)   1
23 0013 OEM: 525-13-26992 LOCKWASHER (.250) Stainless Steel   2
24 0011 OEM: 525-11-94330 NUT (.250-20) Brass   2
25 0013 OEM: 525-13-26995 LOCKWASHER (#8) Stainless Steel   2
26 0011 OEM: 525-11-26419 NUT (#8-32) Brass   2
27 0085 OEM: 525-85-97861 INSULATOR Starter Solenoid   1
28 0016 OEM: 525-16-805459 STUD Mercathode Mounting   1
29 0084 OEM: 525-84-95084A10 CABLE ASSEMBLY (5.00 Inches) Red (Bravo) 1
30 0088 OEM: 525-88-79091 FUSE 20 Ampere (Bravo) 1
31 0084 OEM: 525-84-95084A9 CABLE ASSEMBLY (91.00 Inches) Red/Purple Strip (Bravo) 1
32 0000 OEM: 525-816492A6 ALARM KIT   1
33 0022 OEM: 525-22-32974 FITTING (.125-27) Adaptor   1
34 0087 OEM: 530-805605A1 SWITCH ASSEMBLY   1
35 0013 OEM: 525-13-26996 LOCKWASHER (#10) Stainless Steel   2
36 0011 OEM: 525-11-68219 NUT (#10-32) Stainless Steel   2
37 0087 OEM: 525-87-866089 THERMAL SWITCH (Normally Open 130-110 degrees) Turn Key Start   1
38 0083 OEM: 525-83-865913A01 DIODE ASSEMBLY   1
