| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

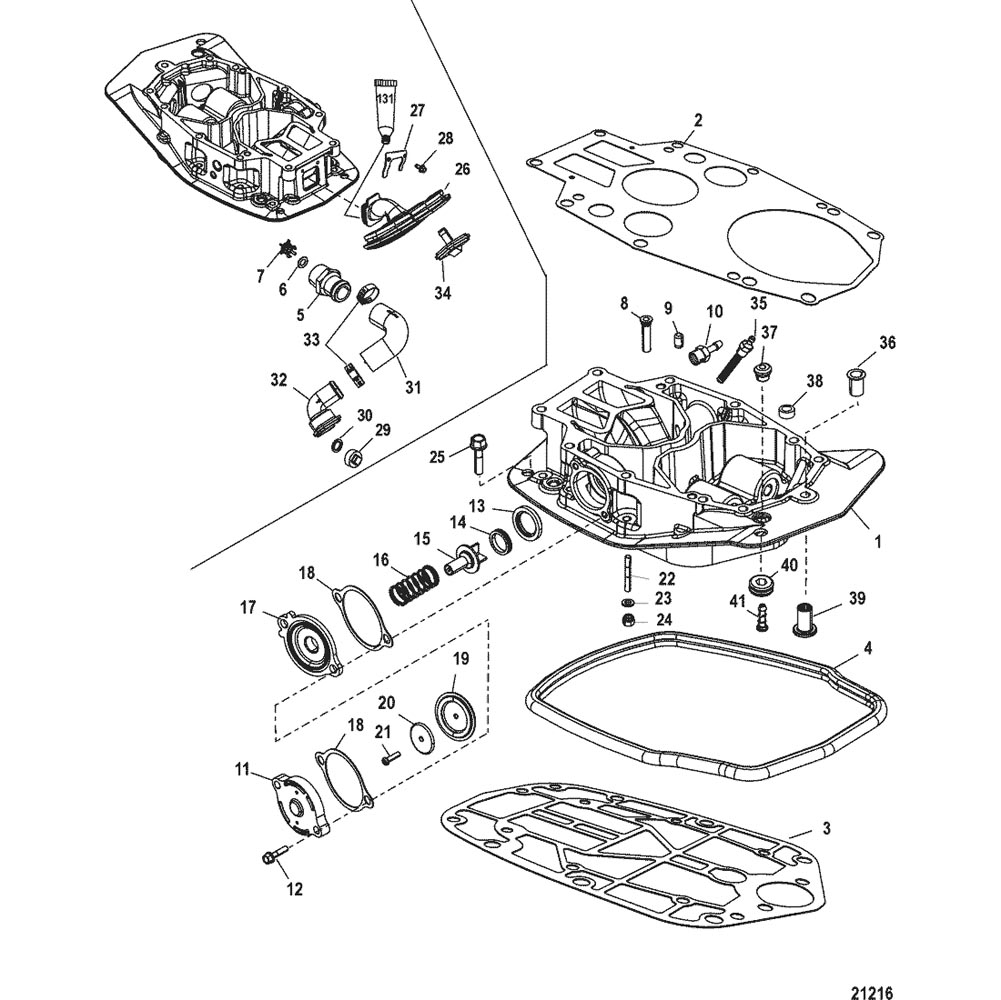

| 1 |
842777A19 |
|
|
|
|
PLATE ASSEMBLY, Exhaust |
1 |
|
|
| 2 |
27-832933006 |
|
|
|
|
GASKET |
1 |
|
|
| 3 |
27-832934006 |
|
|
|
|
GASKET (Lower) |
1 |
|
|
| 4 |
8M0043157 |
|
|
|
|
SEAL |
1 |
8238051 |
|
| - |
22-832076A1 |
|
|
|
|
FITTING ASSEMBLY, Flush |
1 |
|
|
| 5 |
22-8320761 |
|
|
|
|
FITTING, Check Valve |
1 |
|
|
| 6 |
25-30641 |
|
|
|
|
O-RING, (.299 x .103) |
1 |
|
|
| 7 |
8219631 |
|
|
|
|
CHECK VALVE |
1 |
|
|
| 8 |
21-817519A1 |
|
|
|
|
CHECK VALVE ASSEMBLY, Drain |
2 |
|
|
| 9 |
17-43044 |
|
|
|
|
PIN, Dowel - Without Hole (.375 x .625) |
4 |
|
|
| 10 |
22-828091 |
|
|
|
|
FITTING |
1 |
|
No Longer Available |
| 11 |
65663A2 |
|
|
|
|
COVER ASSEMBLY (Includes Reference #18) |
1 |
|
|
| 12 |
10-81893435 |
|
|
|
|
SCREW, (M8 x 35) |
2 |
|
|
| 13 |
814190 |
|
|
|
|
CARRIER |
1 |
|
|
| 14 |
25-814191 |
|
|
|
|
GROMMET |
1 |
|
|
| 15 |
814189 |
|
|
|
|
POPPET |
1 |
|
|
| 16 |
24-64878 |
|
|
|
|
SPRING, (Black) |
1 |
|
|
| 17 |
65664A1 |
|
|
|
|
PLATE ASSEMBLY |
1 |
|
|
| 18 |
27-88907003 |
|
|
|
|
GASKET |
2 |
|
|
| 19 |
648771 |
|
|
|
|
DIAPHRAGM |
1 |
|
|
| 20 |
12-76451 |
|
|
|
|
WASHER |
1 |
|
|
| 21 |
10-69570 |
|
|
|
|
SCREW, (#10-16 x .750) |
1 |
|
|
| 22 |
16-8M0035042 |
|
|
|
|
STUD, (M10 x 74) |
4 |
90350017 |
|
| 23 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
4 |
|
|
| 24 |
11-4013610 |
|
|
|
|
NUT, (M10) Stainless Steel |
4 |
|
|
| 25 |
10-81893435 |
|
|
|
|
SCREW, (M8 x 35) |
6 |
|
|
| 26 |
8503064 |
|
|
|
|
BOOT, Idle Exhaust |
1 |
|
|
| 27 |
8M0006756 |
|
|
|
|
PLATE |
1 |
|
|
| 28 |
10-82239312 |
|
|
|
|
SCREW, (M5 x 12) |
2 |
|
|
| 29 |
19-821908 |
|
|
|
|
PLUG |
1 |
|
|
| 30 |
12-821915 |
|
|
|
|
WASHER |
1 |
|
|
| 31 |
32-859626A1 |
|
|
|
|
FLUSH HOSE KIT (Inlet) |
1 |
|
|
| 32 |
22-8596001 |
|
|
|
|
FITTING |
1 |
|
|
| 33 |
54-850896 |
|
|
|
|
CLAMP, (28.6) |
2 |
|
|
| 34 |
8M0077650 |
|
|
|
|
FITTING, Tell-Tale |
1 |
821904 |
|
| 35 |
35-8348084 |
|
|
|
|
STRAINER |
1 |
|
|
| 36 |
23-48237 |
|
|
|
|
BUSHING |
1 |
|
|
| 37 |
25-12602002 |
|
|
|
|
GROMMET |
1 |
|
|
| 38 |
23-840193 |
|
|
|
|
SPACER |
2 |
|
|
| 39 |
43585 |
|
|
|
|
COUPLING |
1 |
|
|
| 40 |
25-822002 |
|
|
|
|
GROMMET |
1 |
|
|
| 41 |
22-94848 |
|
|
|
|
FITTING |
1 |
|
|
| - |
27-841220A03 |
|
|
|
|
GASKET SET, Powerhead |
1 |
|
|
