| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

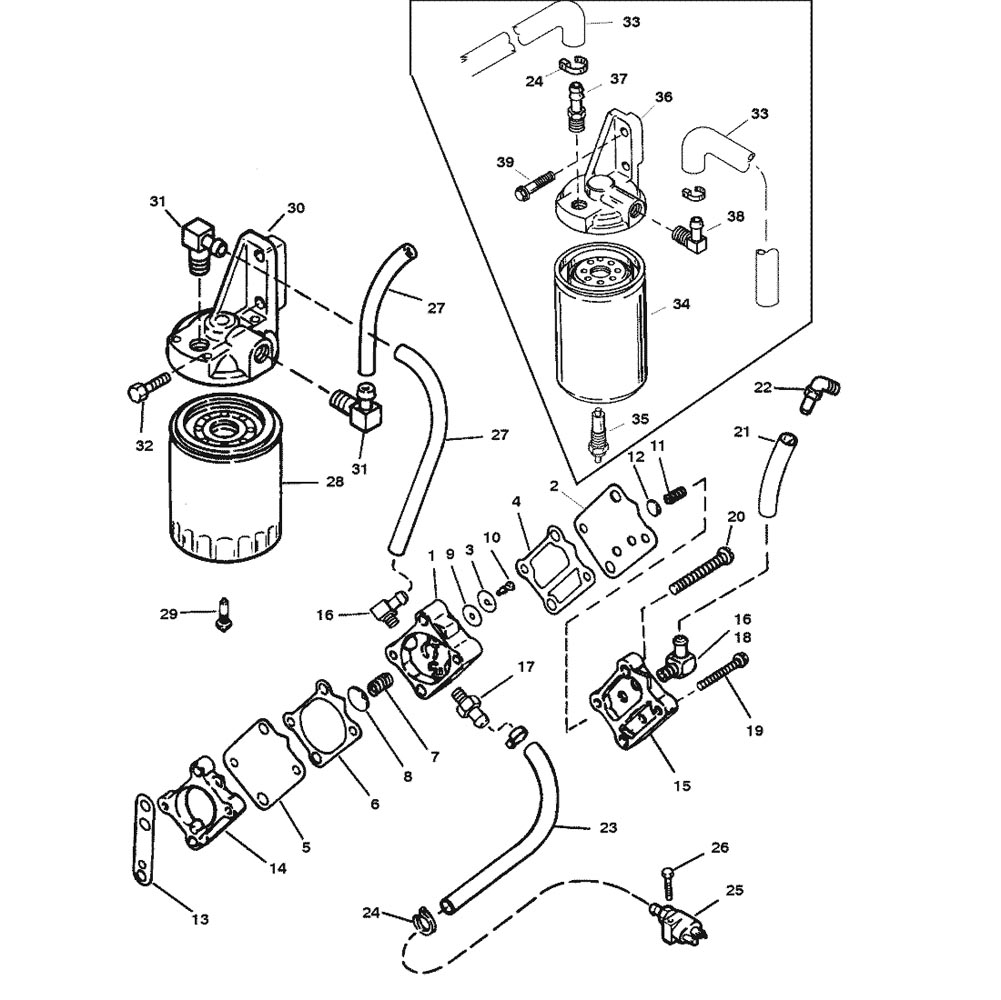

| 1 |
14360T75 |
|
|
|
|
FUEL PUMP ASSEMBLY |
1 |
14360A53 |
|
| 2 |
21-857005A1 |
|
|
|
|
DIAPHRAGM KIT |
1 |
42990A10 |
|
| 3 |
NSS |
|
|
|
|
CHECK VALVE-RUBBER |
2 |
|
Not Sold Separate |
| 4 |
NSS |
|
|
|
|
GASKET-BOOST |
1 |
|
Not Sold Separate |
| 5 |
NSS |
|
|
|
|
DIAPHRAGM |
2 |
|
Not Sold Separate |
| 6 |
NSS |
|
|
|
|
GASKET-PULSE |
1 |
|
Not Sold Separate |
| 7 |
NSS |
|
|
|
|
SPRING |
1 |
|
Not Sold Separate |
| 8 |
NSS |
|
|
|
|
CAP |
1 |
|
Not Sold Separate |
| 9 |
NSS |
|
|
|
|
CHECK VALVE |
2 |
|
Not Sold Separate |
| 10 |
NSS |
|
|
|
|
RETAINER |
2 |
|
Not Sold Separate |
| 11 |
NSS |
|
|
|
|
SPRING |
1 |
|
Not Sold Separate |
| 12 |
NSS |
|
|
|
|
CAP |
1 |
|
Not Sold Separate |
| 13 |
27-987691 |
|
|
|
|
GASKET-BASE |
1 |
|
|
| 14 |
144303 |
|
|
|
|
BASE-FUEL PUMP |
1 |
|
|
| 15 |
987752 |
|
|
|
|
PLATE-FUEL PUMP |
1 |
|
|
| 16 |
22-996642 |
|
|
|
|
ELBOW (1/4 IN. DIA. HOLE) |
1/2 |
99664 |
|
| 17 |
22-291112 |
|
|
|
|
FITTING |
1 |
29111 |
|
| 18 |
22-433351 |
|
|
|
|
CONNECTOR (90 DEGREES)(1/8 IN. DIA. HOLE) |
1 |
43335 |
|
| 19 |
10-82104540 |
|
|
|
|
SCREW-FUEL PUMP |
2 |
|
|
| 20 |
10-16452 |
|
|
|
|
SCREW-FUEL PUMP TO CRANKCASE |
2 |
|
|
| 21 |
32-9912878 |
|
|
|
|
TUBING (8 IN.) |
1 |
|
|
| 21 |
32-8M0108349 |
|
|
|
|
TUBING |
1 |
83075780 |
|
| 22 |
22-997511 |
|
|
|
|
ELBOW |
1 |
99751 |
|
| 23 |
32-8M0108349 |
|
|
|
|
TUBING |
1 |
83075780 |
|
| 24 |
54-816311T |
|
|
|
|
STA-STRAP-FUEL TUBING |
AR |
816311 |
|
| 25 |
22-816856Q3 |
|
|
|
|
FUEL CONNECTOR |
1 |
816856A3 |
|
| 26 |
10-69067 |
|
|
|
|
SCREW |
1 |
|
|
| 27 |
32-1350385 |
|
|
|
|
TUBING (15-1/2 IN.)(19 IN.) |
2 |
1350382 |
|
| 28 |
35-18458Q3 |
|
|
|
|
FUEL FILTER ASSEMBLY |
1 |
18458A3 |
|
| 29 |
14570 |
|
|
|
|
PROBE-WATER SENSING |
1 |
|
|
| 30 |
13170A3 |
|
|
|
|
FUEL FILTER BASE |
1 |
|
|
| 31 |
22-136071 |
|
|
|
|
FITTING |
2 |
13607 |
|
| 32 |
10-455611 |
|
|
|
|
SCREW (1/4-20 X 1-1/8 IN.) |
2 |
45561 |
|
| 33 |
32-1350385 |
|
|
|
|
TUBING (15-1/2 IN.)(19 IN.) |
2 |
1350382 |
|
| 34 |
35-18458Q4 |
|
|
|
|
FUEL FILTER ASSEMBLY |
1 |
18458A4 |
|
| 35 |
8285861 |
|
|
|
|
PROBE |
1 |
828586 |
|
| 36 |
13170A3 |
|
|
|
|
FUEL FILTER BASE |
1 |
|
|
| 37 |
22-89771Q2 |
|
|
|
|
CONNECTOR (STRAIGHT) |
1 |
89771 |
|
| 38 |
22-136071 |
|
|
|
|
ELBOW |
1 |
13607 |
|
| 39 |
10-455611 |
|
|
|
|
SCREW (1/4-20 X 1-1/8 IN.) |
2 |
45561 |
|
| - |
27-813859A95 |
|
|
|
|
GASKET SET |
1 |
|
|
| - |
809430T01 |
|
|
|
|
POWERHEAD |
1 |
809430A95 |
|
