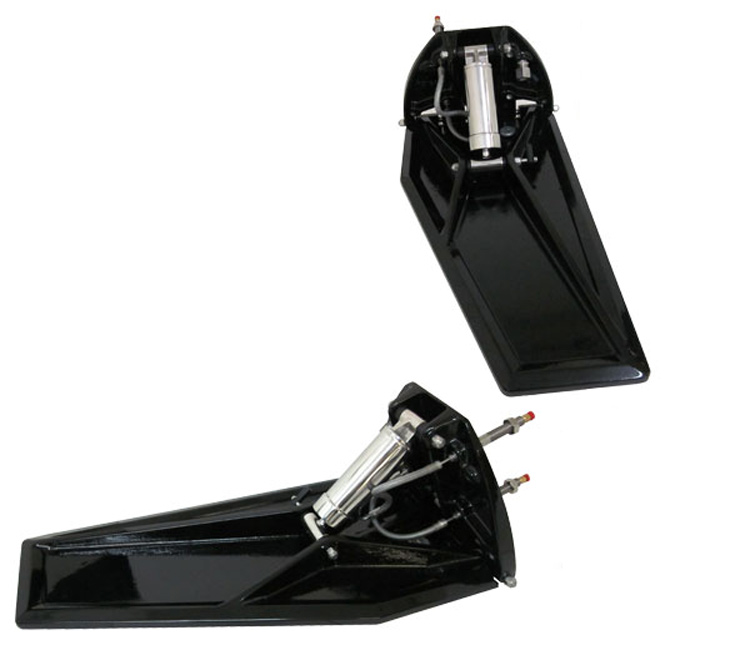

28" High Performance Model MH380ESX After-Plane Trim Tabs w/Electronic Sensors

  • Made from high strength 535 Aluminum Magnesium alloy.
  • All 316 Stainless Steel hardware.
  • 1-1/2" Piston bore.
  • Includes Electronic Sensors for the Mayfair LED Trim Indicator Systems
  • Two way hydraulics for improved performance.
  • Zinc Anodes to prevent corrosion.
  • Over 300 square inches of lift surface.
  • For 25-40 Ft. Boat Lengths
  • 85 lb. box, 36x16x12.
  • Black Standard Color
  • Custom Colors Available may take up to 2 weeks (Call for options)
  • NOTE: In order to complete this system to your Garmin, or other Smartcraft / NMEA2000 compatible screen you must purchase the 137-8659 adapter box.
  • NOTE: If not using a Smartcraft / NMEA2000 type screen display above, you must purchase a corresponding Mayfair Indicator System to display the position readout from your trim tabs.

Mayfair Hydraulics 28" High Performance After-Plane Trim Tab Kit

Mayfair Hydraulic's After-Planes are the very best, yet reasonably priced hydraulic trim tabs on the marine market today. Here are some of the features, unlike other planing devices. Mayfair Hydraulics After-Planes are manufactured from premium quality high strength aluminum alloy castings with deep-ribbed cross sections for additional strength and stress distribution. All of the external hardware is 316 series stainless steel or powder coated for increased corrosion resistance. Although transom stainless steel connections are an integral part of the Mayfair Hydraulics After-Planes, eliminating costly and bulky brackets and fittings. This results in a simpler, faster, and cleaner installation.

Each Mayfair Hydraulics After-Plane can be independently operated by dash-mounted controls. Because of the unique hydraulic system, there is no"droop" due to hydraulic leakage. The After-Planes will remain locked until the controls are again actuated. Mayfair Hydraulics After-Planes offer substantial advantages in performance, fuel economy, stability and handling. This package is for the tabs ONLY. No hoses, fittings or pumps are included.

3D Model Viewer:
Click Here to View 3D Model

Note: 3D Models are large files and make take a while to load especially on slow connections. 3D Model display requires a modern smartphone or desktop computer. Older devices may have poor performance.

Videos On This Product:
Specifications On This Product:

Dimensions:

Length: 28"
Width at Base: 14"
Width at Tip: 8"
Height: 10"

Installation Instructions
Reviews On This Product:
(0.00)stars out of 5
# of Ratings: 0

Making selections in the following sections may change the final product price.

Summary

  • Black
$4,250.00
$3,599.99
$3,599.99
137-8185BK
