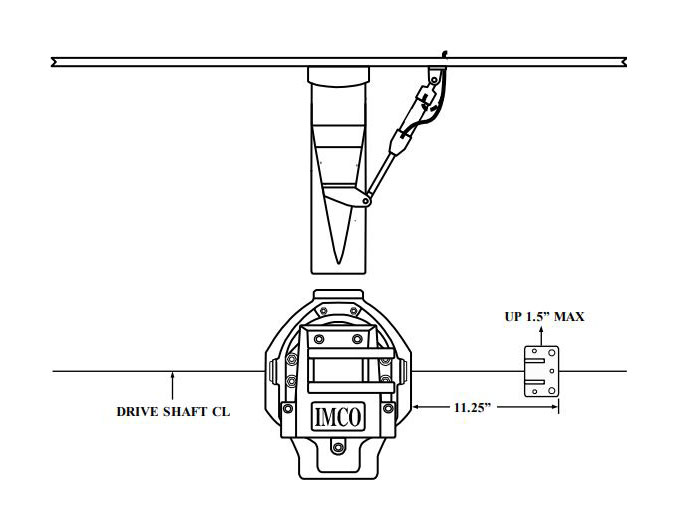

Steer Kit 1 Bravo, 1 Ram, 11.25” Transom Bracket Location


# PART NUMBER DESCRIPTION QTY.
2 421-FA-6 Adapter -6 JIC Swivel 90° 316 SS 2
3 421-HO-6 Hose Assembly -6 JIC x 18.000” Hose Length 20” End to End 2
4 421-SR-8-5-13 Ster Ram Assembly 1
5 421-AEC-1 Steer Cap Kit 1
6 421-TB-21 Transom Bracket Kit RH w/ Bulkhead Tubes 1
