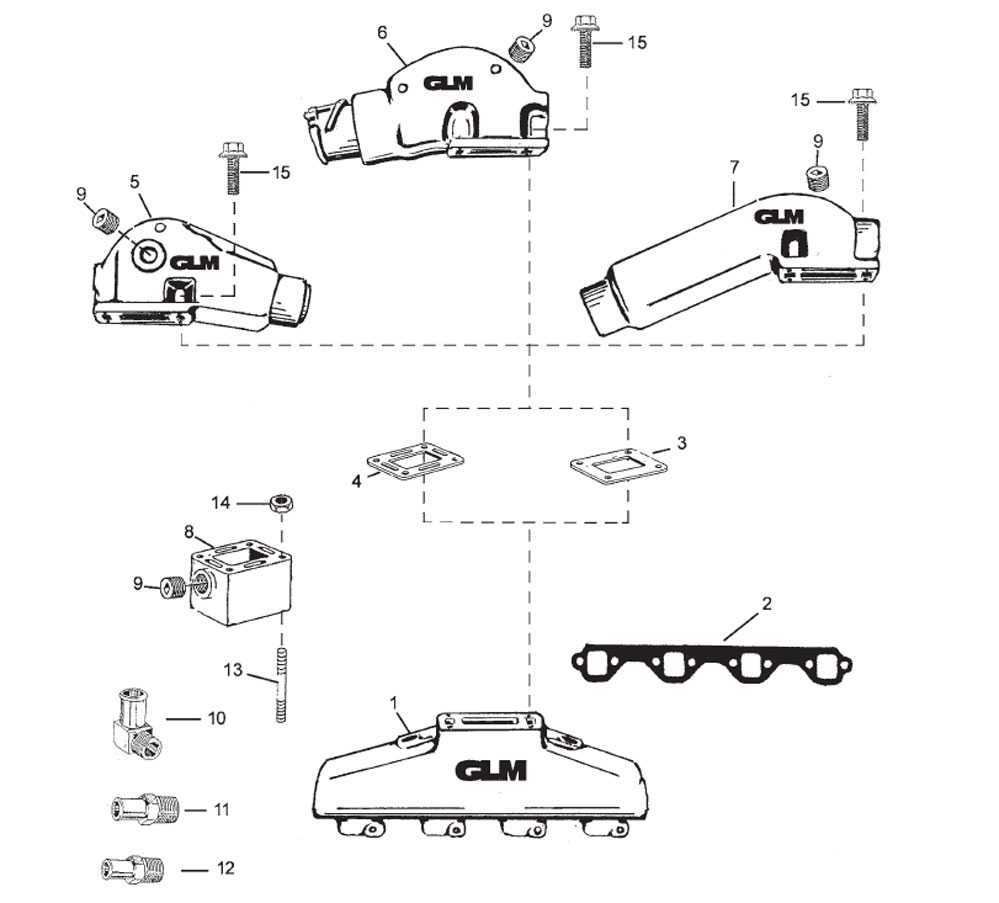

| Ref No. |
GLM No. |
OEM No. |
Description |
Qty. |
| 1 |
56250 |
FM-1-83 (Barr) |
Exhaust Manifold Assembly |
1 |
| |
|
53-2008 (Indmar) |
|
|
| 2 |
33790 |
- |
Gasket - Exhaust Manifold |
1 |
| 3 |
36820 |
1-0105 (Barr) |
Gasket - Exhaust Elbow |
1 |
| 4 |
36830 |
1-0107 (Barr) |
Gasket - Exhaust Elbow |
1 |
| 5 |
56110 |
20-0082(Barr) |
Exhaust Elbow 3" 10 Degree |
1 |
| 6 |
56140 |
20-0100 (Barr) |
Exhaust Elbow 4" 10 Degree |
1 |
| |
|
0992-593 (Indmar) |
|
|
| 7 |
56120 |
20-0102 (Barr) |
Exhaust Elbow 3" 30 Degree |
1 |
| |
|
53-2018 (Indmar) |
|
|
| 8 |
56030 |
20-0097 |
Spacer 3" |
1 |
| 9* |
21892 |
- |
Plug |
1 |
| 10 |
13960 |
- |
90 Degree Elbow Fitting 3/4 -14 x 1 |
1 |
| 11 |
13984 |
- |
Straight Fitting 3/4 -14 x 1 |
1 |
| 12 |
13986 |
- |
Straight Fitting 3/4 -14 x 3/4 |
1 |
| 13 |
22481 |
- |
Stud |
4 |
| 14 |
21248 |
- |
Nut |
4 |
| 15 |
22355 |
- |
Screw |
4 |
| * Included with Exhaust Elbows 56110, 56120 & 56140. |
| Plug also included with 3” Spacer 56030. |
