| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

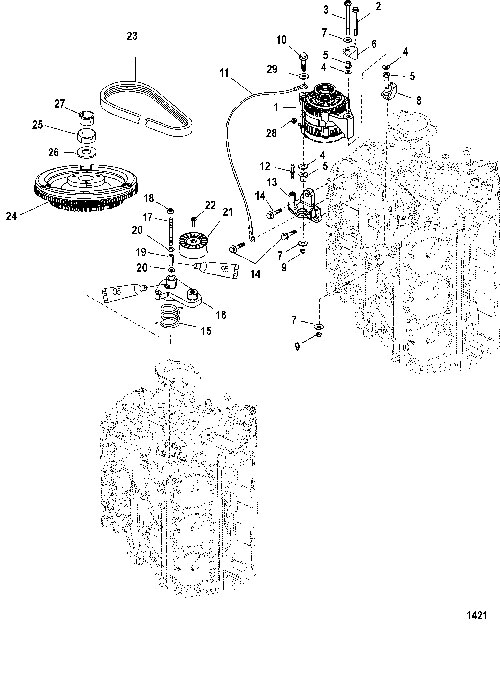

| 1 |
8M0064021 |
|
|
|
|
ALTERNATOR KIT |
1 |
889955A03 |
|
| 2 |
10-8M0012503 |
|
|
|
|
SCREW, (M10 x 1.5) |
1 |
|
|
| 3 |
10-40108120 |
|
|
|
|
SCREW, (M10 x 120) Hex Flange - Stainless Steel |
1 |
|
|
| 4 |
12-8M0042641 |
|
|
|
|
WASHER, (.390 x 1.00 x .06) |
3 |
|
|
| 5 |
23-856975 |
|
|
|
|
MOUNT |
3 |
|
|
| 6 |
858391T01 |
|
|
|
|
BRACKET |
1 |
|
|
| 7 |
12-845998 |
|
|
|
|
WASHER, (.406 x 1.250 x .089) |
3 |
|
|
| 8 |
858393T01 |
|
|
|
|
BRACKET |
1 |
|
|
| 9 |
11-826292 |
|
|
|
|
NUT, (M10) Brass/Nickel Plated |
2 |
|
|
| 10 |
10-82446155 |
|
|
|
|
SCREW, (M10 x 55) |
1 |
|
|
| 11 |
84-856583T2 |
|
|
|
|
CABLE ASSEMBLY |
1 |
|
|
| 12 |
8215832 |
|
|
|
|
PIN, Special (1.5 Inches) |
1 |
|
|
| 12 |
17-8M0042972 |
|
|
|
|
PIN, Special (1.75 Inches) |
1 |
|
|
| 13 |
857142T |
|
|
|
|
BRACKET |
1 |
|
|
| 14 |
10-812618 |
|
|
|
|
SCREW, (.312-18 x 1.00) Stainless Steel With Nylon Patch |
3 |
|
|
| 15 |
24-855798001 |
|
|
|
|
SPRING |
1 |
|
|
| 16 |
856815T2 |
|
|
|
|
ARM TENSIONER ASSEMBLY |
1 |
|
|
| 17 |
16-8M0034457 |
|
|
|
|
STUD, (M10 x 85) |
1 |
|
|
| 18 |
11-826292 |
|
|
|
|
NUT, (M10) Brass/Nickel Plated |
1 |
|
|
| 19 |
23-8568941 |
|
|
|
|
BUSHING |
1 |
|
|
| 20 |
12-4002320 |
|
|
|
|
WASHER |
2 |
|
|
| 21 |
852385A2 |
|
|
|
|
PULLEY ASSEMBLY |
1 |
|
|
| 22 |
10-4010835 |
|
|
|
|
SCREW, (M10 x 35) Hex Flange - Stainless Steel |
1 |
|
|
| 23 |
57-828507Q4 |
|
|
|
|
BELT |
1 |
|
|
| 24 |
281-859734T1 |
|
|
|
|
FLYWHEEL |
1 |
|
|
| 25 |
11-52901 |
|
|
|
|
NUT, (.625-18) |
1 |
|
|
| 26 |
12-33001 |
|
|
|
|
WASHER, (.641 x 1.250 x .190) |
1 |
68229 |
|
| 27 |
19-45907 |
|
|
|
|
PLUG, Yellow |
1 |
|
|
| 28 |
11-401386 |
|
|
|
|
NUT, (M6) Stainless Steel |
1 |
|
|
| 29 |
12-4002319 |
|
|
|
|
WASHER |
1 |
|
|
