150 VERADO 4-STROKE 4 CYL - Serial 0P419487 Thru 0P464487 - Transom Brackets

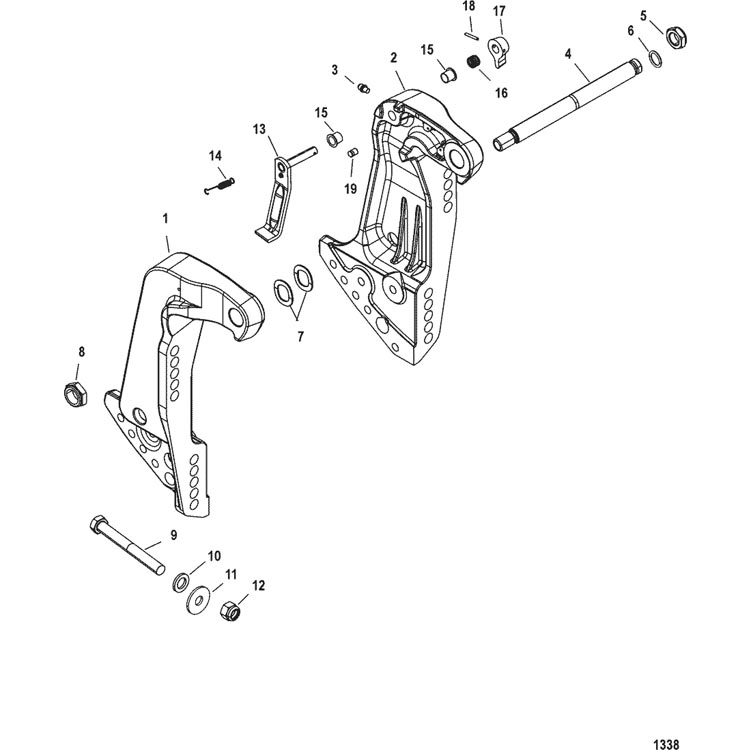

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Induction Components
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Powerhead Gasket Set Components
- Rear Cowl
- Shift Components(Serial Number 1B290522 and Below)
- Shift Components(Serial Number 1B290523 and Up)
- Starboard Cylinder Block/Oil Cooler
- Starter Motor
- Steering Cylinder Assembly
- SuperCharger
- Swivel Bracket and Steering Arm
- Tools
- Tools
- Top Cowl
- Transom Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 3426-828334T03 | BRACKET ASSEMBLY, Transom-Starboard | 1 | No Longer Available | |||||
| 2 | 3425-828333T08 | BRACKET ASSEMBLY, Transom-Port | 1 | No Longer Available | |||||
| 3 | 22-98727 | FITTING, Grease (PORT) | 1 | ||||||
| 4 | 826125A1 | TILT TUBE | 1 | ||||||
| 5 | 11-826135 | NUT, (1.00-14) Brass/Nickel Plate | 1 | ||||||
| 6 | 25-45711 | 676-9-76553 | O-RING, (.612 x .103) | 1 | |||||
| 7 | 13-88750 | WASHER | 2 | ||||||
| 8 | 11-826164 | NUT, (.875-14) | 1 | ||||||
| 9 | 10-677551 | SCREW, (.500-20 x 4.500) | 4 | ||||||
| 10 | 12-54012 | WASHER, (.530 x .870 x .105) Stainless Steel | 4 | ||||||
| 11 | 12-28421 | WASHER, (1.5 x 3.05 x 0.13) Stainless Steel | 4 | ||||||
| 12 | 11-82671117 | NUT, (.500-20) | 4 | ||||||
| 13 | 99629T2 | LEVER ASSEMBLY, Tilt Lock | 1 | ||||||
| 14 | 24-830899 | SPRING, Tension | 1 | ||||||
| 15 | 23-65830 | NYLINER | 2 | 23-29740 23-26850 |
|||||
| 16 | 24-830900 | SPRING, Compression | 1 | ||||||
| 17 | 99633 | KNOB | 1 | ||||||
| 18 | 17-99615 | PIN, Groove | 1 | 17-39049 | |||||
| 19 | 17-893709 | PIN | 1 | 99617 |
