Serial 0L302200 Thru 0M299999 - Wiring Harness(EFI) - Wiring Harness(Engine)

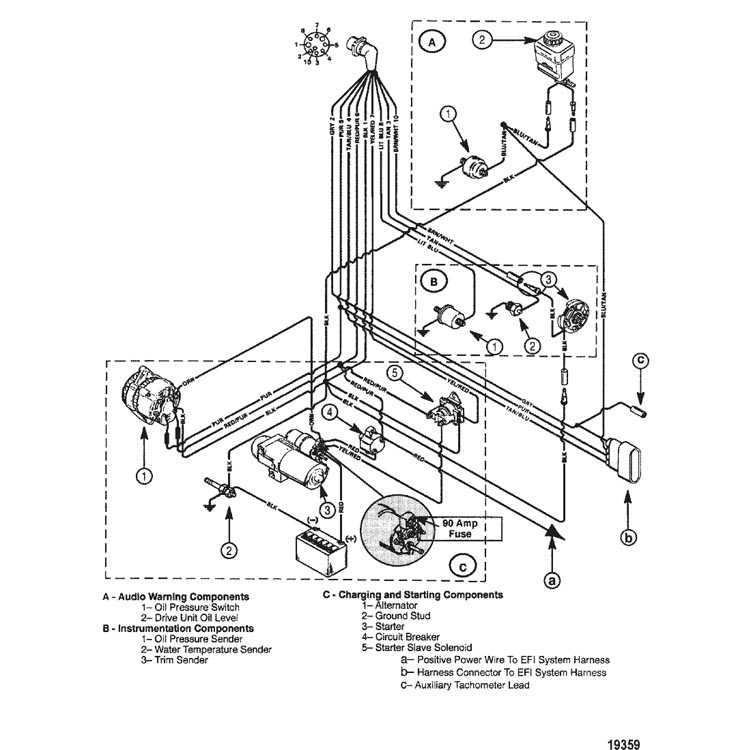

Section Drawing: (Hover or click to view larger)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 84-861819T1 | HARNESS ASSEMBLY, Engine | 1 | ||||||
| - | 84-862179T1 | HARNESS ASSEMBLY, Engine | 1 |
