Serial 0L302200 Thru 0M299999 - Transmission (V-Drive) (Hurth 630) - Transmission (V-Drive)(Hurth 630)

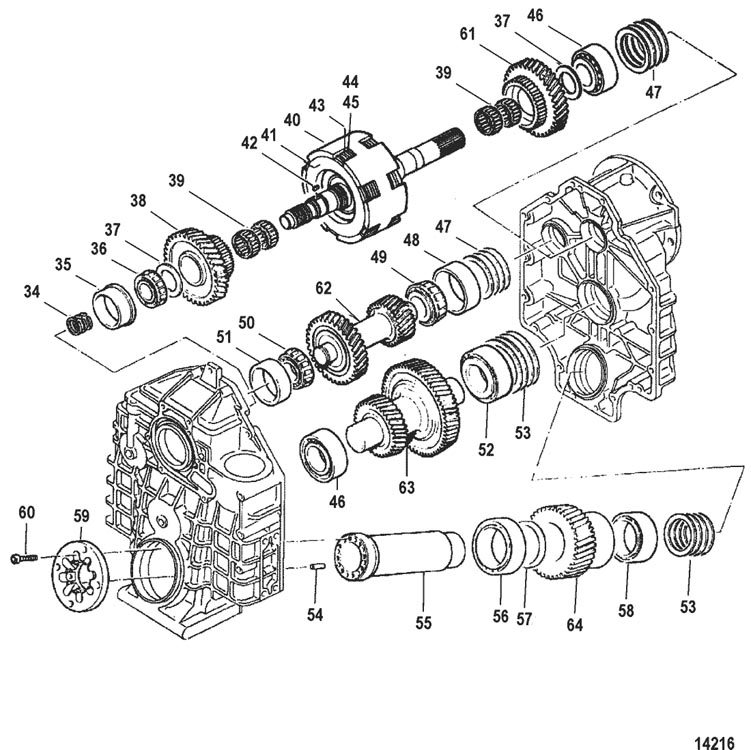

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 863745T2         TRANSMISSION, (1.5:1 Ratio) 1 814437A1
- 863745T3         TRANSMISSION, (2.0:1 Ratio) 1 814438A1
- 863745T4         TRANSMISSION, (2.5:1 Ratio) 1 814439A1
34 53-813321         RING 3   No Longer Available
35 31-811970         BEARING, Tapered Roller Cup 1   No Longer Available
36 31-811969         BEARING, Tapered Roller Cone 1   No Longer Available
37 12-811967         WASHER 2   No Longer Available
38 43-813308         GEAR 1   No Longer Available
39 31-813307         BEARING, Roller 4   No Longer Available
40 813306         SHAFT, Input 1   No Longer Available
41 813322         PRESSURE DISC 2   No Longer Available
42 28-813313         KEY 1   No Longer Available
43 53-813321         RING 2   No Longer Available
44 913319         DISC 8
45 913320         DISC 10
46 30-811968         BEARING, Ball 2   No Longer Available
47 15-813315         SHIM, (.10 mm) 1   No Longer Available
47 15-813316         SHIM, (.15 mm) 1   No Longer Available
47 15-813317         SHIM, (.20 mm) 1   No Longer Available
47 15-813318         SHIM, (.50 mm) 1   No Longer Available
48 31-811979         Tapered Roller Cup Bearing 1   No Longer Available
49 31-811978         Tapered Roller Cone Bearing 1   No Longer Available
50 31-811971         Tapered Roller Cone Bearing 1   No Longer Available
51 31-811977         Tapered Roller Cup Bearing 1   No Longer Available
52 31-811972         Tapered Roller Bearing 1   No Longer Available
53 15-811973         SHIM (.10 MM) 2   No Longer Available
53 15-811974         SHIM (.15 MM) 2   No Longer Available
53 15-811975         SHIM (.30 MM) 2   No Longer Available
53 15-811976         SHIM (.50 MM) 2   No Longer Available
54 17-811984         PIN, Dowel 4   No Longer Available
55 811980         SHAFT, Output 1   No Longer Available
56 31-811985         BEARING, Tapered Roller 1   No Longer Available
57 12-811981         WASHER 1   No Longer Available
58 31-811986         BEARING, Tapered Roller 1   No Longer Available
59 811982         FLANGE 1
60 10-811983         SCREW 8   No Longer Available
61 43-811987         GEAR 1   No Longer Available
61 43-811949         GEAR 1   No Longer Available
61 43-811949         GEAR 1   No Longer Available
62 811951         SHAFT, Reversing 1   No Longer Available
62 811947         SHAFT, Reversing 1   No Longer Available
62 811947         SHAFT, Reversing 1   No Longer Available
63 811952         SHAFT, Intermediate 1   No Longer Available
63 811948         SHAFT, Intermediate 1   No Longer Available
63 811946         SHAFT, Intermediate 1   No Longer Available
64 43-811950         GEAR 1   No Longer Available
64 43-811950         GEAR 1   No Longer Available
64 43-811945         GEAR 1   No Longer Available
