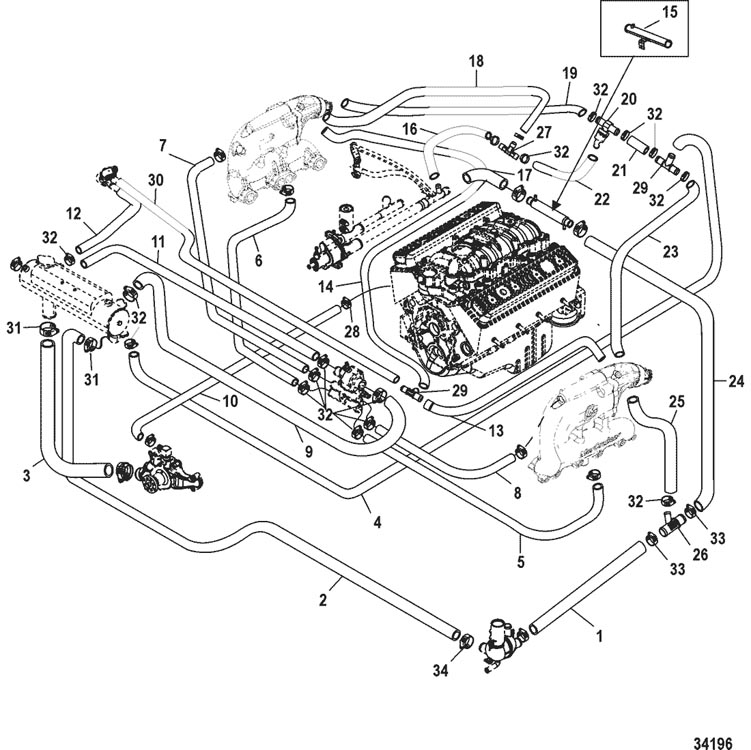

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
32-866331 |
|
|
|
|
HOSE, Distribution Housing to Drain Fitting |
1 |
|
|
| 1 |
32-8M2007277 |
|
|
|
|
HOSE, Distribution Housing to Drain Fitting |
1 |
|
Axius |
| 2 |
32-864431 |
|
|
|
|
HOSE, Distribution Housing to Heat Exchanger |
1 |
|
|
| 3 |
32-864886 |
|
|
|
|
HOSE, Heat Exchanger to Circulating Pump |
1 |
|
|
| 4 |
32-8M2012180 |
|
|
|
|
HOSE, Heat Exchanger to Tee Fitting |
1 |
|
|
| 5 |
32-864508 |
|
|
|
|
HOSE, Thermostat Housing to Lower Manifold, Port |
1 |
|
|
| 6 |
32-864509 |
|
|
|
|
HOSE, Thermostat Housing to Lower Manifold, Starboard |
1 |
|
|
| 7 |
32-8M2013803 |
|
|
|
|
HOSE, Thermostat Housing to Upper Manifold, Starboard |
1 |
|
|
| 7 |
32-8M2000468 |
|
|
|
|
HOSE, Thermostat Housing to Upper Manifold, Starboard |
1 |
|
Axius |
| 8 |
32-8M2000464 |
|
|
|
|
HOSE, Thermostat Housing to Upper Manifold, Port |
1 |
|
|
| 9 |
32-864506 |
|
|
|
|
HOSE, Thermostat Housing to Heat Exchanger |
1 |
|
|
| 10 |
32-864551 |
|
|
|
|
HOSE, Intake Bypass to Circulating Pump |
1 |
|
|
| 11 |
32-864507 |
|
|
|
|
HOSE, Thermostat Housing to Heat Exchanger |
1 |
|
|
| 12 |
32-8M2013831 |
|
|
|
|
HOSE, Poppet to Heat Exchanger |
1 |
|
|
| 13 |
32-8M2013791 |
|
|
|
|
HOSE, Tee Fitting to Port Elbow |
1 |
|
|
| 14 |
32-8M2013890 |
|
|
|
|
HOSE, Tee Fitting to Starboard Elbow |
1 |
|
|
| 15 |
863841T |
|
|
|
|
TUBE, Water |
1 |
|
|
| 16 |
32-8M2012446 |
|
|
|
|
HOSE, Fitting to Fitting |
1 |
|
|
| 17 |
32-865235 |
|
|
|
|
HOSE, Water Orifice to Cooler |
1 |
|
|
| 18 |
32-4285069 |
|
|
|
|
HOSE, (44.00 Inches Bulk), Tee Fitting to Starboard Elbow |
1 |
|
Cut to 8 Inches |
| 19 |
32-8M2012182 |
|
|
|
|
HOSE, Fitting Assembly to Starboard Elbow |
1 |
|
|
| 19 |
32-8M2014806 |
|
|
|
|
HOSE, Fitting to Starboard Elbow |
1 |
|
Axius |
| 20 |
22-8M2012295 |
|
|
|
|
FITTING ASSEMBLY |
1 |
|
|
| 21 |
32-8M0062614 |
|
|
|
|
HOSE, (48.00 Inches Bulk), Fitting Assembly to Tee Fitting |
1 |
32-3322070 |
Cut to 3 Inches |
| 21 |
8M2014440 |
|
|
|
|
HOSE, Fitting Assembly to Tee Fitting |
1 |
|
Axius |
| 22 |
32-4285069 |
|
|
|
|
HOSE, (44.00 Inches Bulk), Tee Fitting to Fitting Assembly |
1 |
|
Cut to 6 Inches |
| 22 |
32-4285069 |
|
|
|
|
HOSE, (44.00 Inches Bulk), Tee Fitting to Fitting Assembly |
1 |
|
Cut to 4.38 Inches, Axius |
| 23 |
32-8M2012181 |
|
|
|
|
HOSE, Tee Fitting to Port Elbow |
1 |
|
|
| 23 |
32-8M2014805 |
|
|
|
|
HOSE, Tee Fitting to Port Elbow |
1 |
|
Axius |
| 24 |
32-865255 |
|
|
|
|
HOSE, Y- Fitting to Cooler |
1 |
|
|
| 24 |
32-8M2014783 |
|
|
|
|
HOSE, Tube to Y-Fitting |
1 |
|
Axius |
| 25 |
32-4285069 |
|
|
|
|
HOSE, (44.00 Inches Bulk), Fitting to Port Elbow |
1 |
|
Cut to 26 Inches |
| 25 |
32-4285069 |
|
|
|
|
HOSE, (44.00 Inches Bulk), Fitting to Drain Fitting |
1 |
|
Cut to Fit |
| 26 |
22-862993 |
|
|
|
|
FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb |
1 |
|
|
| 27 |
22-8M0065823 |
|
|
|
|
FITTING ASSEMBLY |
1 |
22-863464A1 |
|
| 28 |
54-815504212 |
|
|
|
|
CLAMP, Worm Gear |
1 |
|
|
| 29 |
22-863478 |
|
|
|
|
FITTING, Tee |
12 |
|
|
| 30 |
8M2014437 |
|
|
|
|
HOSE, Fitting to Poppet |
1 |
|
|
| 31 |
54-815504232 |
|
|
|
|
CLAMP, Worm Gear |
1 |
54-8M2001490 |
|
| 32 |
54-815504216 |
|
|
|
|
CLAMP, Worm Gear (1.56 Diameter) |
AR |
|
|
| 33 |
54-815504228 |
|
|
|
|
CLAMP, Worm Gear |
AR |
|
|
| 34 |
54-815504232 |
|
|
|
|
CLAMP, Worm Gear |
2 |
54-8M2001490 |
|
| - |
879172A16 |
|
|
|
|
HOSE ASSEMBLY, Supplemental |
1 |
|
MCM/MIE Inline |
