425 (Gen 5) GM 454 V8 1992-1993 - Serial 0A398941 Thru 0D937011 - Starter And Alternator Mounting

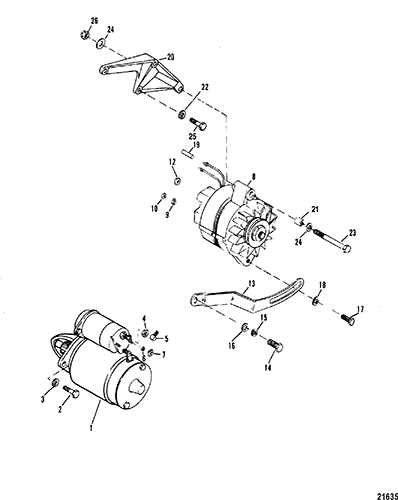

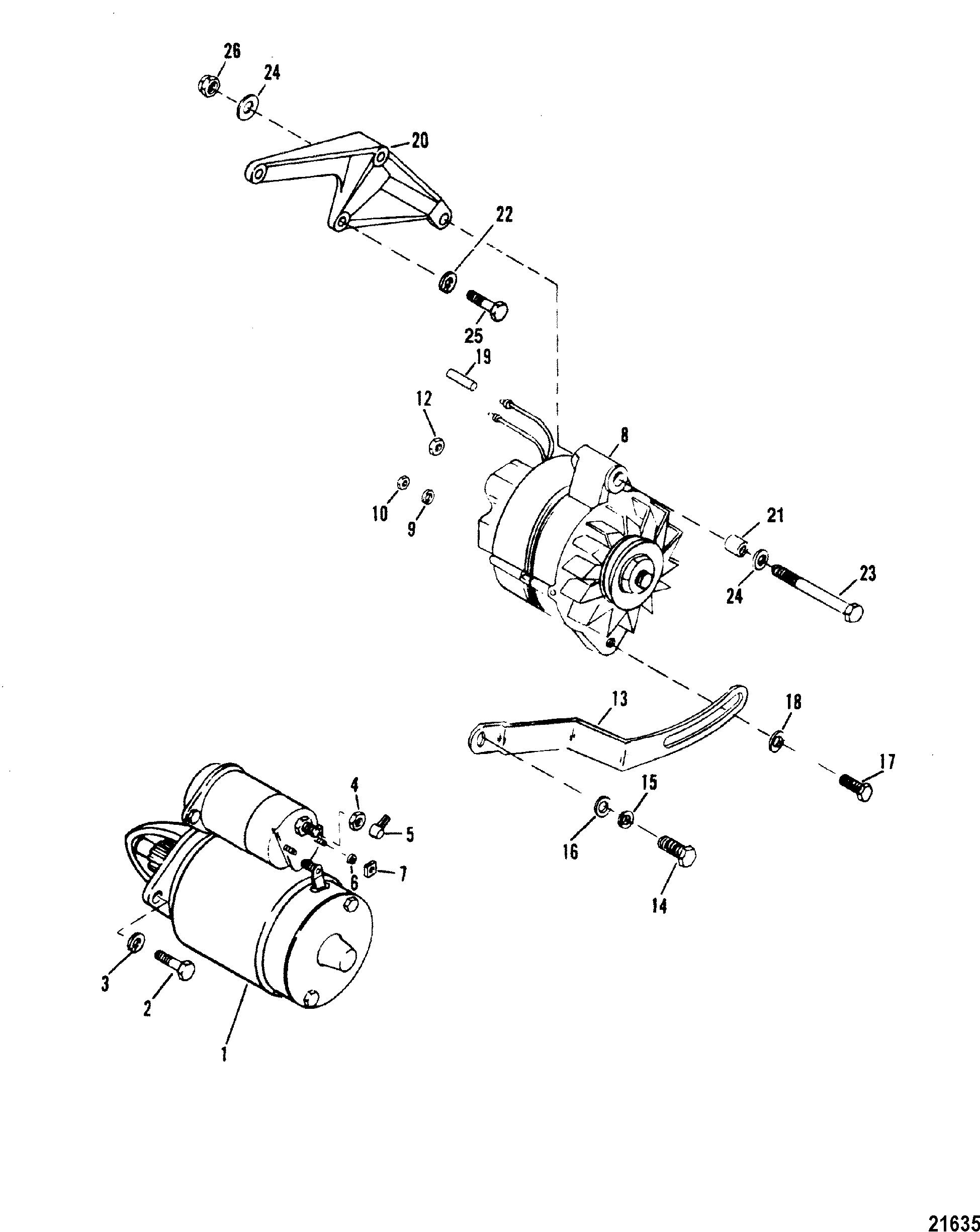

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 50-808011A05         STARTER MOTOR ASSEMBLY 1 50-17251A3 Components Of Gasket Sets [27- 13218A 1] / [27-808730A92]
2 10-47461         SCREW, (.437-14 x 1.00) 2
Component Of Gasket Set [27- 13218A 1]
3 13-32993         LOCKWASHER, (.437) 2
Component Of Gasket Set [27-808730A92]
4 11-86226         NUT, (.375-16) 1

4 11-4013610         NUT, (M10) (M10) 1 11-400266
5 85-79695T         BOOT, Insulator - Black 1 85-79695
6 13-26995         LOCKWASHER, (#8) Stainless Steel 1

6 13-26996         LOCKWASHER, (#10) Stainless Steel 1

7 11-26419         NUT, (#8-32) Brass 1

7 11-400211         NUT, (M5) Stainless Steel 1

8 817119A4 620-3186M 676-9-19101     ALTERNATOR 1

9 13-26996         LOCKWASHER, (#10) Stainless Steel 1

10 11-79989         NUT, (#10-24) Stainless Steel 1

12 11-20890         NUT, (.250-20) 1

13 85013T         BRACE, Alternator Adjusting 1

14 10-47461         SCREW, (.437-14 x 1.00) 1

15 13-32993         LOCKWASHER, (.437) 1

16 12-27025         WASHER 1

17 10-29198         SCREW AND LOCKWASHER, (.312-18 x .875) 1

18 12-26168         WASHER 1

19 5790811         SLEEVE, (10.00 Inches Bulk), Cut As Required 1

20 806394A1         BRACKET 1

20 815251T1         BRACKET ASSEMBLY 1 815251A1 This Part is No Longer Available Gil Exhaust System With Mando Alternator
21 23-33186         BUSHING 1

22 13-35048         LOCKWASHER, (.375) 3

23 10-48308         SCREW, (.375-24 x 3.750) 1

24 12-20553         WASHER, (.406 x .734 x .063) 3

25 10-37612         SCREW, (.375-16 x 1.250) 1

25 10-34353         SCREW, (.375-16 x 1.00) 2

26 11-23161         NUT, (.375-24) 1
