| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

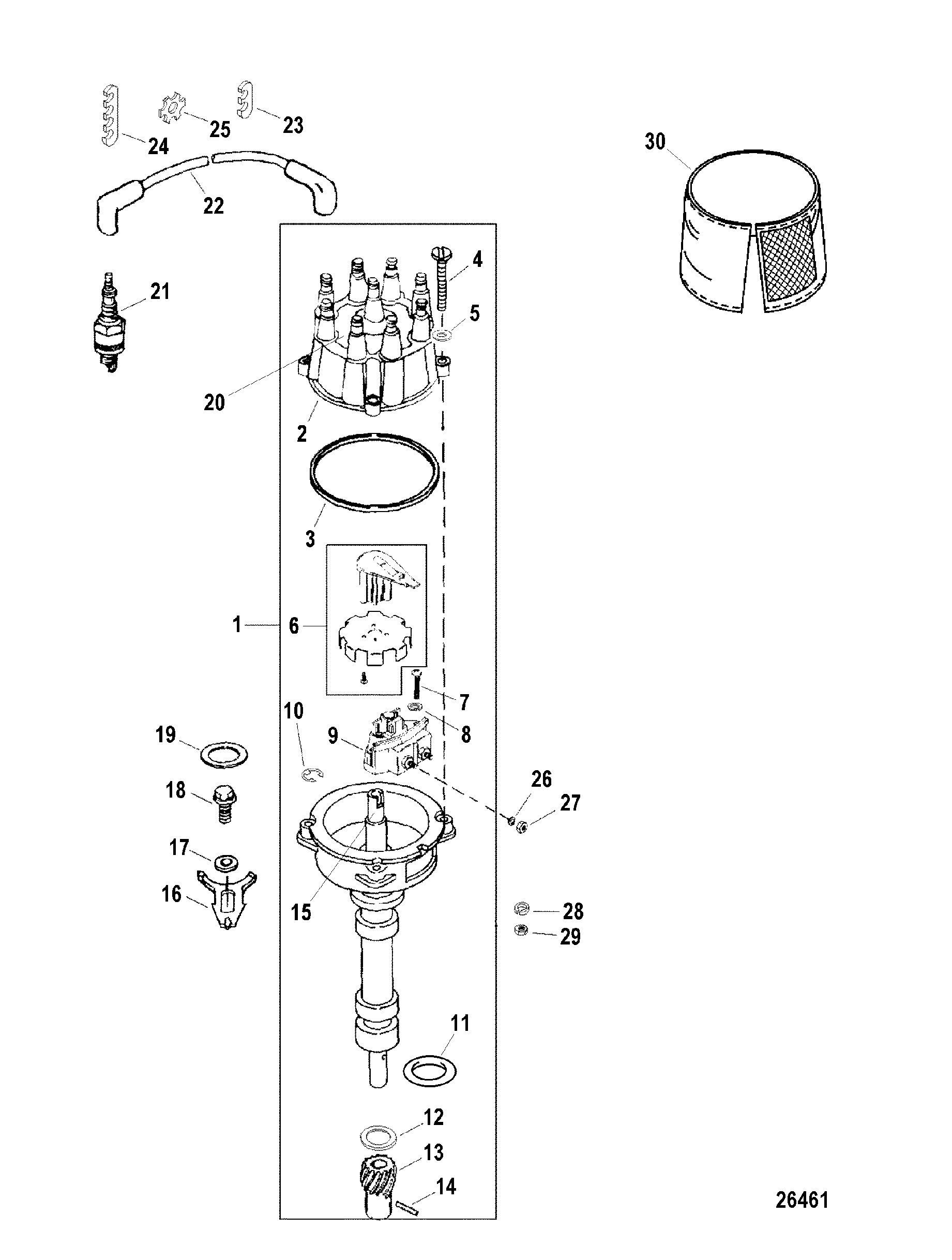

| 1 |
805185A29 |
|
|
|
|
DISTRIBUTOR ASSEMBLY |
1 |
|
This Part is No Longer Available |
| 2 |
805759T1 |
|
|
|
|
CAP ASSEMBLY |
1 |
805759T2 |
|
| 3 |
27-805760 |
|
|
|
|
GASKET, Distributor Cap |
1 |
|
2 |
| 4 |
10-848523 |
|
|
|
|
SCREW (#10-32 x .812) |
4 |
|
|
| 5 |
12-30164 |
|
|
|
|
WASHER, (.192 x .375 x .0312) Stainless Steel |
4 |
|
|
| 6 |
8M0050393 |
|
|
|
|
ROTOR ASSEMBLY |
1 |
13524A7 |
|
| 7 |
10-66686 |
|
|
|
|
SCREW, (#10-32 x 1.00) |
1 |
|
|
| 7 |
10-72202 |
|
|
|
|
SCREW, (#10-32 x 1.25) |
1 |
|
|
| 8 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
2 |
|
|
| 9 |
87-892150Q02 |
|
|
|
|
SENSOR ASSEMBLY |
1 |
87-861780Q4 |
|
| 10 |
53-90916 |
|
|
|
|
RING, Retaining |
1 |
|
|
| 11 |
25-23145 |
|
|
|
|
O-RING, (.984 x .139) |
1 |
|
2 |
| 12 |
12-90931 |
|
|
|
|
THRUST WASHER |
1 |
|
|
| 13 |
43-8188071 |
|
|
|
|
GEAR, Drive |
1 |
|
|
| 14 |
17-47617 |
|
|
|
|
PIN, Roll |
1 |
|
|
| 15 |
806334 |
|
|
|
|
SHAFT |
1 |
|
|
| 16 |
52185 |
|
|
|
|
CLAMP |
1 |
|
|
| 17 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
1 |
|
|
| 18 |
10-805559 |
|
|
|
|
SCREW, (.375-16 x .875) Stainless Steel |
1 |
|
|
| 19 |
27-344863 |
|
|
|
|
GASKET |
1 |
|
2 |
| 20 |
37-92155 |
|
|
|
|
DECAL, Firing Order - Distributor Cap |
1 |
|
|
| 21 |
33-849704 |
|
|
|
|
SPARK PLUG |
8 |
|
|
| 22 |
84-93529A51 |
|
|
|
|
CABLE SET, Ignition - Blue |
1 |
|
|
| 23 |
54676 |
|
|
|
|
RETAINER, Two Wire |
2 |
|
|
| 24 |
32783 |
|
|
|
|
RETAINER, Three Wire |
2 |
|
|
| 25 |
32784 |
|
|
|
|
RETAINER, Four Wire |
4 |
|
|
| 26 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
2 |
|
|
| 27 |
11-68219 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
2 |
|
|
| 28 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel, Ground Wire |
1 |
|
|
| 29 |
11-68219 |
|
|
|
|
NUT, (#10-32) Stainless Steel, Ground Wire |
1 |
|
|
| 30 |
848253 |
|
|
|
|
COVER, Distributor |
1 |
|
This Part is No Longer Available |
| - |
27-840277A1 |
|
|
|
|
GASKET/SEAL SET, Engine Overhaul |
1 |
|
This Part is No Longer Available |
