850 SCi - Serial 0M952900 Thru 0M956316 - Engine Components (Cylinder Block)

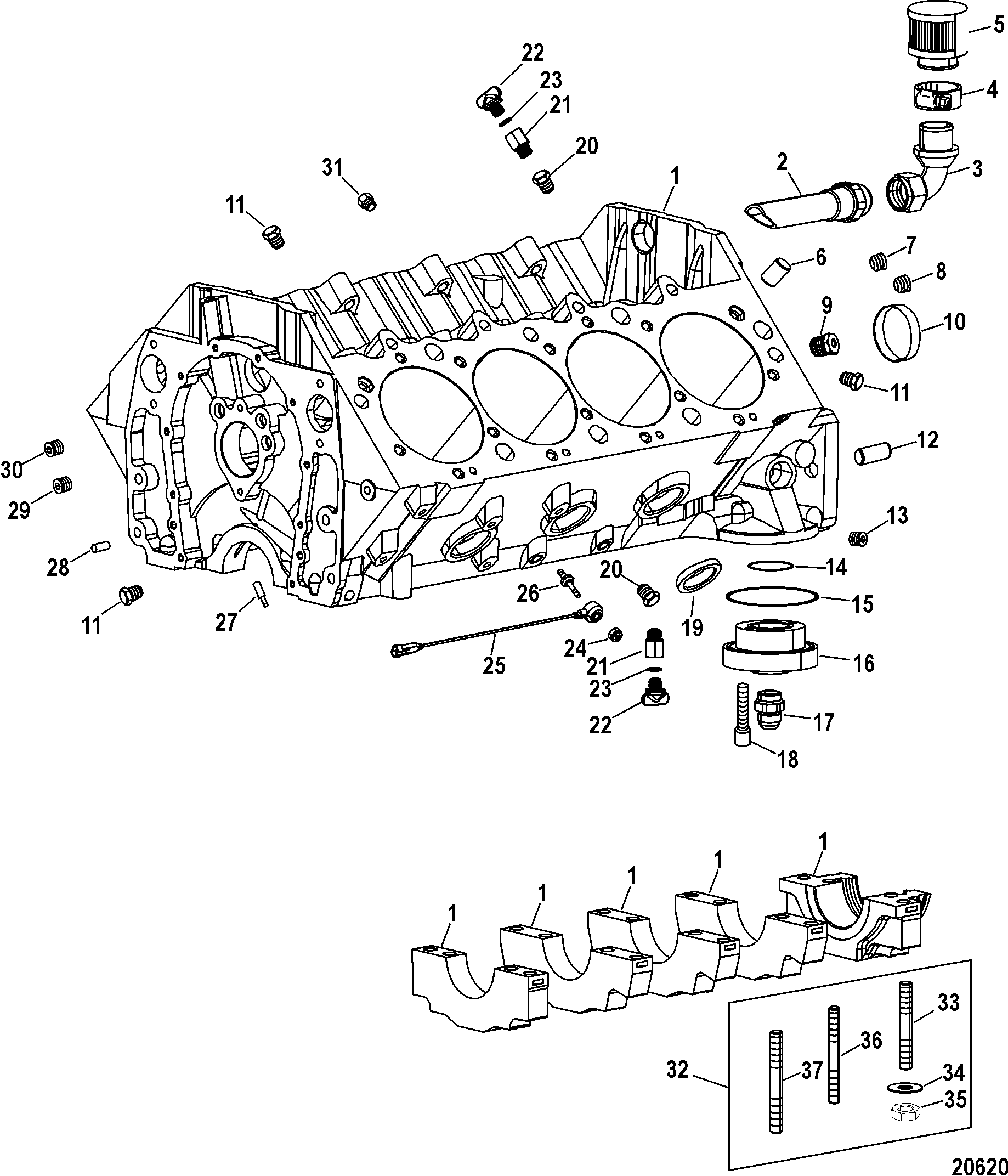

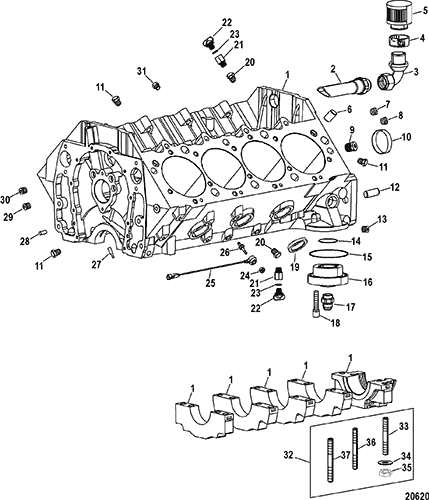

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Sea Water Pump Mounting (Design I)
- Alternator And Sea Water Pump Mounting (Design II)
- Cooling (Water Hoses And Fittings - Port)
- Cooling (Water Hoses And Fittings - Starboard)
- Cooling Components (Sea Water Pump - Design I)
- Cooling Components (Sea Water Pump - Design II)
- Cooling Components (Water Thermostat Housing)
- Electrical Components (Ignition Coils)
- Electrical Components (Mounting Box)
- Electrical Components (Starter)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block)
- Engine Components (Cylinder Head)
- Engine Components (Front Cover And Camshaft)
- Engine Components (Water Inlet And Drive Belt)
- Engine Components (Water Pump)
- Filter Kit (Remote) (Water - Fuel Separating)
- Flywheel Housing And Components
- Fuel Line Components (Design I)
- Fuel Line Components (Design II)
- Fuel Pump (Remote)
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-842593A01)
- Intake Components (Air Plenum And Flame Arrestor)
- Intake Components (Boost Valve)
- Intake Components (Manifold)
- Intake Components (Supercharger)
- Intake Components (Water Intercooler)
- Mount Plates (Engine)(Design I)
- Mount Plates (Engine)(Design II)
- Oil Cooler - Transmission
- Oil Filter Adaptor And Components
- Oil Hoses And Fittings (Port Side View)
- Oil Hoses And Fittings (Starboard Side View)
- Oil Pan And Oil Pump
- Oil Tank And Breather Assembly (Remote)
- Power-Assisted Steering Components (Design I)
- Power-Assisted Steering Components (Design II)
- Power-Assisted Steering Components (Design III)
- Power-Assisted Steering Components (Design IV)
- Reservoir Bottle (Transmission Fluid)
- Rigging Kit (Dual Engines)
- Rigging Kit (Quad Engines)
- Rigging Kit (Single Engine)
- Tool List (Special - Engine)
- Transmission (BAM Driveline Models)
- Transmission (BAM Plug In Models)
- Transmission (HUBER Driveline Models)
- Transmission (HUBER Plug In Models)
- Transmission Components (Plug In Models)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 841000A17 | PARTIAL ENGINE ASSEMBLY | 1 | ||||||
| 2 | 8M0050950 | TUBE, Breather | 1 | 841852 | 5 | ||||
| 3 | 22-840016 | FITTING, Adaptor Breather Tube | 1 | ||||||
| 4 | 54-180766 | CLAMP, Worm Gear | 1 | ||||||
| 5 | 8M0050927 | BREATHER ASSEMBLY | 1 | 818733 | |||||
| 6 | 17-845758 | PIN, Dowel | 4 | 5 | |||||
| 7 | 22-32561 | PLUG, Pipe - Allen Head (.250-18) | 1 | 5 | |||||
| 8 | 22-47540 | PLUG, Pipe - Allen Head (.375-18) | 2 | 5 | |||||
| 9 | 22-36492 | BUSHING, Reducer | 1 | 5 | |||||
| 10 | 19-94140 | EXPANSION PLUG, Camshaft | 1 | 5 | |||||
| 11 | 22-36382 | 700-21887 | FITTING, (.250-18 x .62) Brass | 3 | 5 | ||||
| 12 | 17-843379 | PIN, Dowel (.6206/.6211 x 1.20) | 2 | 5 | |||||
| 13 | 22-845174 | PLUG, (.500-14 x .610) Brass | 2 | 5 | |||||
| 14 | 25-26855 | 676-9-76541 | O-RING, (1.609 x .139) | 1 | 2,5 | ||||
| 15 | 25-32507 | O-RING, (3.359 x .139) | 1 | 2,5 | |||||
| 16 | 842562 | ADAPTOR, Oil Fitler | 1 | 5 | |||||
| 17 | 22-841827A01 | FITTING ASSEMBLY, Aluminum - With O-Ring | 1 | Design I 5 | |||||
| 17 | 22-8M0010560 | FITTING ASSEMBLY, Stainless Steel - With O-Ring | 1 | Design II 5 | |||||
| 18 | 10-30559 | SCREW, (.312-18 x 1.750) Stainless Steel | 2 | 5 | |||||
| 19 | 19-34270 | EXPANSION PLUG, (1.625) | 8 | 5 | |||||
| 20 | 22-36382 | 700-21887 | FITTING, (.250-18 x .62) Brass | 2 | Design I | ||||
| 21 | 22-860088 | BUSHING | 2 | Design II | |||||
| 22 | 22-806608A02 | PLUG KIT, (.500-13) Royal Blue | 2 | 22-806608A1 | Design II | ||||
| 23 | 25-831985 | O-RING, (.468 x .078) | 2 | Design II | |||||
| 24 | 11-826292 | NUT, (M10) Brass/Nickel Plated | 2 | ||||||
| 25 | 878187 | SENSOR ASSEMBLY, Knock | 2 | ||||||
| 26 | 16-8M0029493 | STUD, (.250-18/M10 Special), Knock Sensor Mounting | 2 | ||||||
| 27 | 842575 | JET, Special, Piston Cooling | 8 | 5 | |||||
| 28 | 17-843378 | PIN, Dowel (1/4 n. Diameter) | 2 | 17-35312 | 5 | ||||
| 29 | 22-32561 | PLUG, Pipe - Allen Head (.250-18) | 2 | 5 | |||||
| 30 | 22-47540 | PLUG, Pipe - Allen Head (.375-18) | 1 | 5 | |||||
| 31 | 22-328022 | PLUG, Pipe (.125-27) Brass | 1 | 5 | |||||
| 32 | 16-840999A01 | STUD KIT, Main Caps | 1 | This Part is No Longer Available 5 | |||||
| 33 | 16-816253 | STUD, (.500-13/.500-20 x 3.620) | 6 | 5 | |||||
| 34 | 12-816258 | WASHER, (.500 x .875 x .120) Special | 20 | 5 | |||||
| 35 | 11-816255 | NUT, (.500-20) | 20 | 5 | |||||
| 36 | 16-842561 | STUD, (.500-13/.500-20 x 4.060) | 4 | 5 | |||||
| 37 | 16-816252 | STUD, (.500-13/.500-20 x 4.400) | 10 | 5 | |||||
| - | 27-842593A01 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
