| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

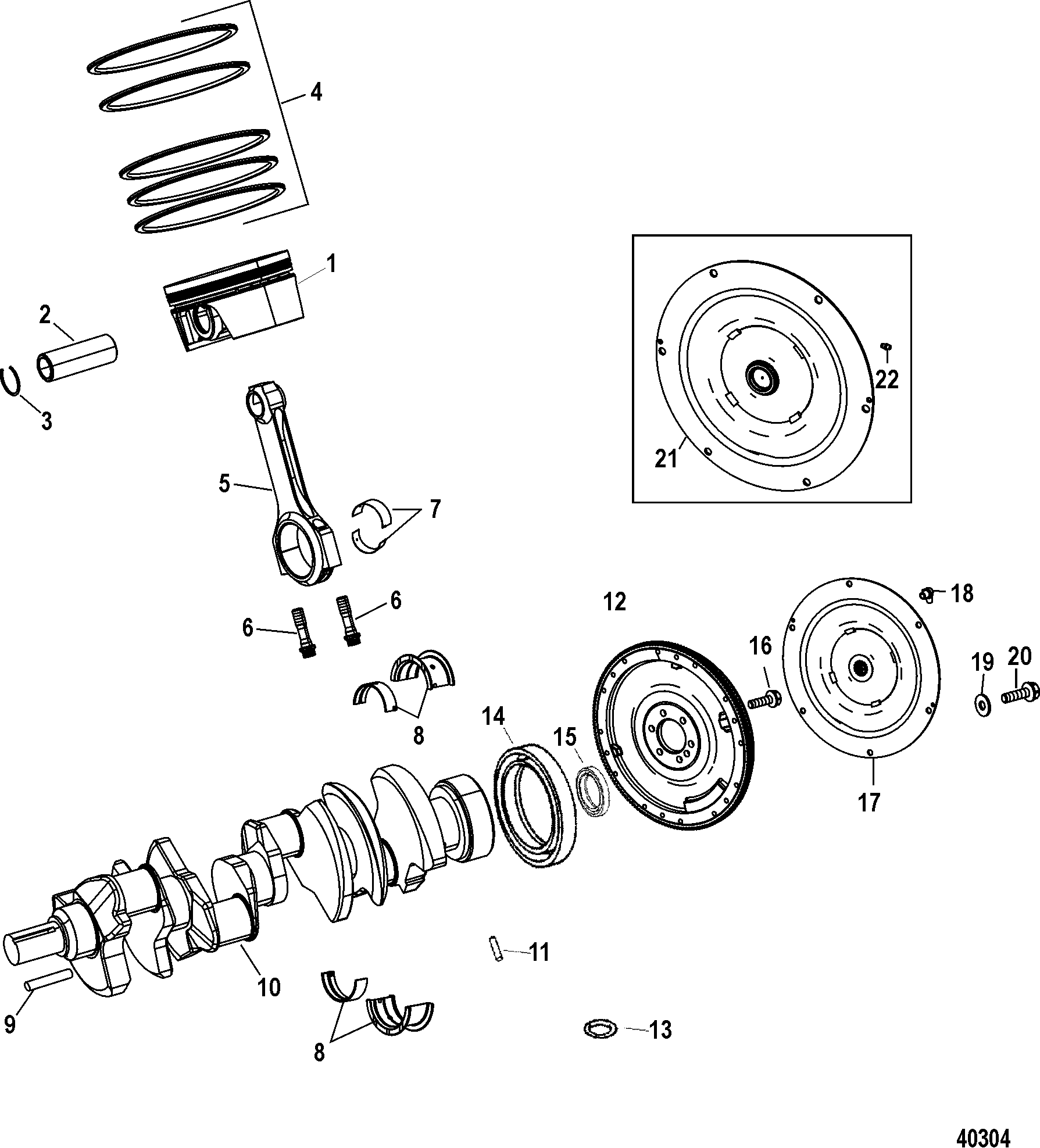

| 1 |
798-843231T01 |
|
|
|
|
PISTON ASSEMBLY, Standard |
8 |
|
5 |
| 2 |
41-843006T |
|
|
|
|
PIN, Piston |
8 |
|
5 |
| 3 |
40-843007 |
|
|
|
|
CIRCLIP |
16 |
|
5 |
| 4 |
39-843008A01 |
|
|
|
|
RING SET, Piston - Standard |
8 |
|
5 |
| 5 |
614-8M8020322 |
|
|
|
|
CONNECTING ROD ASSEMBLY |
8 |
|
5 |
| 6 |
10-8M0000838 |
|
|
|
|
SCREW, Special |
16 |
|
5 |
| 7 |
23-8M0030217 |
|
|
|
|
BEARING SET, Connecting Rod - Standard |
8 |
|
5 |
| 7 |
23-8M0030218 |
|
|
|
|
BEARING SET, Connecting Rod - .001 Oversize |
AR |
|
|
| 7 |
23-8M0030216 |
|
|
|
|
BEARING SET, Connecting Rod - .001 Undersize |
AR |
|
|
| 7 |
23-8M0030982 |
|
|
|
|
BEARING SET, Connecting Rod - .010 Undersize |
AR |
|
|
| 8 |
8M0051198 |
|
|
|
|
BEARING SET, Main - Standard |
1 |
23-842400 |
5 |
| 8 |
8M0053743 |
|
|
|
|
BEARING SET, Main - .001 Oversize |
AR |
23-842401 |
|
| 8 |
23-842402 |
|
|
|
|
BEARING SET, Main - .001 Undersize |
AR |
|
|
| 8 |
23-8M0053549 |
|
|
|
|
BEARING SET, Main - .010 Undersize |
AR |
23-842403 |
|
| 9 |
28-845607 |
|
|
|
|
KEY, Crankshaft |
1 |
|
5 |
| 10 |
400-842478T02 |
|
|
|
|
CRANKSHAFT/FLYWHEEL ASSEMBLY, Balanced |
1 |
|
NOTE: Also Includes Damper | 8M8021041 - Reference Engine Components Section - Water Pump And Front Cover 5 |
| 11 |
17-43504 |
|
|
|
|
PIN, Dowel |
1 |
|
5 |
| 12 |
899898T59 |
|
|
|
|
FLYWHEEL |
1 |
|
5 |
| 13 |
25-69756 |
|
|
|
|
O-RING, (.549 x .103), For #5 Bearing Cap Oil Hole |
1 |
|
2,5 |
| 14 |
26-811554 |
|
|
|
|
SEAL, Oil |
1 |
|
2,5 |
| 15 |
23-823108 |
|
|
|
|
BUSHING, Crankshaft Pilot |
1 |
|
Driveline Models 5 |
| 16 |
10-845757 |
|
|
|
|
SCREW, (.437-20 x 1.00) |
6 |
|
5 |
| 17 |
861523A9 |
|
|
|
|
COUPLER ASSEMBLY, Engine - Short Aluminium Hub |
1 |
|
Driveline Models |
| 18 |
22-49099 |
|
|
|
|
FITTING |
2 |
|
|
| 19 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
6 |
|
|
| 20 |
10-35091 |
|
|
|
|
SCREW, (.375-16 x 1.00) |
6 |
|
|
| 21 |
861523A20 |
|
|
|
|
COUPLER ASSEMBLY, Engine - Long Steel Hub |
1 |
|
Bravo Models |
| 22 |
22-74036 |
|
|
|
|
FITTING, Grease |
1 |
|
|
| - |
27-843073A05 |
|
|
|
|
GASKET/SEAL SET, Engine Overhaul |
1 |
|
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
| - |
844200A08 |
|
|
|
|
PARTIAL ENGINE ASSEMBLY |
1 |
|
|
