| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

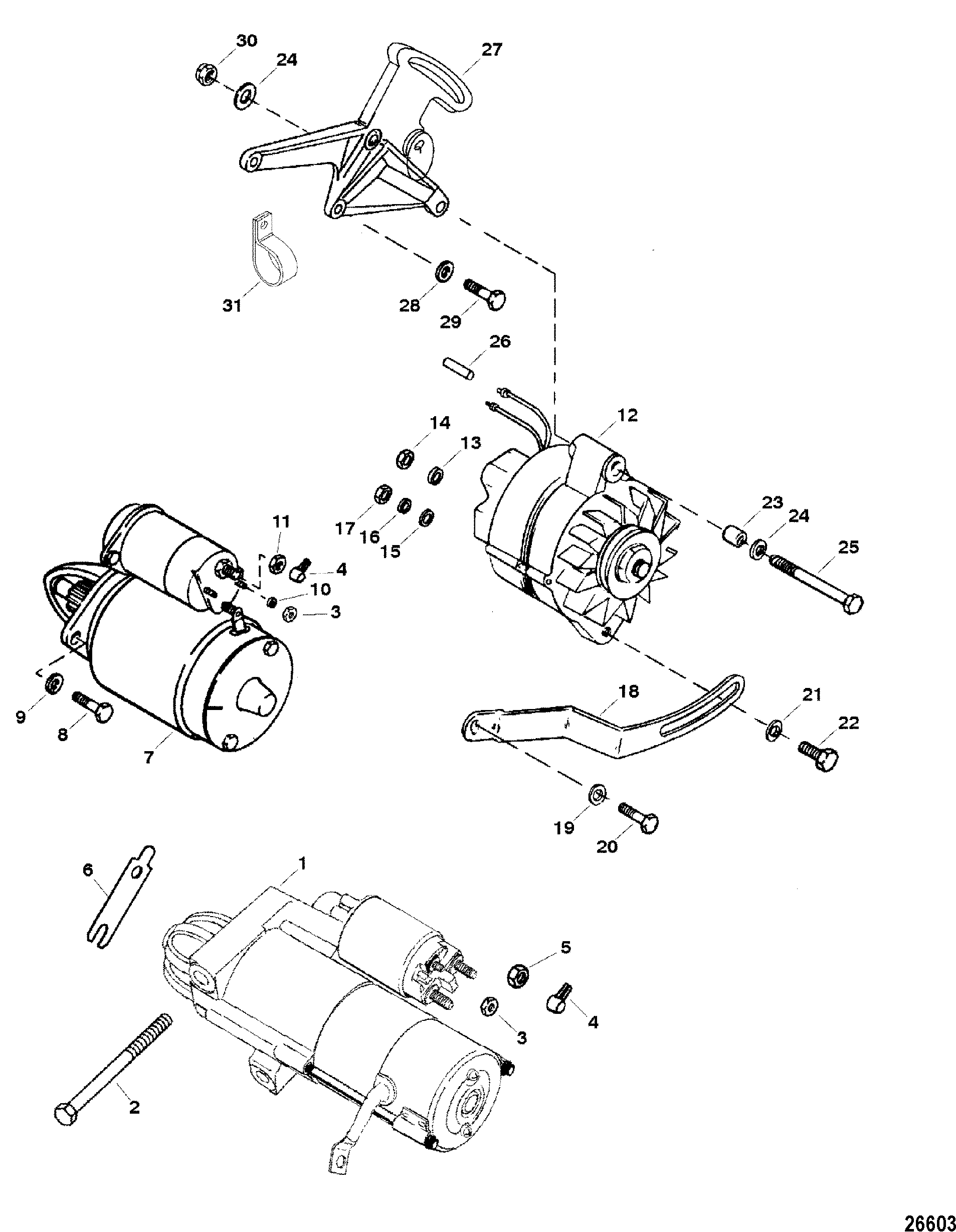

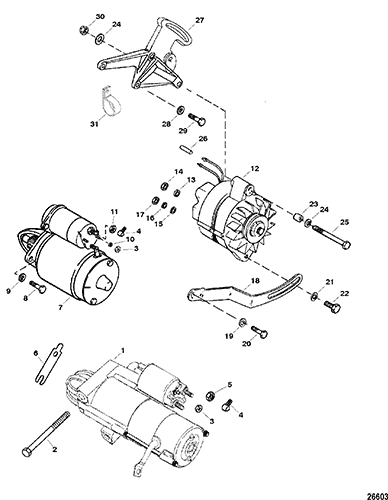

| 1 |
50-8M8021116 |
|
|
|
|
STARTER ASSEMBLY |
1 |
|
Bravo Plug In Models - NOTE: See Starter Assembly Section For Parts Breakdown |
| 2 |
10-8053432 |
|
|
|
|
SCREW, (.375-16 x 4.33), Special |
2 |
|
Component Of Engine Gasket Set [27-827014A97] |
| 3 |
11-400211 |
|
|
|
|
NUT, (M5) |
1 |
|
|
| 4 |
85-79695T |
|
|
|
|
BOOT, Insulator - Black |
1 |
85-79695 |
|
| 5 |
11-401388 |
|
|
|
|
NUT, (M8) |
1 |
11-400635 |
|
| 6 |
15-8172721 |
|
|
|
|
SHIM, Special |
1 |
|
|
| 7 |
50-808011A05 |
|
|
|
|
STARTER ASSEMBLY |
1 |
50-808011A1 |
Driveline Models - NOTE: See Starter Assembly Section For Parts Breakdown |
| 8 |
10-47461 |
|
|
|
|
SCREW, (.437-14 x 1.00) |
2 |
|
|
| 9 |
13-32993 |
|
|
|
|
LOCKWASHER, (.437) |
2 |
|
|
| 10 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) |
1 |
|
|
| 11 |
11-4013610 |
|
|
|
|
NUT, (M10) |
1 |
11-400266 |
|
| 12 |
8171191 |
|
|
|
|
ALTERNATOR ASSEMBLY, Blue |
1 |
|
NOTE: See Alternator Section For Parts Breakdown |
| 13 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) |
1 |
|
|
| 14 |
11-8267098 |
|
|
|
|
NUT, (.250-20) |
1 |
11-56374 |
|
| 15 |
12-96457 |
|
|
|
|
WASHER |
1 |
|
|
| 16 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) |
1 |
|
|
| 17 |
11-79989 |
|
|
|
|
NUT, (#10-24) |
1 |
|
|
| 18 |
85013T |
|
|
|
|
BRACE, Alternator Adjustment |
1 |
|
|
| 19 |
12-45176 |
|
|
|
|
WASHER, (.453 x .812 x .105) |
1 |
|
|
| 20 |
10-825427 |
|
|
|
|
SCREW, (.437-14 x 1.250) |
1 |
|
|
| 21 |
12-26168 |
|
|
|
|
WASHER |
1 |
|
|
| 22 |
10-29198 |
|
|
|
|
SCREW AND LOCKWASHER, (.312-18 x .875) |
1 |
|
|
| 23 |
23-33186 |
|
|
|
|
BUSHING |
1 |
|
|
| 24 |
12-20553 |
|
|
|
|
WASHER, (.406 x .734 x .063) |
3 |
|
|
| 25 |
10-48308 |
|
|
|
|
SCREW, (.375-24 x 3.750) |
1 |
|
|
| 26 |
5790811 |
|
|
|
|
SLEEVE, (10.00 Inches Bulk), Cut As Required - Alternator Lead |
1 |
|
|
| 27 |
848146T |
|
|
|
|
BRACKET, Alternator Mount |
1 |
848146 |
|
| 28 |
12-45176 |
|
|
|
|
WASHER, (.453 x .812 x .105) |
3 |
|
|
| 29 |
10-99204 |
|
|
|
|
SCREW, (.437-14 x 1.00) |
3 |
|
|
| 30 |
11-23161 |
|
|
|
|
NUT, (.375-24) |
1 |
|
|
| 31 |
54-848130 |
|
|
|
|
CLIP, Circulating Pump Hose |
1 |
|
No longer made, limited availability |
