| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

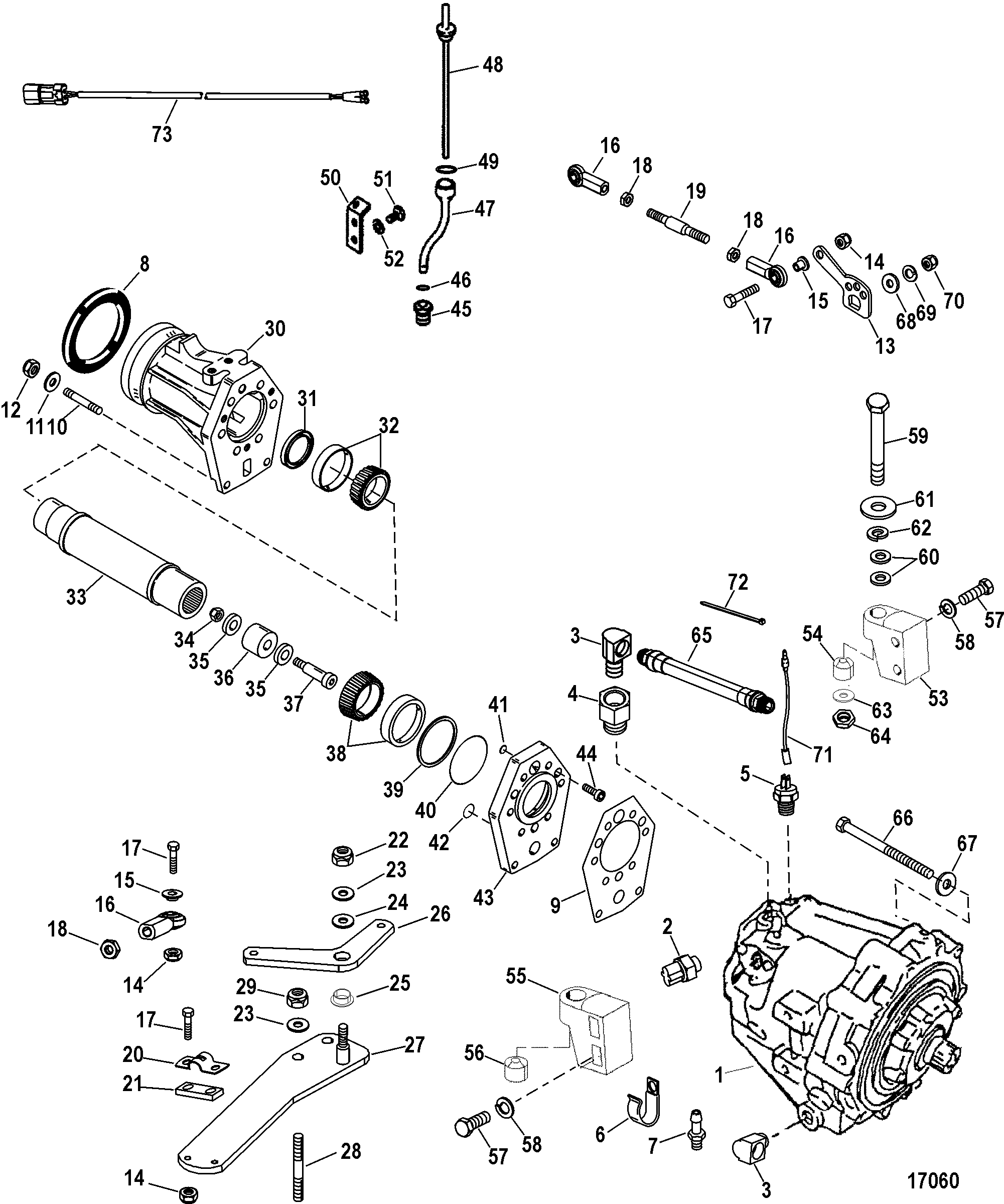

| 1 |
841919A06 |
|
|
|
|
TRANSMISSION ASSEMBLY, Complete |
1 |
14746A5 |
|
| 1 |
841919A07 |
|
|
|
|
TRANSMISSION ASSEMBLY |
1 |
14746A4 |
|
| 2 |
47613 |
|
|
|
|
SWITCH, Neutral Safety |
1 |
|
|
| 3 |
22-47629 |
|
|
|
|
ELBOW, 90 Degree, Transmission To Oil Hose |
2 |
|
|
| 4 |
22-88517 |
|
|
|
|
FITTING, Reducing, Transmission Elbow |
1 |
|
|
| 5 |
87-88031 |
|
|
|
|
SWITCH ASSEMBLY, Oil Temperature |
1 |
|
|
| 6 |
54-47483 |
|
|
|
|
J CLIP |
1 |
|
|
| 7 |
22-63186 |
|
|
|
|
FITTING, (.125-27), To Hose On Bottle |
1 |
|
|
| - |
847145T1 |
|
|
|
|
SUPPORT AND LEVER KIT, Universal Joint |
1 |
|
|
| 8 |
846693 |
|
|
|
|
SEAL, Housing |
1 |
|
|
| 9 |
27-47903 |
|
|
|
|
GASKET, Transmission To Support Housing |
1 |
|
|
| 10 |
16-847031 |
|
|
|
|
STUD, (.437-14/.437-20 x 2.750) |
2 |
|
|
| 10 |
16-847030 |
|
|
|
|
STUD, (.437-14/.437-20 x 3.00) |
6 |
|
|
| 11 |
12-842922 |
|
|
|
|
WASHER, (.450 x .750 x .060) Stainless Steel |
8 |
|
|
| 12 |
11-34933 |
|
676-9-72004 |
|
|
NUT, (.437-20) Stainless Steel |
8 |
|
|
| 13 |
847052 |
|
|
|
|
LEVER, Shift |
1 |
|
|
| 14 |
11-8267096 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
5 |
|
|
| 15 |
23-846787 |
|
|
|
|
SPACER, Rod End |
3 |
|
|
| 16 |
846786 |
|
|
|
|
ROD END |
3 |
|
|
| 17 |
10-34994 |
|
|
|
|
SCREW, (#10-32 x 1.00) Stainless Steel |
5 |
|
|
| 18 |
11-68219 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
3 |
|
|
| 19 |
16-846964 |
|
|
|
|
STUD, (#10-32 x 2.09), Shift Rod |
1 |
|
|
| 20 |
54-846341 |
|
|
|
|
BRACKET, Shift Cable |
1 |
|
|
| 21 |
846344 |
|
|
|
|
SPACER, Cable Bracket |
1 |
|
|
| 22 |
11-826709113 |
|
|
|
|
NUT, (.375-24) Stainless Steel |
1 |
|
|
| 23 |
12-841388 |
|
|
|
|
WASHER, (.410 x .810 x .050) Stainless Steel |
3 |
|
|
| 24 |
12-846783 |
|
|
|
|
WASHER, (.562 x 1.250 x .062) Nylon |
1 |
|
|
| 25 |
23-812707 |
|
|
|
|
BUSHING |
1 |
|
|
| 26 |
847025 |
|
|
|
|
ARM, Shift Cable |
1 |
|
|
| 27 |
8M0053746 |
|
|
|
|
PLATE ASSEMBLY, Shift Linkage Mount |
1 |
847175 |
|
| 28 |
16-846453 |
|
|
|
|
STUD, (.375-16 x 1.250), Mounting Plate |
2 |
|
|
| 29 |
11-826709112 |
|
|
|
|
NUT, (.375-16) |
2 |
11-846869 |
|
| - |
8M0050742 |
|
|
|
|
SUPPORT ASSEMBLY, Universal Joint |
1 |
847123A1 |
|
| 30 |
8M0054154 |
|
|
|
|
HOUSING, Universal Joint Support |
1 |
8469611 |
|
| 31 |
26-846497 |
|
|
|
|
SEAL, Inner Coupler |
1 |
|
|
| 32 |
31-846477A1 |
|
|
|
|
BEARING SET, Cup And Cone, Rear Coupler |
1 |
|
|
| 33 |
8M0050930 |
|
|
|
|
SHAFT, Coupling |
1 |
846960 |
|
| 34 |
11-82670910 |
|
|
|
|
NUT, (.312-18) Stainless Steel |
1 |
|
|
| 35 |
12-846967 |
|
|
|
|
WASHER, (.376 x 1.430 x .250) |
2 |
|
|
| 36 |
23-847027 |
|
|
|
|
SEAL, Coupler |
1 |
|
|
| 37 |
10-847209 |
|
|
|
|
SHOULDER SCREW, (.375-16) |
1 |
|
|
| 38 |
31-846695A1 |
|
|
|
|
BEARING SET, Cup And Cone, Front Coupler |
1 |
|
|
| 39 |
15-847029A1 |
|
|
|
|
SHIM SET, Bearing |
2 |
|
|
| 40 |
25-841807 |
|
|
|
|
O-RING, (3.500 x .103) |
1 |
|
|
| 41 |
25-847033 |
|
|
|
|
O-RING, (.620 x .09) |
1 |
|
|
| 42 |
25-847034 |
|
|
|
|
O-RING, (1.310 x .09) |
1 |
|
|
| 43 |
8470121 |
|
|
|
|
SPACER, Universal Joint |
1 |
|
|
| 44 |
10-76769 |
|
|
|
|
SCREW, (.375-16 x .880) |
3 |
|
|
| 45 |
48461 |
|
|
|
|
ADAPTOR, Oil Level Gauge Tube |
1 |
|
This Part is No Longer Available |
| 46 |
25-48462 |
|
|
|
|
O-RING, (.614 x .070) |
1 |
|
|
| 47 |
48463 |
|
|
|
|
TUBE, Dipstick, Oil Level Gauge |
1 |
|
This Part is No Longer Available |
| 48 |
48464 |
|
|
|
|
DIPSTICK, Oil Level |
1 |
|
This Part is No Longer Available |
| 49 |
25-35276 |
|
|
|
|
O-RING, (.734 x .139) |
1 |
|
|
| 50 |
48466 |
|
|
|
|
BRACKET, Mounting |
1 |
|
This Part is No Longer Available |
| 51 |
10-34290 |
|
|
|
|
SCREW, (.250-20 x .625) |
2 |
|
|
| 52 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) Stainless Steel |
2 |
|
|
| 53 |
47340A1 |
|
|
|
|
BRACKET ASSEMBLY, Transmission Mount - Port |
1 |
|
|
| 54 |
35852 |
|
|
|
|
MOUNT, Transmission Bracket |
1 |
|
|
| 55 |
47334A2 |
|
|
|
|
BRACKET ASSEMBLY, Transmission Mount - Starboard |
1 |
|
This Part is No Longer Available |
| 56 |
35852 |
|
|
|
|
MOUNT, Transmission Bracket |
1 |
|
|
| 57 |
10-47462 |
|
|
|
|
SCREW, (.437-14 x 1.250) |
4 |
|
|
| 58 |
13-32993 |
|
|
|
|
LOCKWASHER, (.437) |
4 |
|
|
| 59 |
10-47467 |
|
|
|
|
SCREW, (.625-18 x 5.500) |
2 |
|
|
| 60 |
12-47466 |
|
|
|
|
WASHER, (1.125 x 1.750 x .16) |
4 |
|
|
| 61 |
12-47475 |
|
|
|
|
WASHER, (1.120 x 2.250 x .19) |
2 |
|
|
| 62 |
13-34846 |
|
|
|
|
LOCKWASHER, Thackeray Spring (.636) |
2 |
|
|
| 63 |
12-33171 |
|
|
|
|
WASHER, (.6406 x 1.750 x .125) |
2 |
|
|
| 64 |
11-22339 |
|
|
700-28360 |
525-11-22339 |
NUT, (.625-18) |
2 |
|
|
| 65 |
32-475166 |
|
|
|
|
HOSE ASSEMBLY, (30.00 Inches), Transmission To Oil Cooler |
2 |
|
|
| 66 |
10-60179 |
|
|
|
|
SCREW, (.437-14 x 3.500) |
6 |
|
|
| 67 |
12-45176 |
|
|
|
|
WASHER, (.453 x .812 x .105) Stainless Steel |
6 |
|
|
| 68 |
12-20722 |
|
|
|
|
WASHER, (.328 x .625 x .060) |
1 |
|
This Part is No Longer Available |
| 69 |
13-39107 |
|
|
700-21496 |
|
LOCKWASHER, (.312-24) |
1 |
|
|
| 70 |
11-22053 |
|
|
|
|
NUT, (.312-24) |
1 |
|
|
| 71 |
84-88032A5 |
|
|
|
|
CABLE ASSEMBLY, (3.00 Inches) Tan/Blue |
1 |
|
|
| 71 |
84-86322A29 |
|
|
|
|
CABLE ASSEMBLY, (3.00 Inches) Black |
1 |
|
|
| 72 |
77054 |
|
|
|
|
TIE STRAP, (14.50 Inches) |
1 |
|
|
| 73 |
84-896868A01 |
|
|
|
|
HARNESS ASSEMBLY, Extension |
1 |
|
NOTE: This Harness Is Used Between Engine Harness And Connects In Place Of Bravo Shift Plate And The Neutral Switch On The Transmission |
