NXT1 Transom - Serial 0M954505 and Up - Drive Spacer Kit

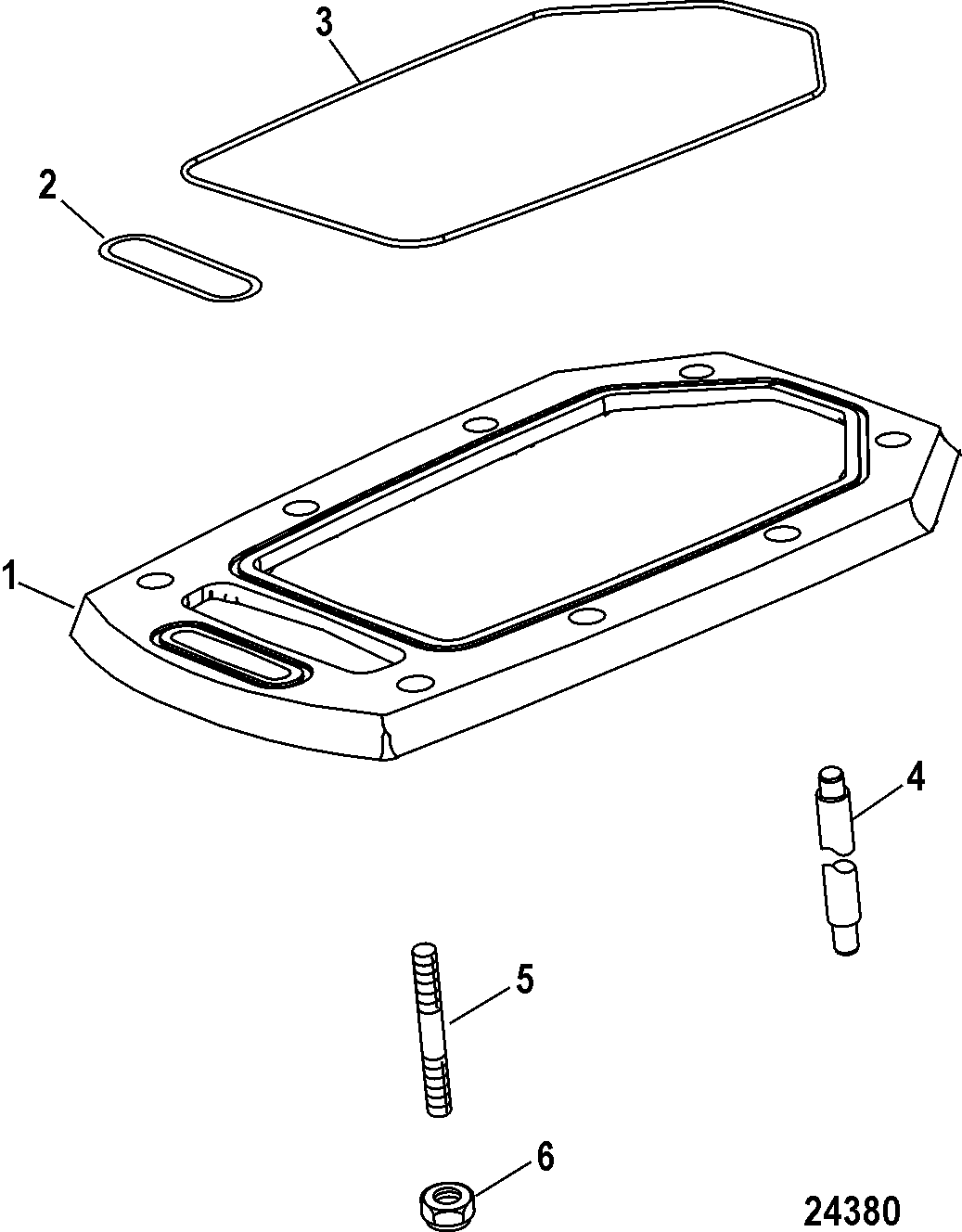

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8M8023731



SPACER KIT, (.500) 1 8M8000031
1 8M8023733



SPACER KIT, (1.00) 1 8M8000032
1 8M8000033



SPACER KIT, (1.50) 1

1 8M8023737



SPACER KIT, (2.00) 1 8M8000034
1 8M8000035



SPACER KIT, (2.50) 1

1 8M8000036



SPACER KIT, (3.00) 1
1 8M8023731



SPACER KIT, (.50)Anodized 1
1 8M8023733



SPACER KIT, (1.00)Anodized 1
1 8M8023735



SPACER KIT, (1.50)Anodized 1
1 8M8023737



SPACER KIT, (2.00)Anodized 1
1 8M8023739



SPACER KIT, (2.50)Anodized 1
1 8M8023741



SPACER KIT, (3.00)Anodized 1
2 25-822370
676-9-78149

O-RING, (2.362 x .103) 1
3 25-8M0001554



O-RING, (Special x .103) 1
4 32-8496782



TUBE, Oil Transfer (2.63) 1
4 32-8496783



TUBE, Oil Transfer (3.13) 1
4 32-8496784



TUBE, Oil Transfer (3.63) 1
4 32-8496785



TUBE, Oil Transfer (4.13) 1
4 32-8496786



TUBE, Oil Transfer (4.63) 1
4 32-8496787



TUBE, Oil Transfer (5.13) 1
5 16-846385



STUD, (.562-12/.562-18 x 3.810) 8
5 16-846667



STUD, (.562-12/.562-18 x 4.250) 8
5 16-846617



STUD, (.562-12/.562-18 x 4.750) 8
5 16-846618



STUD, (.562-12/.562-18 x 5.250) 8
5 16-846668



STUD, (.562-12/.562-18 x 5.750) 8
5 16-846669



STUD, (.562-12/.562-18 x 6.250) 8
6 11-47302



NUT, (.562-18) Stainless Steel 8
