| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |

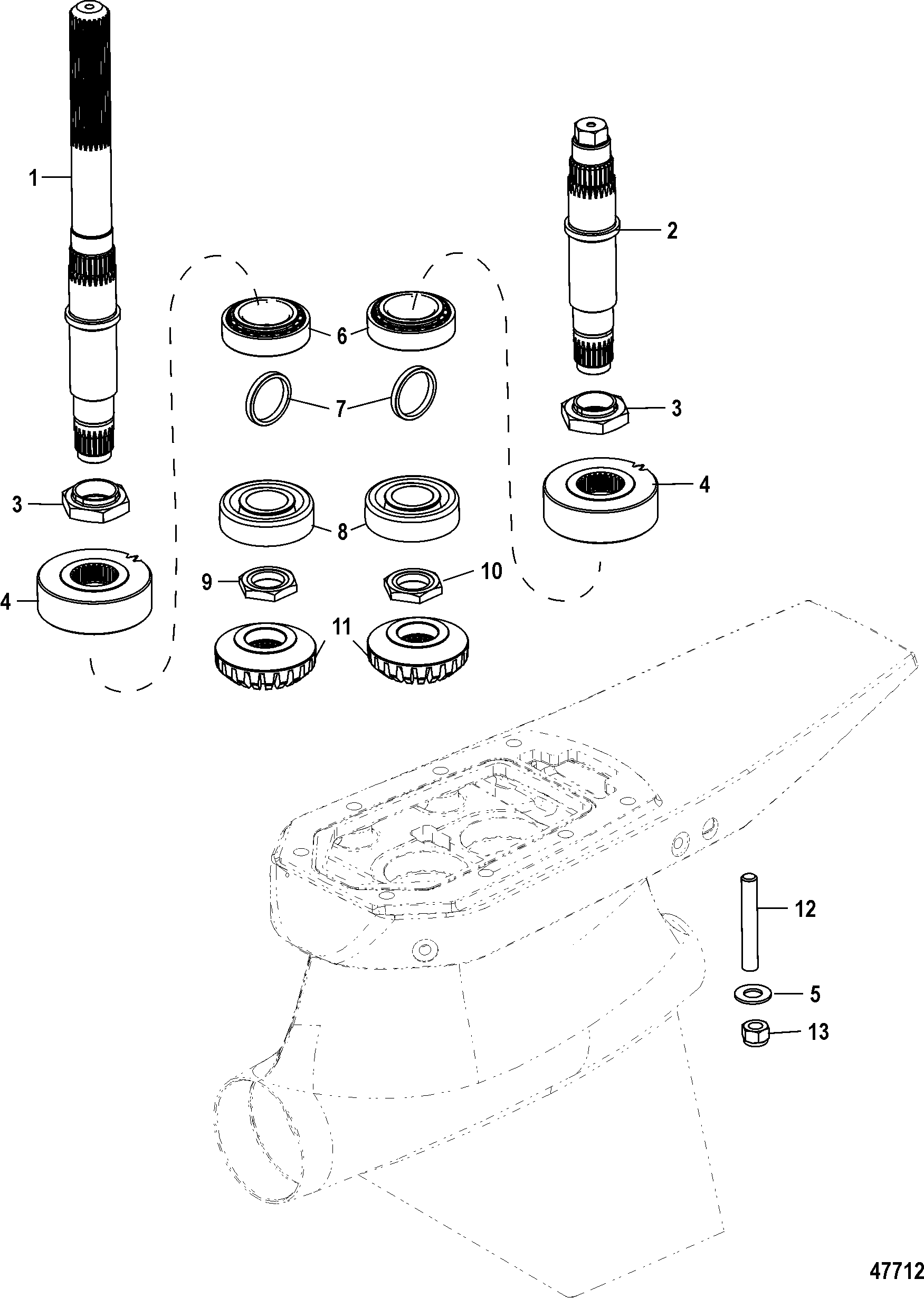

1600-8M8026002 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Left Hand, Complete |
1 |
|
|
| - |
1600-8M8026003 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Right Hand, Complete |
1 |
|
|
| 1 |
45-8M0060039 |
|
|
|
|
DRIVESHAFT, Front |
1 |
|
|
| 2 |
45-8M0060040 |
|
|
|
|
DRIVESHAFT, Rear |
1 |
|
|
| 3 |
11-846394 |
|
|
|
|
NUT, (1.440-16) |
2 |
|
|
| 4 |
43-8M0060056 |
|
|
|
|
GEAR SET |
1 |
|
|
| 5 |
12-844850 |
|
|
|
|
WASHER, (.660 x 1.310 x .09) Stainless Steel |
8 |
|
|
| 6 |
31-30894A1 |
|
|
|
|
BEARING SET, Cup And Cone |
2 |
|
|
| 7 |
23-846505595 |
|
|
|
|
SPACER, (.2595) |
2 |
|
|
| 8 |
31-847377T1 |
|
|
|
|
BEARING SET, Cup And Cone |
2 |
|
|
| 9 |
11-846396 |
|
|
|
|
NUT, (1.25-16) |
1 |
|
|
| 10 |
11-846395 |
|
|
|
|
NUT, Left Hand (1.250-16) |
1 |
|
|
| 11 |
43-8M0025968 |
|
|
|
|
PINION, 21 Teeth |
2 |
|
|
| 12 |
16-846385 |
|
|
|
|
STUD, (.562-12/.562-18 x 3.810) |
8 |
|
|
| 13 |
11-47302 |
|
|
|
|
NUT, (.562-18) Stainless Steel |
8 |
|
|
