Bravo XR Three - Serial 0W240000 and Up - Universal Joint and Shift Components

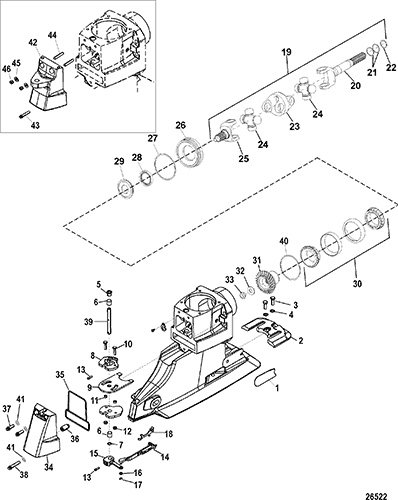

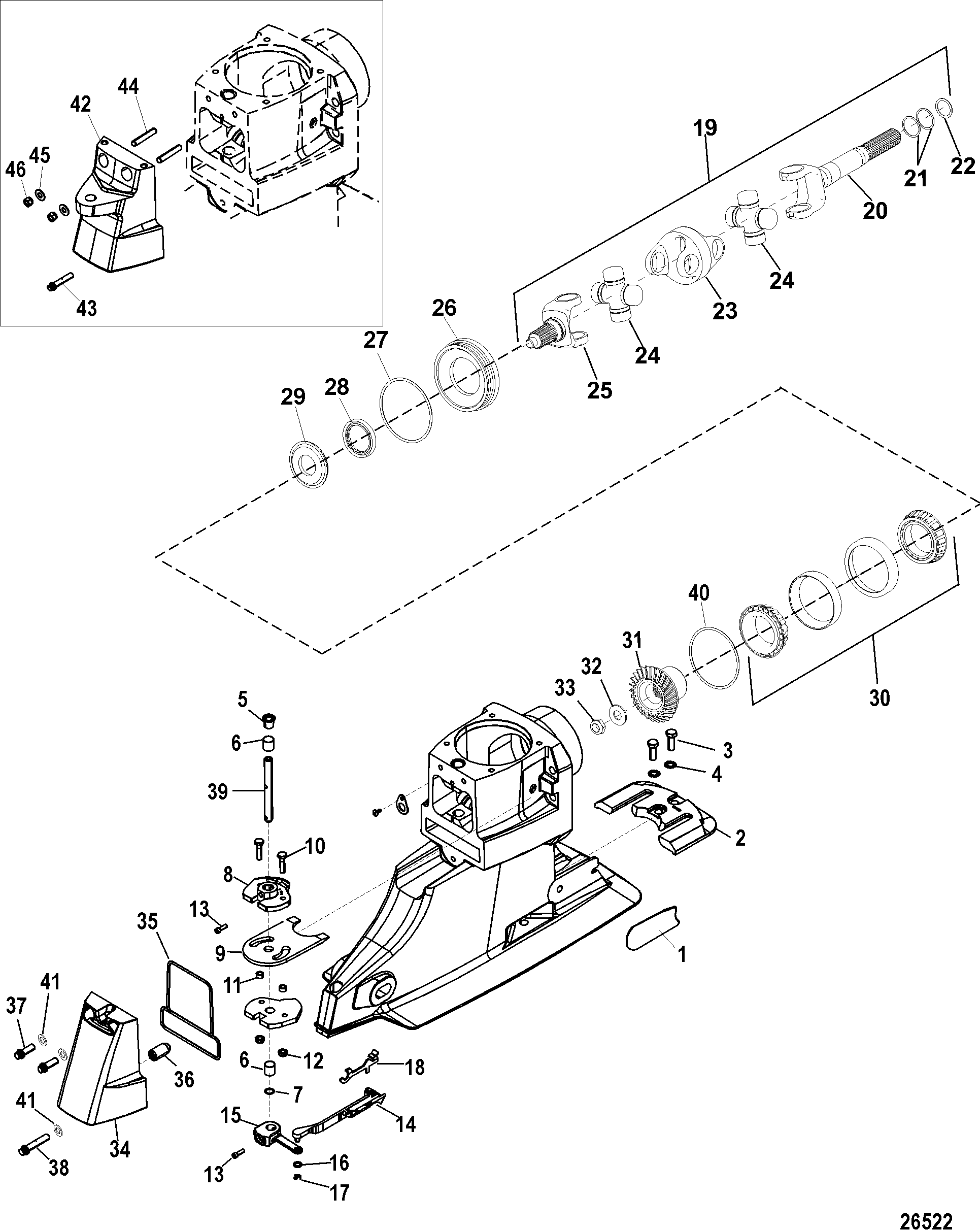

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1589-865440H56



HOUSING ASSEMBLY, Driveshaft - Complete (16/19) 1
(Use With Magnum and Hi-Performance Transom)
- 1589-865440H73



HOUSING ASSEMBLY, Driveshaft - Complete (16/19) 1
(Use With Integrated Transom)
- 1500-866459J04



HOUSING ASSEMBLY, Driveshaft - Complete (16/19) 1
(SEACORE)(Use With Magnum and Hi-Performance Transom)
- 1589-865440H70



HOUSING, Driveshaft - Basic 1

- 1500-866459J00



HOUSING, Driveshaft - Basic 1
(SEACORE)
1 805261A1



WEAR PAD KIT 1

2 821630Q1



ANODE ASSEMBLY 1

3 10-65210



SCREW, (.375-16 x 1.00) 2

4 13-35479



LOCKWASHER, (.375) 2

5 19-865866



PLUG, Shift Shaft Oil Seal 1

6 23-861209A1



BUSHING KIT 1

7 26-127091



SEAL 1

8 806552A1



YOKE AND CAM ASSEMBLY 1

9 806552



YOKE, Shifter 1

10 10-805733



SCREW, (.250-28 x 1.00) 2

11 23-12706



SPACER, (.194 x .375) 2

12 11-8267139



NUT, (.250-28) 2

13 10-865900



SCREW, (.250-28 x .930) 2 10-865712
14 861175A2



SHIFT LINKAGE ASSEMBLY, High Bump Shift Lever 1

15 NSS



NOT SOLD SEPARATE, SHIFT LEVER 1
This Part is not sold separately
16 12-20583



WASHER 1

17 18-26953



COTTER PIN 1

18 86776



LATCH 1

19 865425A03



UNIVERSAL JOINT ASSEMBLY 1

19 865425T02



UNIVERSAL JOINT ASSEMBLY 1
(Use With Integrated Transom Assemblies)
20 866133A01



YOKE, Splined, Coupler End 1

20 866135A01



YOKE, Splined, Coupler End 1
(Integrated Transom Assembly)
21 25-29845



O-RING, (.924 x .103) 2
17
22 25-35027
700-81180 525-25-35027
O-RING, (1.046) 1
17
23 866137T



SOCKET, Center 1

24 866136A01



CROSS AND BEARING 1

25 866134T



YOKE, Gear End 1

26 11-841026A2



RETAINER/SEAL KIT 1

27 25-861844



O-RING 1

28 26-43993



SEAL, Oil 1

29 12-862134



WASHER 1

30 31-86763A04



BEARING ASSEMBLY, Tapered Roller 1

31 43-849320T



GEAR, (16 Teeth) 1

32 12-861832



WASHER 1

33 11-22339

700-28360 525-11-22339 NUT, (.625-18) 1 11-97522
34 865441A02



COVER ASSEMBLY, Back 1
(Use With Magnum and Hi-Performance Transom)
34 866463A02



COVER ASSEMBLY, Back 1
(SEACORE)(Use With Magnum and Hi-Performance Transom)
35 12708



SEAL 1
17
36 865711A02



DETENT ASSEMBLY 1 14497A2
37 10-98794
676-9-78129 700-28300 525-10-98794 SCREW, (.375-16 x 1.00) 2

38 10-87158



SCREW, (.375-16 x 1.875) 1

39 12711



SHAFT 1

40 15-888927028



SHIM, (.028) 1

40 15-888927029



SHIM, (.029) 1

40 15-888927030



SHIM, (.030) 1

40 15-888927031



SHIM, (.031) 1

40 15-888927032



SHIM, (.032) 1

40 15-888927033



SHIM, (.033) 1

40 15-888927034



SHIM, (.034) 1

40 15-888927035



SHIM, (.035) 1

40 15-888927036



SHIM, (.036) 1

40 15-888927037



SHIM, (.037) 1

40 15-888927038



SHIM, (.038) 1

40 15-888927039



SHIM, (.039) 1

40 15-888927040



SHIM, (.040) 1

41 12-37828



WASHER, (.390 x .625 x .062) Stainless Steel 3
SEACORE
42 842783T01



COVER ASSEMBLY 1

43 10-87158



SCREW, (.375-16 x 1.875) 1

44 16-57932



STUD, (.375-16/.375-24 x 1.750) 2

45 12-37828



WASHER, (.390 x .625 x .062) Stainless Steel 2

46 11-82671013



NUT, (.375-24) 2 11-34932
- 26-16709A2



SEAL KIT, Driveshaft Housing 1
