| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

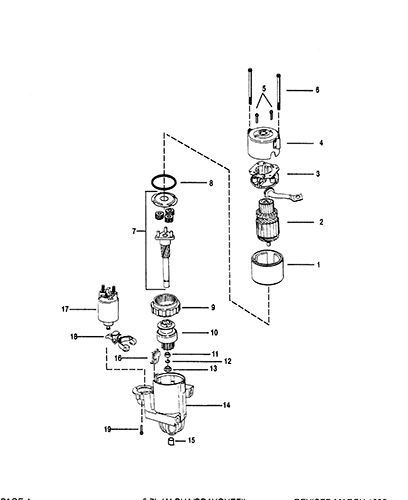

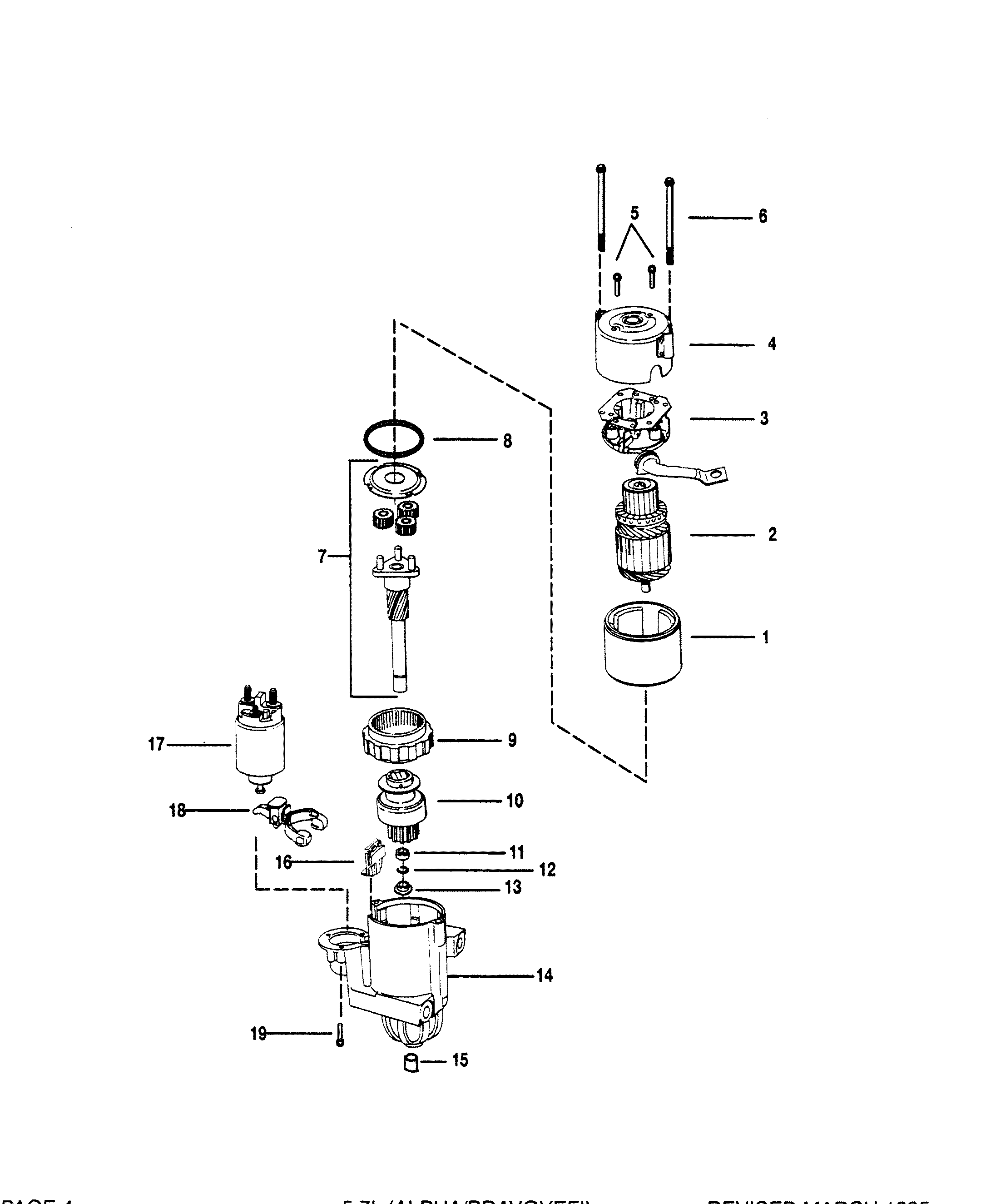

| 1 |
50-863007A1 |
620-5399M |
676-9-15907 |
|
602-10099MD |
STARTER MOTOR |
1 |
50-806964A3 |
|
| 2 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, ARMATURE |
1 |
|
This part is not sold separate |
| 3 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, BRUSH HOLDER AND SPRING |
1 |
|
This part is not sold separate |
| 4 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, FRAME |
1 |
|
This part is not sold separate |
| 5 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, SCREW |
2 |
|
This part is not sold separate |
| 6 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, THRU BOLT |
2 |
|
This part is not sold separate |
| 7 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, SHAFT AND GEAR |
1 |
|
This part is not sold separate |
| 8 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, GASKET |
1 |
|
This part is not sold separate |
| 9 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, GEAR |
1 |
|
This part is not sold separate |
| 10 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, DRIVE |
1 |
|
This part is not sold separate |
| 11 |
33291 |
|
|
|
|
COLLAR |
1 |
|
|
| 12 |
53-33290 |
|
|
|
|
RETAINING RING |
1 |
|
|
| 13 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, THRUST COLLAR |
1 |
|
This part is not sold separate |
| 14 |
809459 |
|
|
|
|
DRIVE HOUSING |
1 |
|
This Part is No Longer Available |
| 15 |
23-814476 |
|
|
|
|
BUSHING |
1 |
|
This Part is No Longer Available |
| 16 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, GROMMET |
1 |
|
This part is not sold separate |
| 17 |
809463A1 |
|
676-9-15125
|
|
700-72450
|
SOLENOID |
1 |
8094631 |
|
| 18 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, LEVER |
1 |
|
This part is not sold separate |
| 19 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, SCREW |
3 |
|
This part is not sold separate |
