5.0L (2 BBL) GM 305 V-8 1988-1995 - Serial 0B774445 Thru 0F600999 - Fuel Pump And Fuel Filter

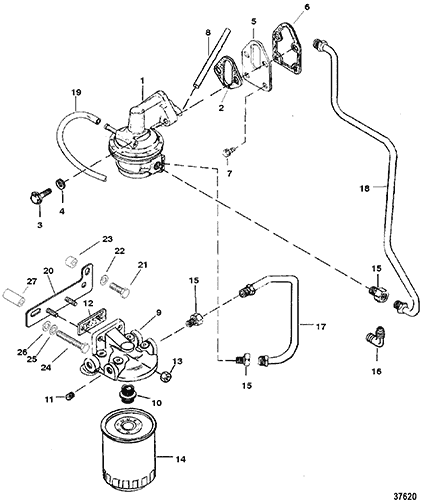

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8M0058164         PUMP ASSEMBLY, Fuel 1 97401A8
2 27-34213   676-9-61041 700-31360   GASKET 1
4
3 10-34354     700-22447   SCREW, (.375-16 x 1.50) 2

4 13-35048     700-21495   LOCKWASHER, (.375) 2

5 35373         MOUNTING PLATE 1

6 27-34898   676-9-61042 700-32750   GASKET 1
4
7 10-35366         SCREW, (.250-20 x .563) 2

8 35377         ROD 1
(FLAT LIFTERS) (200/230 - 5.0L/LX & 260 - 5.7L ALPHA)
8 35377         ROD 1
(FLAT LIFTERS) (350 MAGNUM/5.7L BRAVO) SN# 0D617327 & Below
8 821150         PUSH ROD 1   This Part is No Longer Available (ROLLER LIFTERS) (350 MAGNUM/5.7L BRAVO) SN# 0D617328 & Up No longer made, limited availability
9 89876A3         BASE ASSEMBLY, Fuel Filter/Water Seperator 1

10 22-816133         FITTING 1 22-8161331
11 22-32561         PLUG, Pipe - Allen Head (.250-18) 3

12 88641         INSULATOR 1

13 11-82670911       NUT, (.312-24) Stainless Steel 2 11-35814
14 35-802893Q01         FILTER, Fuel/Water Separator 1 35-807172
15 22-33821         CONNECTOR 3
(USE WITH ROCHESTER CARBURETOR)
15 22-33821         CONNECTOR 2
USE WITH WEBER CARBURETOR
16 22-43276         ELBOW 1
USE WITH WEBER CARBURETOR
17 32-97326T         LINE, Fuel 1

18 32-96081A1         LINE ASSEMBLY, Fuel 1
(305/350 C.I.D. WITH 4 BARREL CARBURETOR
18 32-861070T         LINE, Fuel 1 32-96855T (305 C.I.D. WITH 2 BARREL CARBURETOR)
18 32-16797T         LINE, Fuel 1
(350 C.I.D. WITH HI-RISE INTAKE MANIFOLD)
18 32-8217611         LINE, Fuel 1 32-821761T (350 C.I.D. WITH WEBER CARBURETOR)
18 32-8053601         LINE, Fuel 1 32-805360T (5.7L ALPHA WITH WEBER CARBURETOR)
19 32-7381567         TUBING, (42.00 Inches Bulk) 1

20 805367T         BRACKET 1

21 10-37612         SCREW, (.375-16 x 1.250) 1

22 13-35048         LOCKWASHER, (.375) 1

23 23-91034         SPACER, (.380 x 1.00 x .530) 1
No longer made, limited availability
24 10-26486         SCREW, (.375-16 x 2.375) 1

25 13-35048     700-21495   LOCKWASHER, (.375) 1

26 12-20553     700-21675   WASHER, (.406 x .734 x .063) 1

27 23-15895         SPACER, (.38 x 1.00 x 1.44) 1
No longer made, limited availability
