350 Mag Bravo MPI(Gen +) GM V-8 1997 - Serial 0K001501 and Up - Electrical Box And Components

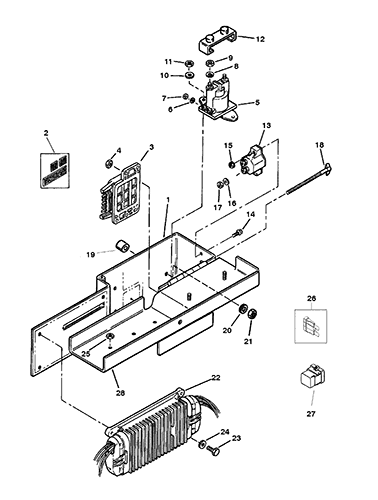

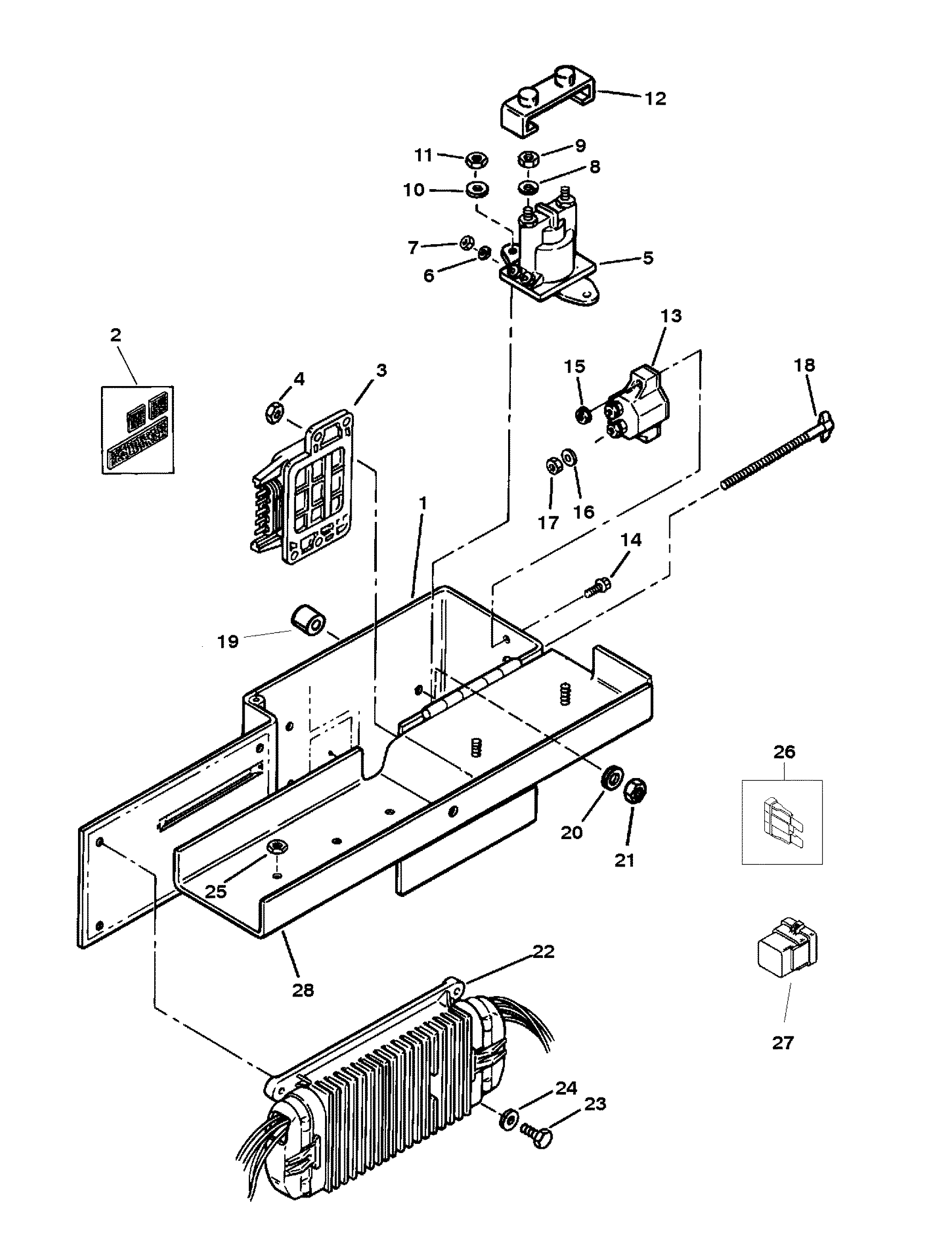

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # SEI # Description Num Req. Superceded From Special Notes
1 807323A5         BOX-ELECTRICAL COMPONENTS 1

2 806762A1         VELCRO KIT 1

3 806611T         MODULE ASSEMBLY-KNOCK 1

4 11-64015         NUT (1/4-20) 1

5 89-96054T       602-SW102 SOLENOID ASSEMBLY-STARTER 1 89-96054
6 13-26995         LOCKWASHER (#8) 2

7 11-26419         NUT (#8-32) 2

8 13-26992         LOCKWASHER (1/4 IN.) 2

9 11-94330         NUT (1/4-20) 2

10 12-35462         WASHER 2

11 11-64015         NUT (1/4-20) 2

12 85-97861         INSULATOR-STARTER SOLENOID 1

13 88-11178A01         BREAKER-CIRCUIT (50 AMP) 1 88-11178 This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work.
14 10-45862         SCREW (#10-32 X 7/8 IN.) 2

15 11-61356         NUT (#10-32) 2

16 13-26996         LOCKWASHER (#10) 2

17 11-68219         NUT (#10-32) 2

18 805615A2         SCREW ASSEMBLY-THUMB 1   This Part is No Longer Available
19 23-92152T         SPACER 3 23-92152
20 12-35462         WASHER 3

21 11-64015         NUT (1/4-20) 3

22 860250T1         MODULE ASSEMBLY-ECM 1

23 10-76596         SCREW (1/4-20 X 1-1/4 IN.) 4

24 12-20533       602-98-260-49 WASHER 4

25 11-805562         NUT (#10-24) 3

26 88-804642         FUSE (15 AMP) 1 805704 No longer made, limited availability
26 88-804641         FUSE (10 AMP) 1 805703
27 86-865202T         RELAY-FUEL PUMP/IGNITION SYSTEM 2 807057
28 805439T3         LID-ELECTRICAL BOX 1
