| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

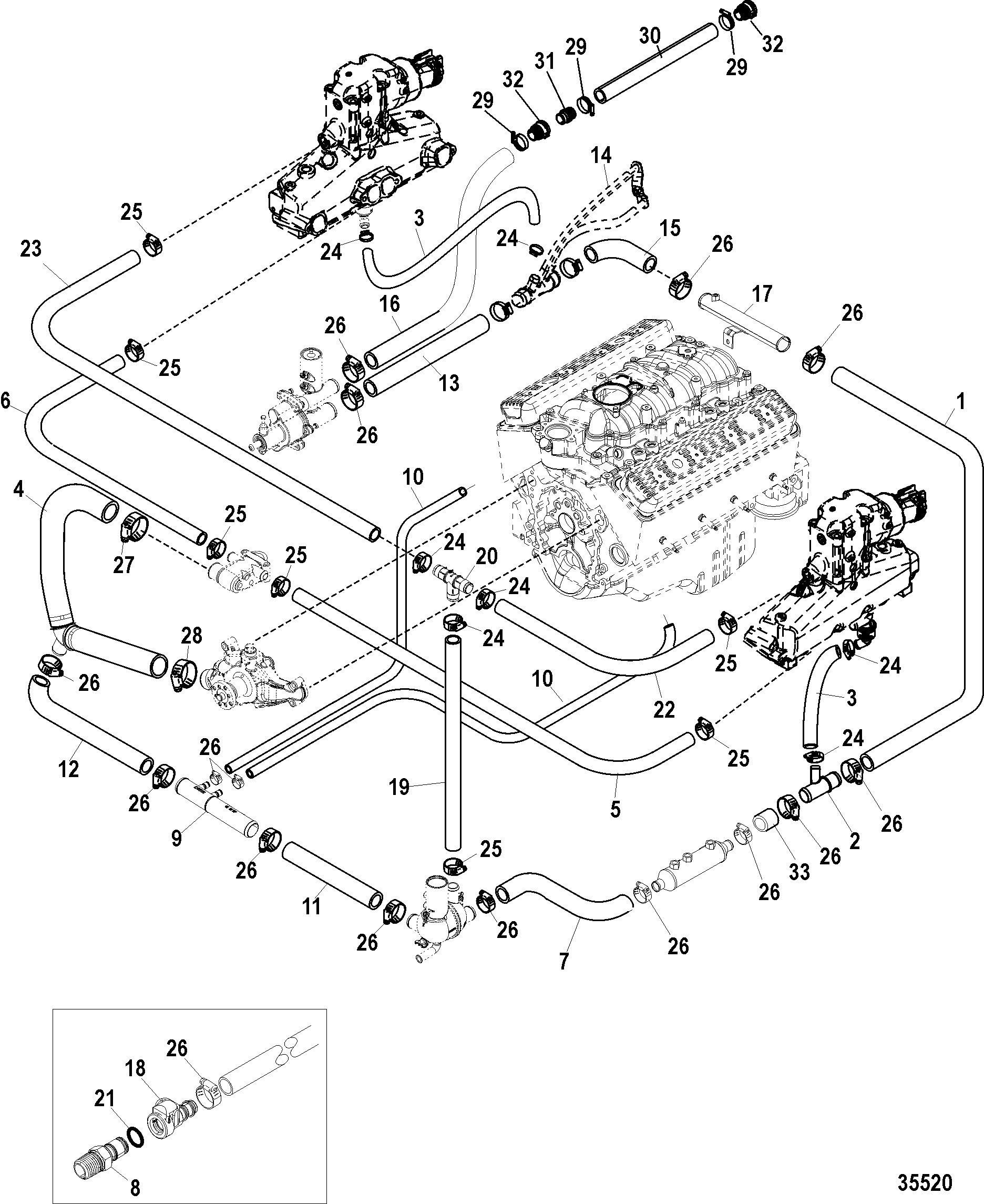

| 1 |
32-8M2012039 |
|
|
|
|
HOSE, Cooling Tube to "Y" Fitting |
1 |
|
|
| 2 |
22-862993 |
|
|
|
|
FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb |
1 |
|
|
| 3 |
32-4285069 |
|
|
|
|
HOSE, (44.00 Inches Bulk), Exhaust Manifold to Y Fitting |
1 |
|
Port, Cut to 17.00 Inches |
| 3 |
32-4285069 |
|
|
|
|
HOSE, (44.00 Inches Bulk), Exhaust Manifold to Orifice Fitting |
1 |
|
Starboard, Cut to 3.5 Inches |
| 4 |
32-863456A1 |
|
|
|
|
HOSE ASSEMBLY, Thermostat Housing to Circulating Pump |
1 |
|
|
| 5 |
32-863458 |
|
|
|
|
HOSE, Thermostat Housing to Port Manifold |
1 |
|
|
| 6 |
32-863459 |
|
|
|
|
HOSE, Thermostat Housing to Starboard Manifold |
1 |
|
|
| 7 |
32-8M2007277 |
|
|
|
|
HOSE, Cooler to Accumulator |
1 |
|
|
| 8 |
22-862603 |
|
|
|
|
FITTING, Male Quick Connector, Threaded - Engine Block |
2 |
|
|
| 9 |
22-864989A01 |
|
|
|
|
FITTING ASSEMBLY, Lower Distribution |
1 |
|
|
| 10 |
32-8M0062590 |
|
|
|
|
HOSE, Cylinder Block Drain to Distribution Fitting |
2 |
32-8623175 |
Port Cut to 23 Inches, Starboard 17 Inches |
| 11 |
32-863490 |
|
|
|
|
HOSE, Water Drain Accumulator to Distribution Fitting |
1 |
|
|
| 12 |
32-865394 |
|
|
|
|
HOSE |
1 |
|
|
| 13 |
32-8M2021656 |
|
|
|
|
HOSE, Sea Pump to Water Orifice |
1 |
32-865337 |
3 Point Manual Drain |
| 13 |
32-865234 |
|
|
|
|
HOSE, Sea Pump to Water Orifice |
1 |
|
Single Point Air Actuated Drain |
| 14 |
NA |
|
|
|
|
NOT AVAILABLE, Orifice Meter |
1 |
|
(See Cool Fuel System -Bravo page for service part number) |
| 15 |
32-865235 |
|
|
|
|
HOSE, Water Orifice to Power Steering Cooler |
1 |
|
|
| 16 |
32-865672079 |
|
|
|
|
HOSE, (96.00 Inches Bulk), Transom Water Pick Up to Sea Water Pump |
1 |
|
Cut to 10.00 Inches |
| 17 |
863841T |
|
|
|
|
TUBE, Water, Brass |
1 |
|
Compact Hydraulic Steering |
| 18 |
22-862225 |
|
|
|
|
FITTING, Pushlock - Block Drian Hose |
4 |
|
|
| 19 |
32-863465 |
|
|
|
|
HOSE, Drain Accumulator to Tee Fitting |
1 |
|
|
| 20 |
22-8M0065823 |
|
|
|
|
FITTING ASSEMBLY, Tee |
1 |
22-863464A1 |
Bravo Only |
| 21 |
25-627021 |
|
|
|
|
O-RING, (.301 x .070) |
2 |
|
|
| 22 |
32-864560 |
|
|
|
|
HOSE, Tee Fitting to Port Elbow |
1 |
|
Non Riser, 1.7 Inch and 3 Inch Riser |
| 22 |
32-864965 |
|
|
|
|
HOSE, Tee Fitting to Port Elbow |
1 |
|
4.7 Inch and 6 Inch Riser |
| 23 |
32-864561 |
|
|
|
|
HOSE, Tee Fitting to Starboard Elbow |
1 |
|
Non Riser, 1.7 Inch and 3 Inch Riser |
| 23 |
32-864966 |
|
|
|
|
HOSE, Tee Fitting to Starboard Elbow |
1 |
|
4.7 Inch and 6 Inch Riser |
| 24 |
54-815504212 |
|
|
|
|
CLAMP, Worm Gear |
2 |
|
|
| 25 |
54-815504216 |
|
|
|
|
CLAMP, Worm Gear (1.56 Diameter) |
AR |
|
|
| 26 |
54-815504228 |
|
|
|
|
CLAMP, Worm Gear |
2 |
|
|
| 27 |
54-815504232 |
|
|
|
|
CLAMP, Worm Gear |
1 |
54-8M2001490 |
|
| 28 |
54-815504232 |
|
|
|
|
CLAMP, Worm Gear (2.50 Diameter) |
AR |
|
|
| 29 |
54-815504222 |
|
|
|
|
CLAMP, Worm Gear (1.98 DIameter) |
3 |
|
|
| 30 |
32-865672079 |
|
|
|
|
HOSE, (96.00 Inches Bulk) |
1 |
|
Cut to 18.50 Inches |
| 31 |
22-865362 |
|
|
|
|
QUICK CONNECT, Transom Hose |
1 |
|
|
| 32 |
22-865324 |
|
|
|
|
QUICK CONNECT, Transom Hose |
2 |
|
|
| 33 |
32-8M2007277 |
|
|
|
|
HOSE, "Y" Fitting to Cooler |
1 |
|
|
