496 Mag EC Base Model - Serial 1A066166 Thru 1A350440 - Cooling System, Raw Water, Starboard (1A349420 and Above)

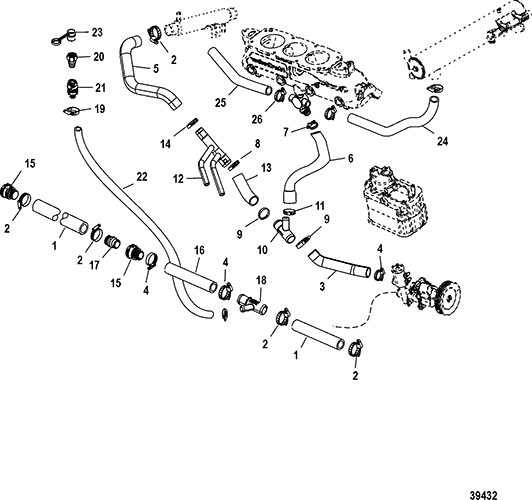

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- AXIUS Steering, Fluid Filter (HP) 1A349743 and Up, Gen I
- AXIUS Steering, Fluid Filter (Non-HP) 1A349742 and Below, Gen I
- AXIUS Steering, High Pressure Filter Conversion Kit, Gen I
- AXIUS Steering, Hoses (HP Filter) 1A349743 and Up, Gen I
- AXIUS Steering, Hoses (Non-HP Filter) 1A349742 and Below, Gen I
- AXIUS Steering, Oil Cooler and Bracket, Gen I
- Block, Camshaft and Pistons
- Block, Crankshaft, Oil Pump and Front Cover
- Cool Fuel System, SN 1A349419 and Below
- Cool Fuel System, SN 1A349420 and Above
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Port (AXIUS)
- Cooling System, Raw Water, Starboard (1A349419 and Below)
- Cooling System, Raw Water, Starboard (1A349420 and Above)
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components - Bravo (1A349419 and Below)
- Fuel Module Components - Bravo (1A349420 and Above)
- Gasket Set Components, Engine
- Gasket Set Components, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Lifting Brackets and Wiring Harness
- Mercathode Kit
- Oil Pan and Drain System
- PCM and Bracket
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle Shift - Axius
- Shift Bracket, Mechanical Shift
- SmartCraft Sensor and Harnesses
- Starter and Alternator
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump and Motor Components
- Trim Pump Assembly, Complete
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-865672013 | HOSE, (4.00 Inches) | 1 | ||||||
| 2 | 54-815504224 | CLAMP, (32 - 50 mm) | AR | 54-8M2001489 | |||||
| 3 | 32-8M2004535 | HOSE, Sea Water Pump to Fitting | 1 | ||||||
| 4 | 54-815504224 | CLAMP, (32 - 50 mm) | 1 | 54-8M2001489 | |||||
| 5 | 32-865235 | HOSE, Water Orifice to Power Steering Cooler | 1 | ||||||
| 6 | 32-8M2004531 | HOSE, Drain to Y-Fitting | 1 | ||||||
| 7 | 54-815504212 | CLAMP, Worm Gear | 1 | ||||||
| 8 | 54-815504221 | CLAMP, Worm Gear (30 - 45 mm) | 1 | 54-8M2001488 | |||||
| 9 | 54-815504232 | CLAMP, Worm Gear | 2 | 54-8M2001490 | |||||
| 10 | 22-8M2008928 | FITTING | 1 | ||||||
| 11 | 54-815504216 | CLAMP, (25 - 40 mm) | 1 | 54-8M2001487 | |||||
| 12 | 865317T02 | HOSE ASSEMBLY, 2 Bib Orifice Meter | 1 | ||||||
| 13 | 32-8M2004536 | HOSE, Y-Fitting to Orifice Meter | 1 | ||||||
| 14 | 54-815504224 | CLAMP, (32 - 50 mm) | 1 | 54-8M2001489 | |||||
| 15 | 22-865324 | QUICK CONNECT | 2 | ||||||
| 16 | 32-86567231 | HOSE, (13.00 Inches), Cut to 8 Inches | 1 | ||||||
| 17 | 22-865362 | QUICK CONNECT | 1 | ||||||
| 18 | 22-862993 | FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb | 1 | ||||||
| 19 | 54-815504212 | CLAMP, Worm Gear (20 - 32 mm) | 1 | 54-8M2004076 | |||||
| 20 | 22-857175 | FITTING | 1 | 22-861405 | |||||
| 21 | 22-861406 | SOCKET | 1 | ||||||
| 22 | 32-8M0062635 | HOSE, (34 Inches), Water | 1 | 32-86438765 | |||||
| 23 | 861427 | CAP | 1 | ||||||
| 24 | 32-8M2004598 | HOSE, Heat Exchanger to Poppet | 1 | ||||||
| 25 | 32-8M0062669 | HOSE, (36.00 Inches Bulk), Poppet to Collector | 1 | 32-8M2001709 | Cut to Fit | ||||
| 26 | 54-815504104 | CLAMP, (8 - 16 mm) | 4 | 54-8M2001484 |
