496 Mag HO Model - Serial 0M687144 Thru 0W059999 - PCM and Bracket

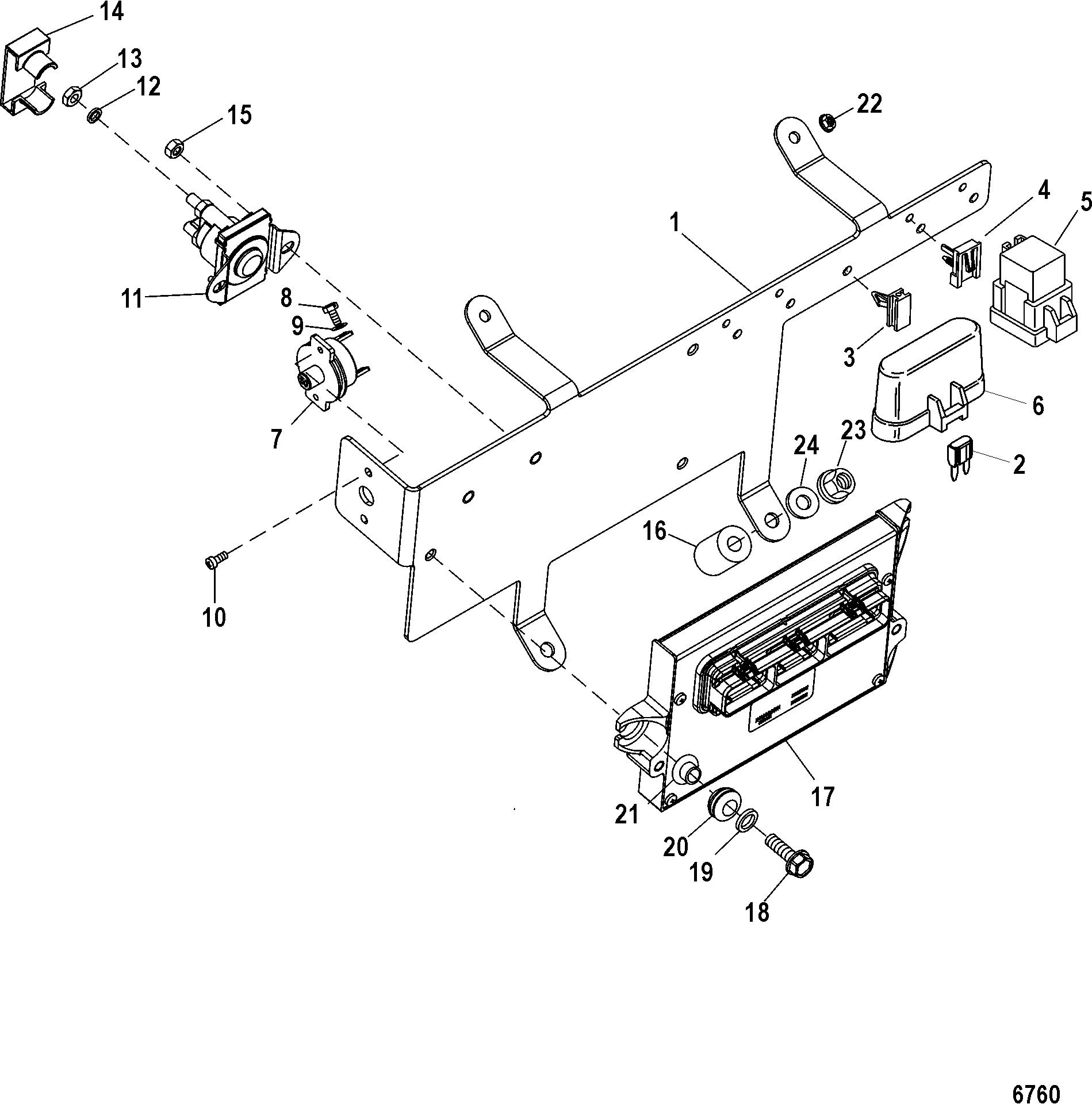

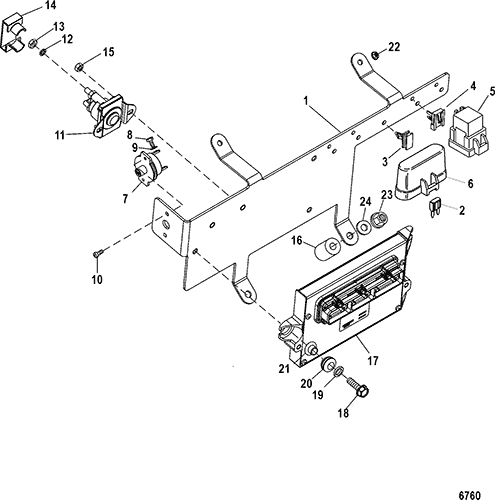

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # SEI # Description Num Req. Superceded From Special Notes
NS 84-865457A02



HARNESS ASSEMBLY, Wiring, Engine 1
(Mechanical Throttle and Shift)
NS 84-865458A01



HARNESS ASSEMBLY, Wiring, Engine 1
(Digital Throttle and Shift)
1 862539T01



BRACKET, PCM 1

2 88-832969T20



FUSE, Mini - Yellow - 20 Ampere 3 88-83296920
3 86-865205



CLIP, Fuse Block Mounting 1 54-804351
4 54-804352



CLIP, Relay Mounting 3

5 86-865202T



RELAY (Mechanical Throttle and Shift) 3 807057T
5 86-865202T



RELAY (Digital Throttle and Shift) 4 807057T
6 883562



COVER, Fuse 1

7 88-11178A01



BREAKER, Circuit - 50 Ampere 1 88-806950
8 10-68513



SCREW, (#10-32 x .375) Stainless Steel 2

9 13-26996



LOCKWASHER, (#10) Stainless Steel, Split Lock 2

10 10-57583



SCREW, (#8-32 x .375) 2

11 89-96158T 620-3387M 676-9-15112 700-72400 602-SW101 SOLENOID 1

NS 11-26419



NUT, (#8-32) Brass 2

NS 13-26996



LOCKWASHER, (#10) Stainless Steel, Split Lock 2

12 13-26992



LOCKWASHER, (.250) Stainless Steel, Split Lock 2

13 11-94330



NUT, (.250-20) Brass 2

14 85-97861



INSULATOR, Solenoid 1

15 11-400212



NUT, (M6) Stainless Steel 2

16 23-862995



SPACER 1

17 865364T02



PCM, Propulsion Control Module, Base 1 865364T01 (Mechanical Throttle and Shift) SN# 0W029410 & Below
17 866090T05



PCM, Propulsion Control Module, Base 1 865850T01 (Mechanical Throttle and Shift) SN# 0W029411 & Up
17 863784T03



PCM, Propulsion Control Module, Base 1
(Digital Throttle and Shift)
17 865366T02



PCM, Propulsion Control Module, H.O. 1 865366T01 (Mechanical Throttle and Shift) SN# 0W029410 & Below
17 865855T01



PCM, Propulsion Control Module, H.O. 1
(Mechanical Throttle and Shift) SN# 0W029411 & Up
17 863785T03



PCM, Propulsion Control Module, H.O. 1 863785T02 (Digital Throttle and Shift)
18 10-82130025



SCREW, (M6 x 25) 3

19 23-856954



BUSHING, Electrical Plate 3

20 25-834985



GROMMET 3

21 12-65567



WASHER, (.265 x .750 x .048) Stainless Steel 3

22 11-4002030



NUT, (M8) 2

23 11-863289



NUT 2

24 12-12038



WASHER 2
