4.3L CARB ALPHA-BRAVO - 1A063240 and Up - Steering Components

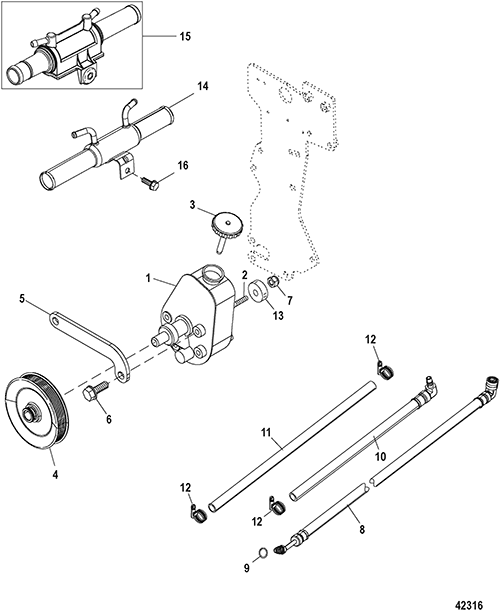

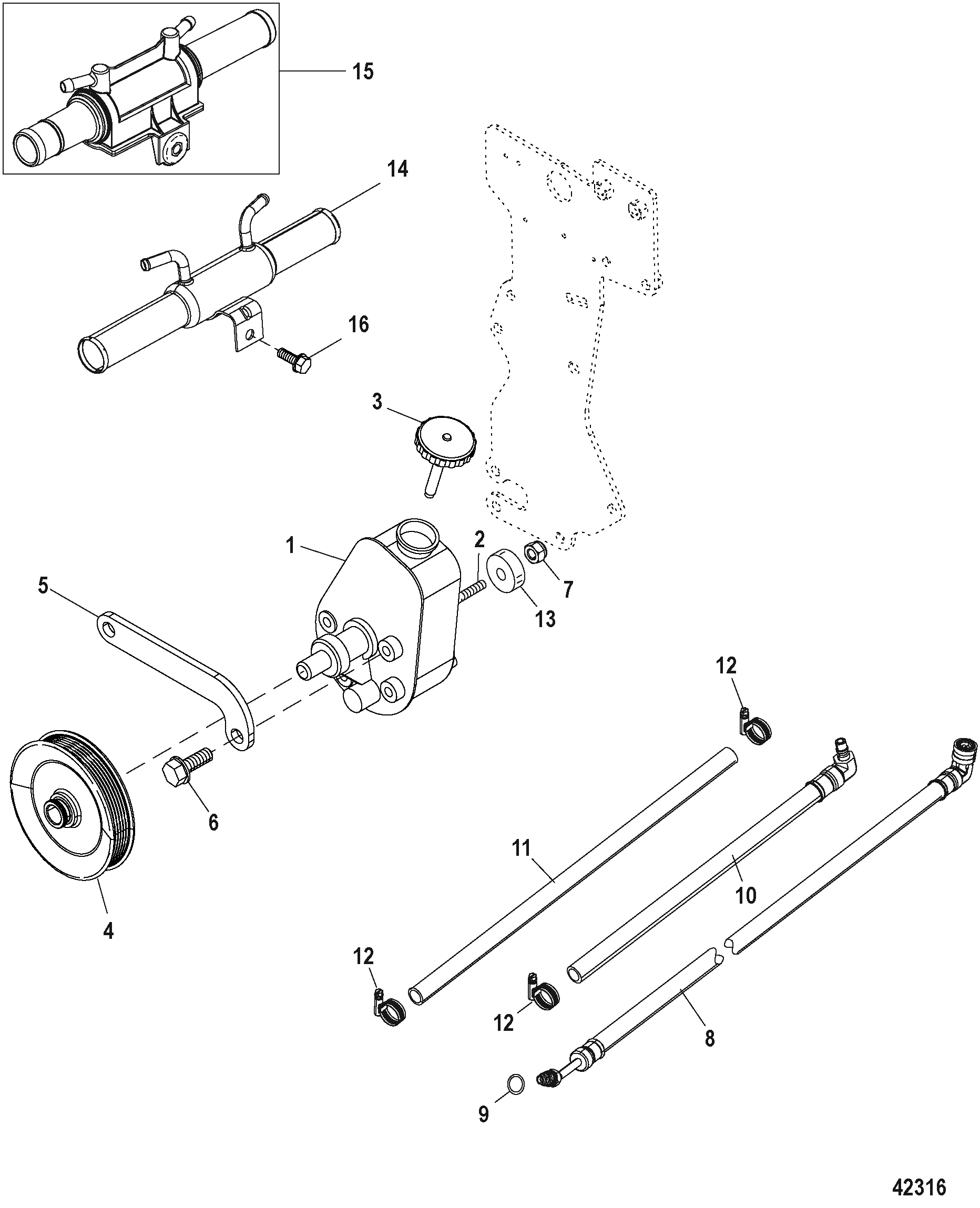

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-16792A39, Sierra: 676-18-7508 PUMP ASSEMBLY Power Steering   1
2 0016 OEM: 525-16-41877 STUD (M10)   2
3 0036 OEM: 525-36-95805 CAP   1
4 0000 OEM: 525-861578, Sierra: 676-18-8297 PULLEY   1
5 0000 OEM: 525-862082T BRACE Power Steering   1
6 0010 OEM: 525-10-40001188 SCREW (M10 x 20)   2
7 0011 OEM: 525-11-90517 NUT (M10)   2
8 0032 OEM: 525-32-866685 HOSE Female Quick Connect Fittings on Both Ends   1
9 0025 OEM: 525-25-89879 O-RING (.301 x .064)   1
10 0032 OEM: 525-32-865390015 HOSE Male Quick Connect Fitting on One End   1
11 0032 5251914 HOSE (53.00 Inches Bulk) Pump to Oil Cooler (37.00 Inch)   1
12 0054 OEM: 525-54-815504105 CLAMP Worm Gear (11-18 mm) Hose   3
13 0023 OEM: 525-23-905201 SPACER (.750 x .250)   1
14 0000 OEM: 525-861554T01 COOLER Power Steering (Metal) 1
15 0000 861554T02 COOLER Power Steering (Composite) 1
16 0010 OEM: 525-10-816585 SCREW (.312-18 x .875) Metal Cooler 1
16 0010 OEM: 525-10-8M2016106 SCREW (.312 x 1.25) Composite Cooler (Included with 861554T02) 1
NS 0022 OEM: 525-22-806231001 COUPLER   1
NS 0019 8079921 COVER Hose Clamp End (.25 Inside Diameter) AR
NS 0019 8079923 COVER Hose Clamp End (.375 Inside Diameter) 1
NS 0000 OEM: 525-77054 TIE STRAP (14.50 Inches)   1
