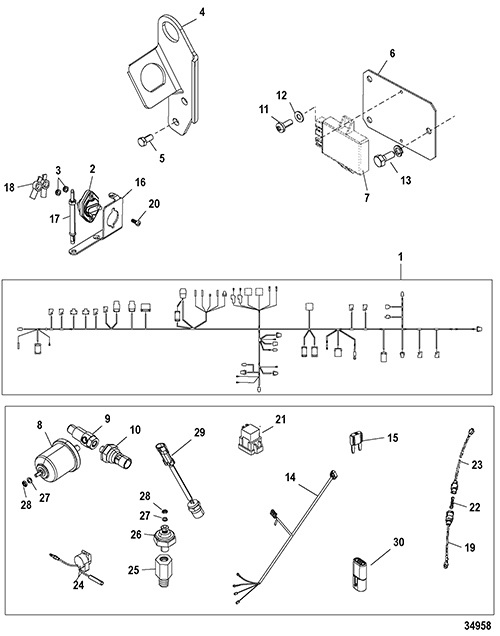

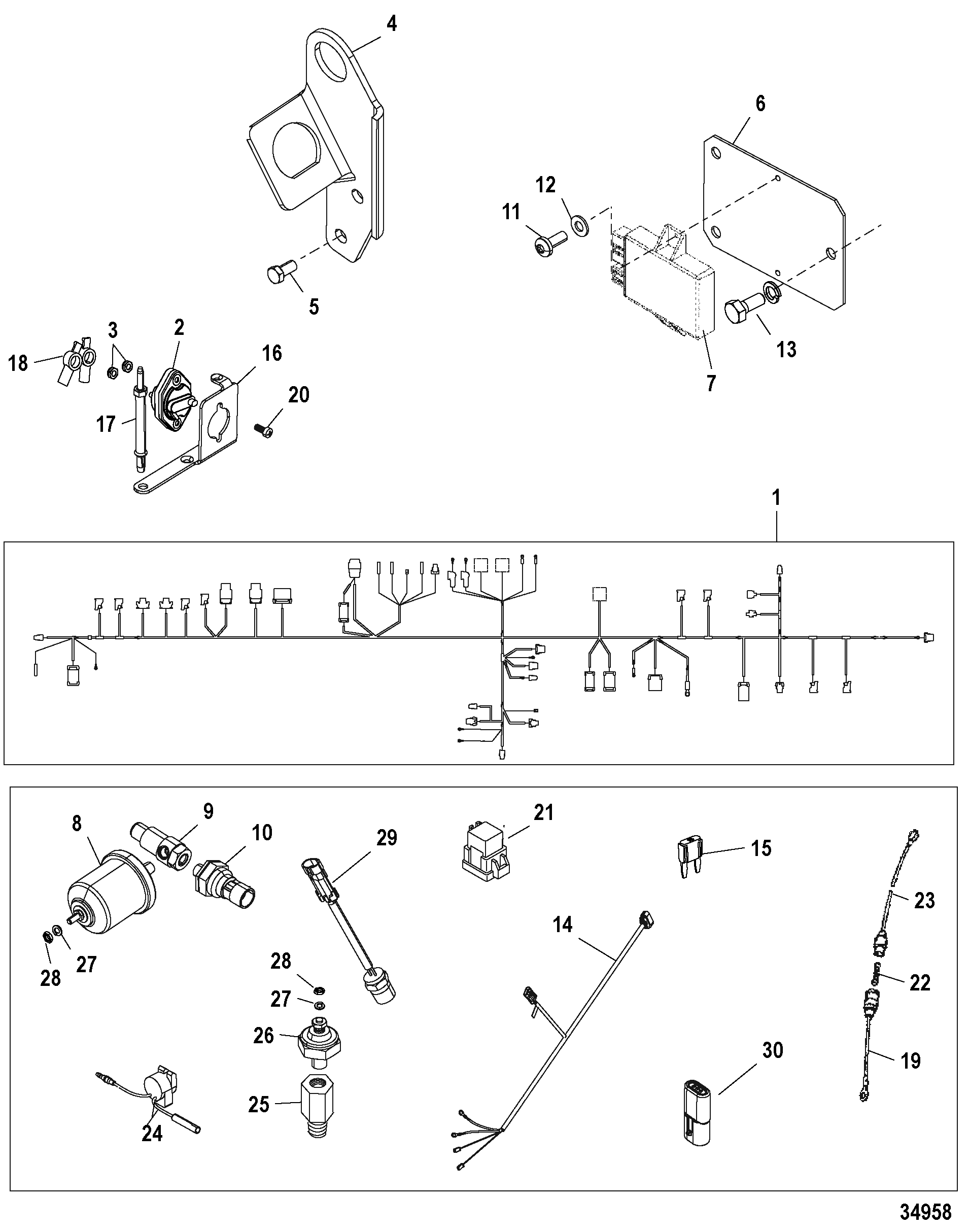

| 1 |
0084 |
OEM: 525-84-862163T05 |
HARNESS ASSEMBLY |
|
1 |
|
| 2 |
0088 |
865827T |
BREAKER Circuit - 50 Ampere Flag Reset |
[2A1723654] & Below |
1 |
|
| 2 |
0088 |
OEM: 530-11178A01 |
BREAKER Circuit - 50 Ampere Button Reset |
[2A172365 ] & Up |
|
|
| 3 |
0011 |
OEM: 525-11-826709106, GLM: 700-21163 |
NUT (#10-32) Stainless Steel |
[2A1723654] & Below |
2 |
|
| 3 |
0011 |
OEM: 525-11-68219 |
NUT (#10-32) Stainless Steel |
[2A172365 ] & Up |
2 |
|
| 4 |
0000 |
OEM: 525-899719T02 |
BRACKET Harness Mounting, Lifting Eye |
|
1 |
|
| 5 |
0010 |
OEM: 525-10-98261 |
SCREW (.375-16 x .750) |
|
2 |
|
| 6 |
0000 |
OEM: 525-861516 |
BRACKET |
|
1 |
|
| 7 |
0000 |
OEM: 530-861251T1 |
ICM MODULE Ignition Control Module |
(Alpha) |
1 |
|
| 7 |
0000 |
OEM: 525-861252T1 |
ICM MODULE Ignition Control Module |
(Bravo) |
1 |
|
| 8 |
0000 |
815425T |
SENDER ASSEMBLY Oil |
|
1 |
|
| 8 |
0000 |
OEM: 525-37293T |
SENDER ASSEMBLY Oil |
(Dual Station) |
1 |
|
| 9 |
0022 |
OEM: 525-22-864669 |
FITTING |
|
1 |
|
| 10 |
0087 |
864252 |
SWITCH |
|
1 |
|
| 11 |
0010 |
OEM: 525-10-861520 |
SCREW (#10-32 x .500) |
|
2 |
|
| 12 |
0012 |
OEM: 525-12-89302 |
WASHER (.203 x .406 x .040) |
|
2 |
|
| 13 |
0010 |
OEM: 525-10-657461 |
SCREW AND LOCKWASHER (.250- 20 x .625) |
|
3 |
|
| 14 |
0084 |
OEM: 525-84-866727T01 |
HARNESS ASSEMBLY |
|
1 |
|
| 15 |
0088 |
83296915 |
FUSE Mini - Blue - 15 Ampere |
|
1 |
|
| 15 |
0088 |
83296920 |
FUSE Mini - Yellow - 20 Ampere |
|
1 |
|
| 16 |
0000 |
OEM: 525-899719T01 |
BRACKET |
|
1 |
|
| 17 |
0016 |
OEM: 525-16-805459 |
STUD Mercathode Mounting |
|
1 |
|
| 18 |
0085 |
OEM: 525-85-89919 |
BOOT Insulator - Black |
|
2 |
|
| 19 |
0084 |
OEM: 525-84-95084A10 |
CABLE ASSEMBLY (5.00 Inches) Red |
(Bravo) |
1 |
|
| 20 |
0010 |
OEM: 525-10-830861 |
SCREW (#8-32 x .625) |
[2A1723654] & Below |
2 |
|
| 20 |
0010 |
45862 |
SCREW (#10-32 x .875) |
[2A172365 ] & Up |
2 |
|
| 21 |
0000 |
OEM: 530-882751 |
RELAY |
|
1 |
|
| 22 |
0088 |
OEM: 525-88-79091 |
FUSE 20 Ampere |
(Bravo) |
1 |
|
| 23 |
0084 |
OEM: 525-84-95084A9 |
CABLE ASSEMBLY (91.00 Inches) Red/Purple Strip |
(Bravo) |
1 |
|
| 24 |
0000 |
OEM: 525-816492A6 |
ALARM KIT |
|
1 |
|
| 25 |
0022 |
OEM: 525-22-32974 |
FITTING (.125-27) Adaptor |
|
1 |
|
| 26 |
0087 |
OEM: 530-805605A1 |
SWITCH ASSEMBLY |
|
1 |
|
| 27 |
0013 |
OEM: 525-13-26996 |
LOCKWASHER (#10) Stainless Steel |
|
2 |
|
| 28 |
0011 |
OEM: 525-11-68219 |
NUT (#10-32) Stainless Steel |
|
2 |
|
| 29 |
0087 |
OEM: 525-87-866089 |
THERMAL SWITCH (Normally Open 130-110 degrees) Turn Key Start |
|
1 |
|
| 30 |
0083 |
OEM: 525-83-865913A01 |
DIODE ASSEMBLY |
|
1 |
|
