4.3L CARB ALPHA-BRAVO - 0M615000 THRU 0W300012 - Intake Manifold

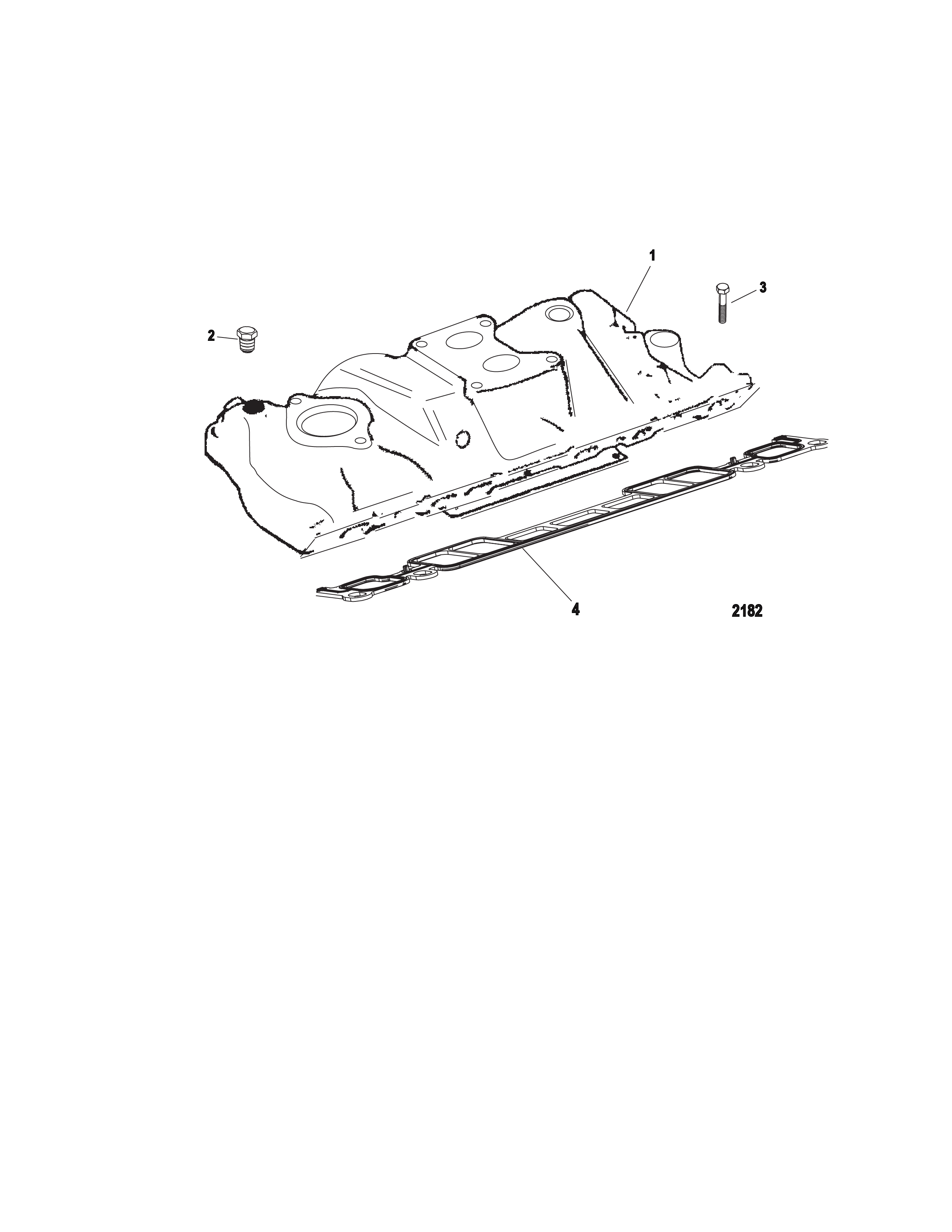

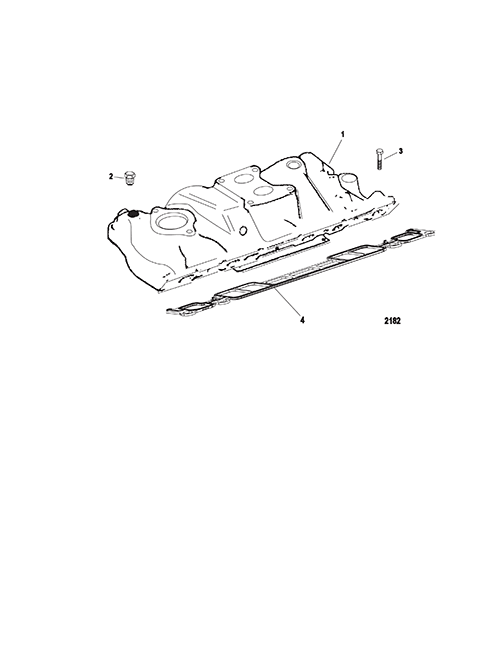

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 824324T1 MANIFOLD Intake (2 BBL) 1
2 0022 OEM: 525-22-75983 PLUG (.25-14)   1
3 0010 OEM: 525-10-835004 BOLT (.312-18 x 1.75) (.3125-18 X 1.75)   8
4 0027 8243261 GASKET SET Intake   1 [1]

PART NOTES:

[1] - Component of Engine Overhaul Gasket Set 824326A01

Component of Long Block Assembly -Long Block Part Numbers Listed on Service/Support Material Page
