496 Mag HO Model - Serial 0W650000 Thru 1A066165 - Fuel Module Components

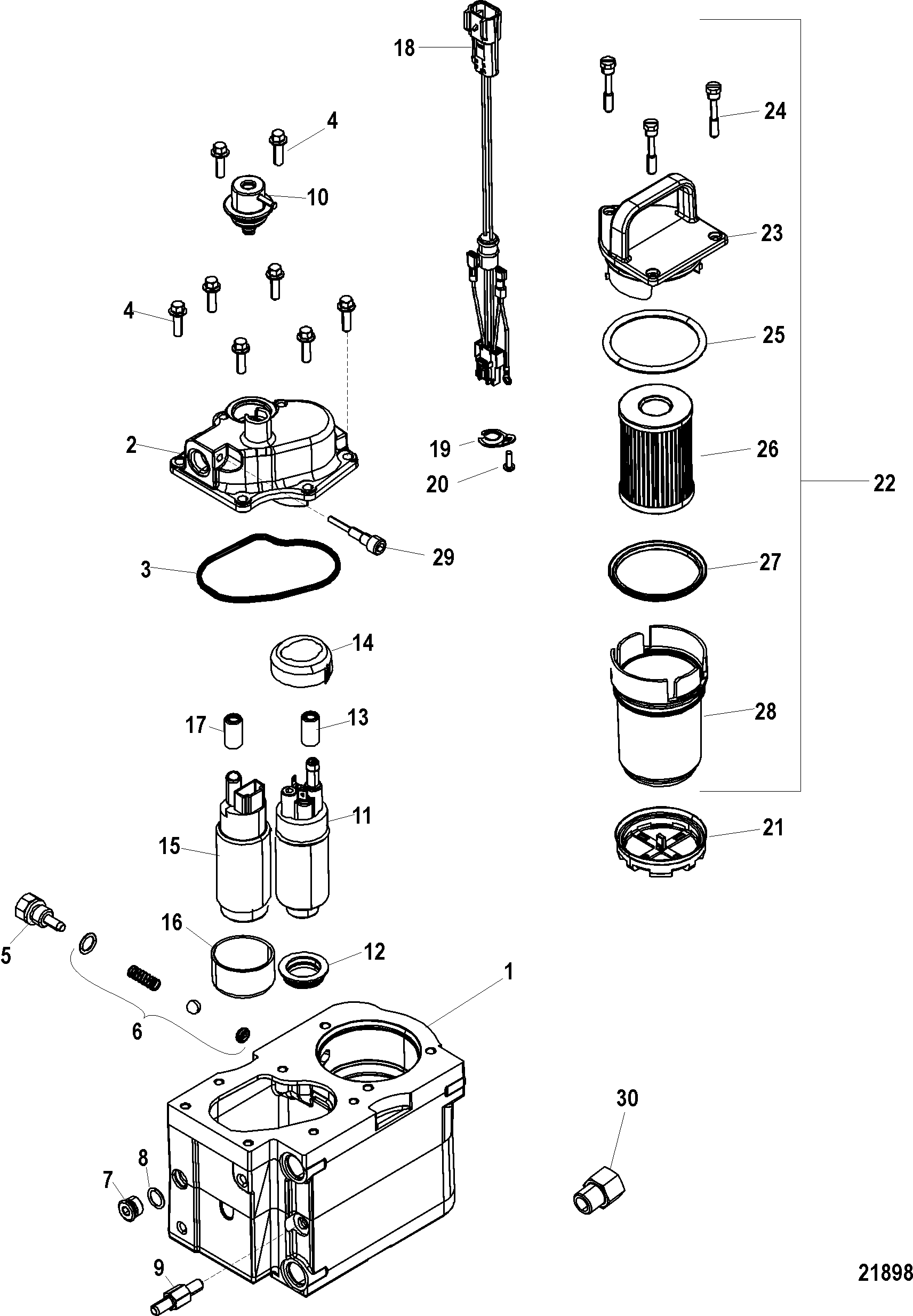

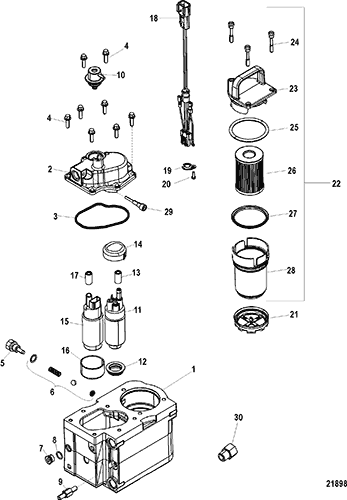

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 864650A05



MODULE KIT, Fuel Pump, Complete 1
This Part is No Longer Available
1 892664T01



HOUSING, Fuel Module 1 892664 This Part is No Longer Available
2 892677



COVER, Fuel Module Housing 1

3 26-892683



SEAL 1
6
4 10-892684



SCREW 8

5 892670A01



CHECK VALVE KIT 1

6 NSS



NOT SOLD SEPARATE, Check Valve 1
This Part is not sold separately
7 NSS



NOT SOLD SEPARATE, Plug 1
This Part is not sold separately
8 NSS



NOT SOLD SEPARATE, Seal 1
This Part is not sold separately
9 16-865326



STUD, (M8 x 30) 1

10 892681



REGULATOR 1

11 866170A01



PUMP ASSEMBLY, Fuel - Low Pressure 1

12 NSS



NOT SOLD SEPARATE, Seal 1
This Part is not sold separately 6
13 NSS



NOT SOLD SEPARATE, Seal 1
This Part is not sold separately 6
14 NSS



NOT SOLD SEPARATE, Isolator, Lift Pump 1
This Part is not sold separately 6
15 866169T01



PUMP ASSEMBLY, Fuel - High Pressure 1 866169A01
16 NSS



NOT SOLD SEPARATE, Isolator 1
This Part is not sold separately 6
17 NSS



NOT SOLD SEPARATE, Seal 1
This Part is not sold separately 6
18 84-8M0056175



HARNESS ASSEMBLY 1 84-895013A02
19 NSS



NOT SOLD SEPARATE, Retainer 1
This Part is not sold separately
20 NSS



NOT SOLD SEPARATE, Screw 1
This Part is not sold separately
21 35-892665



FILTER 1

22 892687A02



CARTRIDGE ASSEMBLY, Fuel Filter 1

23 NSS



NOT SOLD SEPARATE, Cap, Fuel Filter Cartridge 1
This Part is not sold separately
24 NSS



NOT SOLD SEPARATE, Screw 3
This Part is not sold separately
25 NSS



NOT SOLD SEPARATE, Seal 1
This Part is not sold separately 6
26 35-866171A01



FILTER 1

27 NSS



NOT SOLD SEPARATE, Seal 1
This Part is not sold separately 6
28 NSS



NOT SOLD SEPARATE, Cup, Fuel Filter Cartridge 1
This Part is not sold separately
29 10-866114



SCREW, (.250-28) Special 1 10-861303
30 22-88517



FITTING, Reducing 1
