200 EFI PRO MAX and SUPER MAG - Serial 0D935000 Thru 0G610079 - Transom Brackets

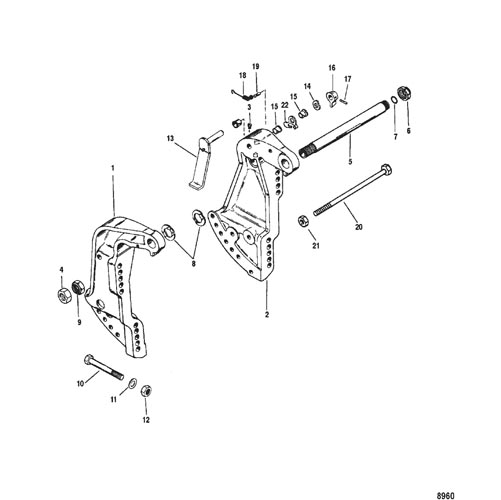

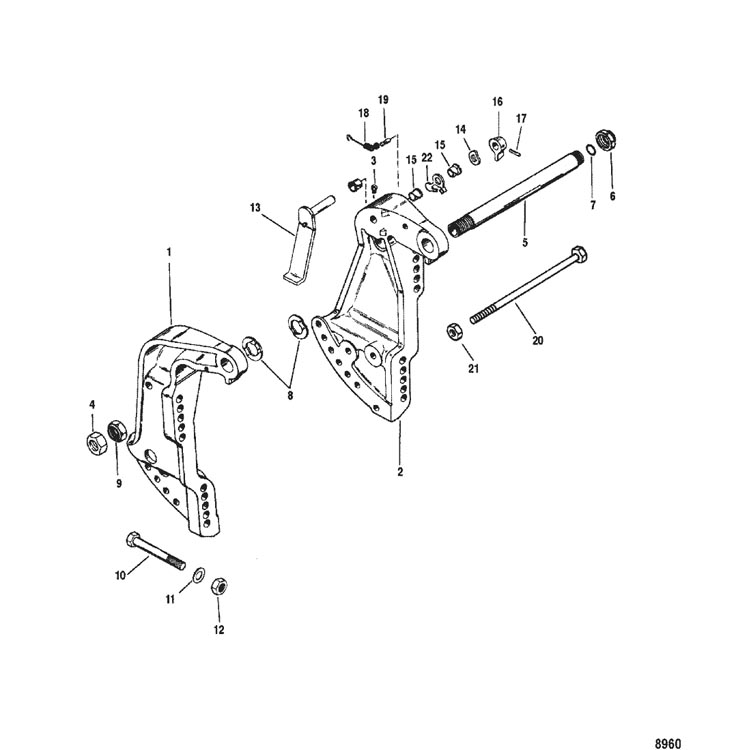

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Cowling
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Detonation Controller/Temperature Sensor
- Driveshaft Housing and Exhaust Tube
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel management System(0G366999 and Below)
- Fuel Management System(0G366999 and Below)
- Fuel Management System(0G367000 and Up)
- Fuel Management System(0G367000 and Up)
- Fuel Pump(Aluminum Body)
- Fuel Pump(Plastic Body With Loose Fittings)
- Fuel Pump(Plastic Body With Molded Fittings)
- Gear Housing(Drive) Standard/Counter Rotation-SportMaster
- Gear Housing(Drive)Torque Master 1.87:1/2:1
- Gear Housing(Driveshaft)(1.78:1)
- Gear Housing(Driveshaft)(CLE-1.87:1/2:1)
- Gear Housing, Propeller Shaft - 1.78:1 Gear Ratio
- Gear Housing, Propeller Shaft - CLE-1.87:1/2:1 Gear Ratio
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Torque Master 1.87:1/2:1
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm
- Throttle Lever and Shift Shaft
- Transom Brackets
- Trim Solenoid Plate(0G205106 and Below)
- Trim Solenoid Plate(0G205107 and Up)
- Wiring Harness and Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 3401-8718F7 | BRACKET, Transom | 1 | No Longer Available | |||||
| 2 | 3400-8716A8 | BRACKET ASSEMBLY, Transom | 1 | No Longer Available | |||||
| 1 | 3401-8718F8 | BRACKET, Transom | 1 | No Longer Available | |||||
| 2 | 3400-8716A9 | BRACKET ASSEMBLY, Transom | 1 | No Longer Available | |||||
| 3 | 22-98727 | FITTING, Grease (PORT) | 1 | ||||||
| 4 | 11-8M0041651 | NUT, (.875-14) | 1 | 37984 | |||||
| 5 | 826125A1 | TUBE KIT, Tilt | 1 | No Longer Available | |||||
| 6 | 11-826135 | NUT, (1.00-14) Nylon Insert | 1 | ||||||
| 7 | 25-45711 | 676-9-76553 | O-RING, (.612 x .103) | 1 | |||||
| 8 | 13-88750 | WASHER | 2 | ||||||
| 9 | 11-826164 | NUT, (.875-14) | 1 | ||||||
| 10 | 10-677551 | SCREW, (.500-20 x 4.500) | 4 | ||||||
| 10 | 10-677552 | SCREW, (.500-20 x 6.500) | 4 | ||||||
| 11 | 12-28421 | WASHER, (1.5 x 3.05 x 0.13) Stainless Steel | 4 | ||||||
| 12 | 11-91962 | NUT, (.500-20) | 4 | No Longer Available | |||||
| 13 | 99629T2 | LEVER ASSEMBLY | 1 | 99629A2 | |||||
| 14 | 13-99611 | WAVE WASHER | 1 | ||||||
| 15 | 23-65830 | NYLINER | 2 | 23-29740 23-26850 |
|||||
| 16 | 99633 | KNOB | 1 | ||||||
| 17 | 17-99615 | PIN, Groove | 1 | 17-39049 | |||||
| 18 | 24-99622 | SPRING | 1 | ||||||
| 19 | 17-99604 | PIN, Groove | 1 | ||||||
| 20 | 10-96930A1 | BOLT ASSEMBLY | 1 | ||||||
| 21 | 11-23161 | NUT, (.375-24) | 1 | ||||||
| 22 | 814207 | STOP | 1 | No Longer Available |
