200 VERADO 4-STROKE 6 CYL - Serial 2B144123 and Up - Rear Cowl

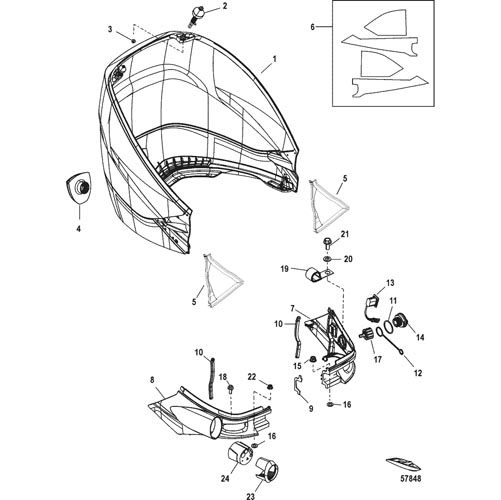

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Decals - Top Cowl
- Driveshaft Housing
- Electrical Box Components
- Flywheel and Cover
- Fuel Filter Kits
- Fuel Supply Module
- Gear Housing, Driveshaft, 4.80 Torpedo
- Gear Housing, Prop Shaft - Std Rot, 4.80 Torpedo
- Ground Cable Kit(899712A01)
- Induction Components
- Lower Cowl
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Transom Assembly
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 Thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler
- Starter Motor
- Steering Helm Kit-Standard (892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 100-8M0100175 | REAR COWL ASSEMBLY, Black Non-Decaled | 1 | ||||||
| 2 | 17-888961A01 | PIN ASSEMBLY | 2 | ||||||
| 3 | 11-892233 | NUT, (M6) Stainless Steel | 2 | ||||||
| 4 | 885360 | IDLE RELIEF | 1 | ||||||
| 5 | 8M0100563 | SEAL ASSEMBLY, Rear Cowl, Port and Starboard | 1 | ||||||
| 6 | NSS | SEAL, Starboard | 1 | Not Sold Separate | |||||
| - | 100-8M0100172 | FRONT COWL ASSEMBLY, Port and Starboard, Mercury | 1 | ||||||
| 7 | NSS | Front Cowl, Port | 1 | Not Sold Separate | |||||
| 8 | NSS | Front Cowl, Starboard | 1 | Not Sold Separate | |||||
| 9 | 27-892315 | GASKET | 1 | ||||||
| 10 | 8M0043266 | SEAL | 2 | ||||||
| 11 | 25-888957 | O-RING | 1 | ||||||
| 12 | 889823001 | TETHER | 1 | ||||||
| 13 | 87-8M0042300 | SWITCH, Trim | 1 | ||||||
| 14 | 22-888958001 | PLUG, Flush | 1 | ||||||
| 15 | 11-892233 | NUT, (M6) Stainless Steel | 1 | ||||||
| 16 | 12-4002316 | WASHER | 2 | ||||||
| 17 | 22-885361A01 | FITTING ASSEMBLY, Flush | 1 | ||||||
| 18 | 10-4006731 | SCREW, (M6 x 16) | 1 | ||||||
| 19 | 54-858951A01 | CLAMP KIT | 1 | ||||||
| 20 | 12-4002316 | WASHER | 1 | ||||||
| 21 | 10-4006731 | SCREW, (M6 x 16) | 1 | ||||||
| 22 | 11-892233 | NUT, (M6) Stainless Steel | 1 | ||||||
| 23 | 8M0043519 | ADAPTOR | 1 | ||||||
| 24 | 25-897169 | GROMMET | 1 | ||||||
| 25 | 8M4501634 | SOUND BLANKET KIT | 1 |
