| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |

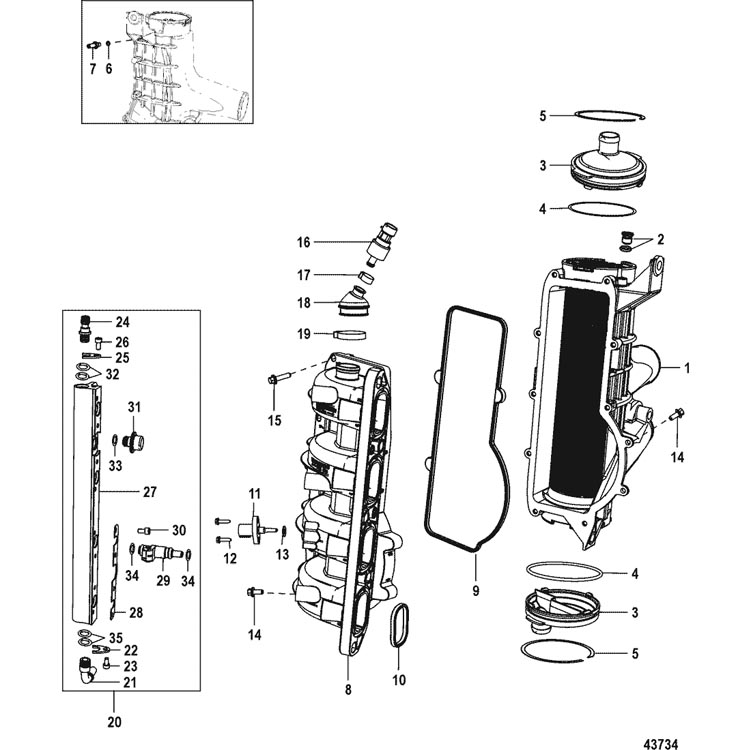

8M0092409 |
|
|
|
|
MODULE ASSEMBLY, Integrated Air Fuel |
1 |
8M0053762 |
|
| 1 |
8M0092461 |
|
|
|
|
CAC ASSEMBLY |
1 |
8M0046691 |
|
| 2 |
19-8M0048079 |
|
|
|
|
PLUG, Zero Leak (M8 x 1.0), Secondary Pressure |
1 |
8M0039519 |
|
| 3 |
8M0046698 |
|
|
|
|
END CAP ASSEMBLY |
2 |
|
|
| 4 |
25-8M0039516 |
|
|
|
|
O-RING |
1 |
|
|
| 5 |
53-8M0039464 |
|
|
|
|
RING, Retaining |
1 |
|
|
| 6 |
25-8M0040116 |
|
|
|
|
O-RING |
1 |
|
|
| 7 |
22-8M0039993 |
|
|
|
|
FITTING |
1 |
|
|
| 8 |
NSS |
|
|
|
|
Not Sold Separate |
1 |
|
Not Sold Separate |
| 9 |
26-896663 |
|
|
|
|
SEAL, Manifold to CAC |
1 |
|
|
| 10 |
26-895020 |
|
|
|
|
SEAL, Manifold Head |
4 |
|
|
| 11 |
891663001 |
|
|
|
|
SENSOR ASSEMBLY, Temperature |
1 |
|
|
| 12 |
10-895054 |
|
|
|
|
SCREW, (M4 x 16 MM) |
2 |
|
|
| 13 |
25-892317001 |
|
|
|
|
O-RING |
1 |
|
|
| 14 |
10-88552516 |
|
|
|
|
SCREW, (M6 x 16 MM) Stainless Steel, Fuel Rail to Manifold |
3 |
|
|
| 14 |
10-88552516 |
|
|
|
|
SCREW, (M6 x 16 MM) Stainless Steel, CAC to Manifold |
2 |
|
|
| 15 |
10-88552525 |
|
|
|
|
SCREW, (M6 x 25 MM) Stainless Steel, Manifold to CAC |
9 |
|
|
| 16 |
8M6000639 |
|
|
|
|
SENSOR |
1 |
8M0010248 |
|
| 17 |
54-13791 |
|
676-9-35604 |
|
|
CLAMP, (15.7 mm) |
1 |
888988015 |
|
| 18 |
8M0041053 |
|
|
|
|
BOOT, MAP Sensor |
1 |
|
|
| 19 |
54-888988001 |
|
|
|
|
CLAMP, (36.1 mm) |
1 |
|
|
| 20 |
8M0041074 |
|
|
|
|
FUEL RAIL ASSEMBLY |
1 |
|
|
| 21 |
32-8M0047054 |
|
|
|
|
TUBE KIT, Fuel Inlet |
1 |
|
|
| 22 |
8M0041097 |
|
|
|
|
BRACKET |
1 |
|
|
| 23 |
10-8M0041100 |
|
|
|
|
SCREW, (M5 x 10) |
1 |
|
|
| 24 |
8M0047053 |
|
|
|
|
VALVE KIT, Shrader |
1 |
|
|
| 25 |
8M0041097 |
|
|
|
|
BRACKET |
1 |
|
|
| 26 |
10-8M0041100 |
|
|
|
|
SCREW, (M5 x 10) |
1 |
|
|
| 27 |
NSS |
|
|
|
|
FUEL RAIL |
1 |
|
Not Sold Separate |
| 28 |
8M0041096 |
|
|
|
|
BRACKET, Fuel Injector Mounting |
2 |
|
|
| 29 |
8M0041571 |
|
|
|
|
INJECTOR ASSEMBLY, Fuel |
4 |
|
|
| 30 |
10-8M0041100 |
|
|
|
|
SCREW, (M5 x 10) |
8 |
|
|
| 31 |
8M0041101 |
|
|
|
|
DAMPER |
1 |
|
|
| 32 |
NSS |
|
|
|
|
O-RING, Schrader Valve |
2 |
|
Not Sold Separate |
| 33 |
25-851889 |
|
|
|
|
O-RING, Damper |
1 |
|
|
| 34 |
25-851889 |
|
|
|
|
O-RING, Fuel Injector |
4 |
|
|
| 35 |
NSS |
|
|
|
|
O-RING, Tube |
2 |
|
Not Sold Separate |
