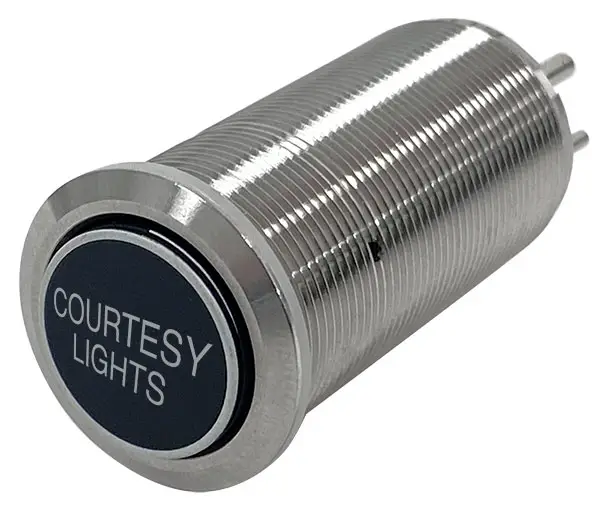

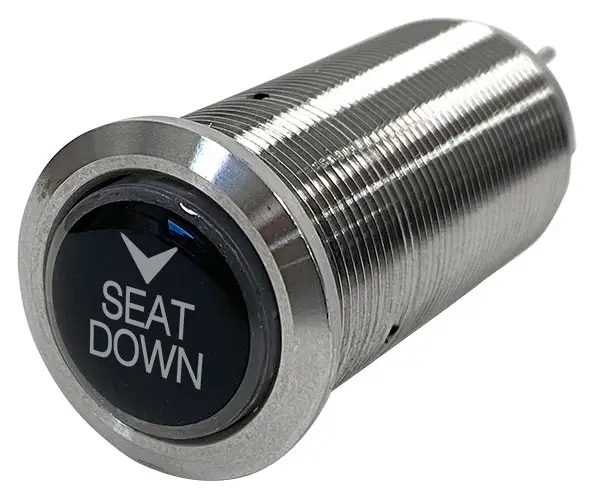

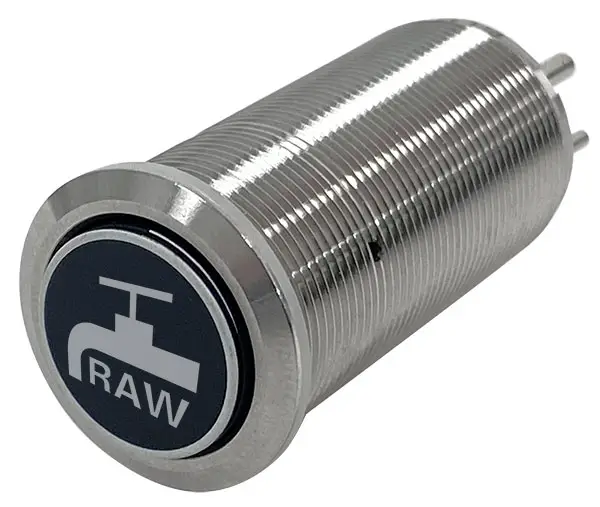

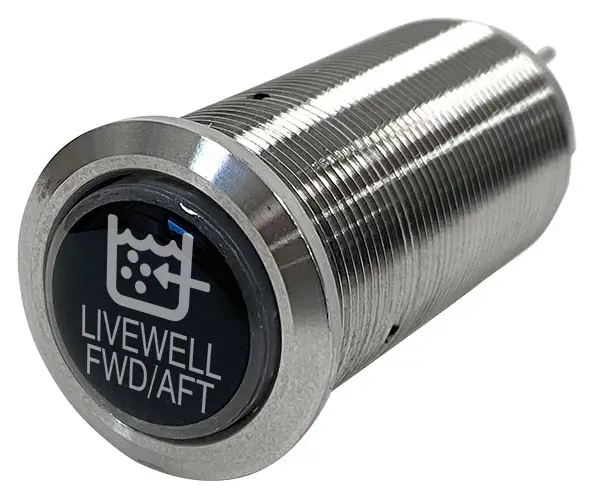

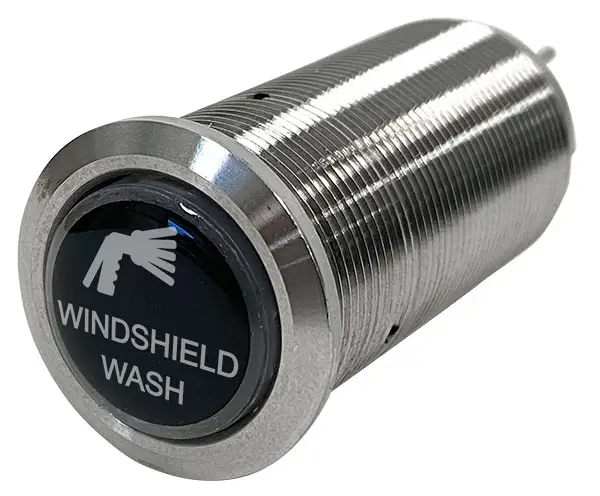

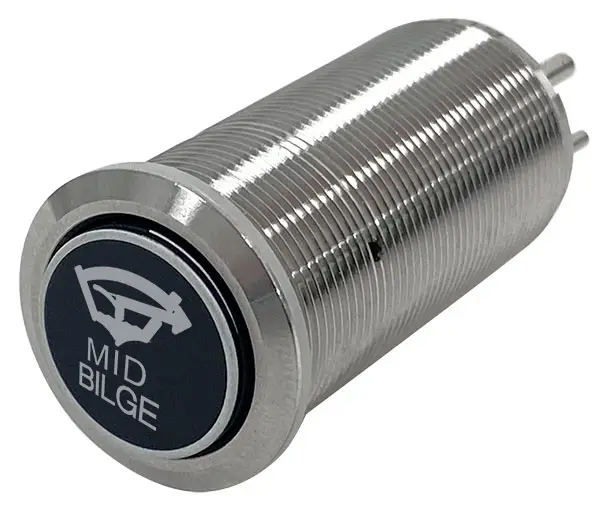

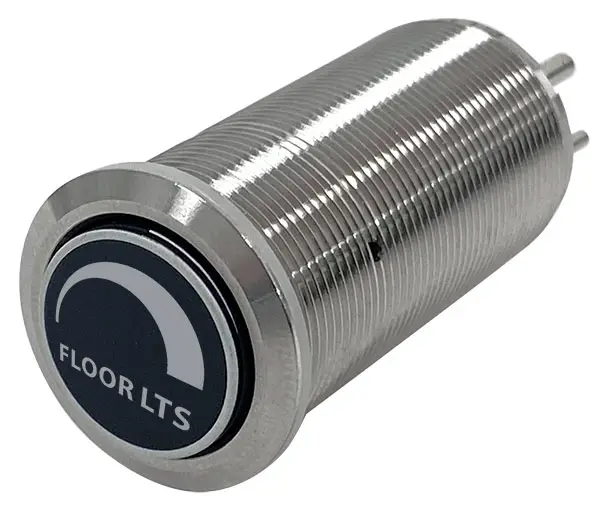

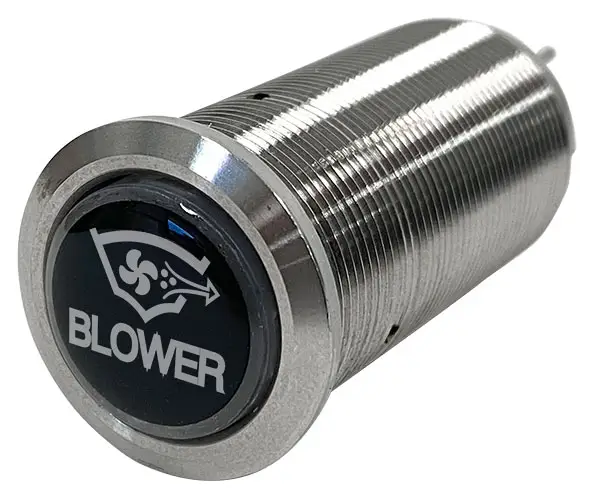

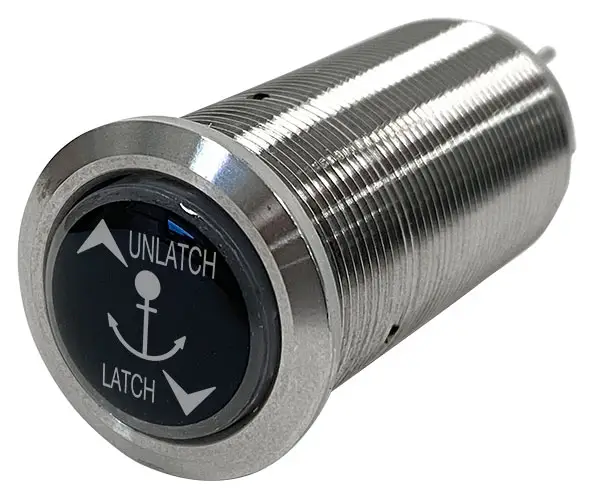

Bluewater 22mm LED Lit Electronic Push Button Switches with Label Options and Wire Harness

The latest in LED lit electronic switches from Bluewater Enterprises. These switches feature easily swappable buttons so you change functions easily. There are over 100 Switch Function Icons to choose from,  and for an extra touch, our 7/8" bezels fit these perfectly, see the related parts! The harness plug is easily removed for quick switch type changes and the connection is waterproof. The entire stainless steel switch body is threaded for use in dashes up to 1.5" thick.



  • 20 AMP Rating (1 Channel), 10 AMP Rating (2 Channel)
  • Multiple Switch Options
  • 100 + Label Options
  • Switch button can be removed and replaced.
  • 120A Inrush Surge Protection
  • Ultra Bright LED's
  • Laser Etched Logos available
  • IP69K Waterproof Rated
  • 316 Stainless Steel Body
  • Electronic Actuator
  • Mechanically rated for 50,000 cycles
  • Switches are LED Backlit
  • Plug and Wire Harness with 12" wire lead INCLUDED.
  • Caution: Momentary switch applications controlling solenoids may require a 5 amp diode on the output wire of the switch in order to prevent damage to the mosfet switch circuit.
  • NOTE: Momentary Switch should not be used as an Engine Start switch
3D Model Viewer:
Click Here to View 3D Model

Note: 3D Models are large files and make take a while to load especially on slow connections. 3D Model display requires a modern smartphone or desktop computer. Older devices may have poor performance.

Videos On This Product:
Reviews On This Product:
(0.00)stars out of 5
# of Ratings: 0

Making selections in the following sections may change the final product price.
Blue Off / Red On
Blue Off / Red On, NOTE: Momentary Switch should not be used as an Engine Start switch
Blue Off / Green On / Red On
Blue Off / Green On / Red On
Blue Off / Green On / Red On / Yellow Both On
Blue Off / Green On / Red On
Blue Off / Red On, NOTE: The dimmer switch does not feature inrush protection, it's only for dimming the lights on other switches.
Blue Off / Red On

Summary

  • Off / On Switch (IN STOCK)
  • Blank Laser Logo
  • Plastic
$76.99
$64.99
$64.99
516-9221000991
