Drive Parts - Gear Set and Kit

Key Features:

• Includes Water Pump and Complete Seal Kit

Additional Details:

• For:: Mercruiser R/MR/Alpha I

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-2945	Chrysler/Force/US Marine 12-19183 F50556 F8077 F8186 Johnson/Evinrude Outboard 307552 Mallory 9-60101 9-60102 Mercruiser Stern Drive 12-19183 12-191832 12-191833 12-19183B 12-20260 12-20260B Mercury Marine 12-19183 12-191832 12-191833 12-20260	2	Drain Screw Gasket		N/A
18-2340	GLM 30010 Mercruiser Stern Drive 12-31266 Mercury Marine 12-31266	1	Shift Shaft Washer		N/A
18-2076	Chrysler/Force/US Marine 26-12224 26-F697118 GLM 85700 Mallory 9-76101 Mercruiser Stern Drive 26-12224 Mercury Marine 26-12224	1	Oil Seal		N/A
18-7159	GLM 83440 Mallory 9-76544 Mercruiser Stern Drive 25-31534 25-48451 Mercury Marine 25-31534	1	O-Ring		N/A
18-2002	Chrysler/Force/US Marine 26-76868 GLM 85130 Honda Outboard 91252-ZW1-003 Johnson/Evinrude Outboard 0320862 Mallory 9-76202 Mercruiser Stern Drive 26-30550 26-76868 Mercury Marine 26-30550 26-70019 26-73838 26-76868 OMC Stern Drive 320862	1	Oil Seal		N/A
18-3109	GLM 12820 Mallory 9-43623 Mercruiser Stern Drive 23-29804 23-29804T 23-52928 Mercury Marine 23-29804 23-29804T	1	Water Tube Guide		N/A
18-2154	GLM 21010 Mallory 9-76133 Mercruiser Stern Drive 23-30617A1 23-30617A2 23-8M0112749 Mercury Marine 23-30617A1	1	Shift Shaft Housing Bushing		N/A
18-3116	GLM 12410 Mallory 9-43211 Mercruiser Stern Drive 46-48743A1 46-64141A1 46-96148A1 46-96148T1 Mercury Marine 46-48743A1 46-64141A1 46-96148 46-96148A1 46-96148T1	1	Water Pump Housing		N/A
18-3017	Chrysler/Force/US Marine 47-803631T 47-F694065 GLM 89840 Mallory 9-45306 Mercruiser Stern Drive 47-30221 47-65960 47-89984 47-89984T4 Mercury Marine 47-30221 47-65960 47-85460 47-89984 47-899842 47-899844 47-89984T3 47-89984T4	1	Impeller		N/A
18-2914	GLM 31010 Mallory 9-60034 Mercruiser Stern Drive 27-32433 27-856081 27-8M0090319 Mercury Marine 27-30603 27-32433 27-85608 27-856081 27-8M0090319	1	Water Pump Gasket		N/A
18-7158	GLM 81160 Johnson/Evinrude Outboard 309731 310585 Mallory 9-76543 Mercruiser Stern Drive 25-30613 25-846357 Mercury Marine 25-30613 25-846357 OMC Stern Drive 310585 310967	1	O-Ring		N/A
18-7176	Chrysler/Force/US Marine 25-90011 25-F74305 F694555 F74035 F74305-1 GLM 81390 Mallory 9-76554 Mercruiser Stern Drive 25-896523 25-90011 Mercury Marine 25-896523 25-90011	1	O-Ring		N/A
18-2944	GLM 85140 Mallory 9-76512 Mercruiser Stern Drive 26-45577 26-455771 26-45577B 26-45577B1	1	Seal Ring Gasket		N/A
18-7173	Chrysler/Force/US Marine 25-30224 GLM 82250 Johnson/Evinrude Outboard 310327 Mallory 9-76501 Mercruiser Stern Drive 25-30224 25-30224Q Mercury Marine 25-27018 25-30224 25-30224Q OMC Stern Drive 310327	1	O-Ring		N/A
18-2826	GLM 31040 Mallory 9-60036 Mercruiser Stern Drive 27-33146 27-856704 Mercury Marine 27-33146 27-85610 27-856101	1	Water Pump Base Gasket		N/A
18-2915	GLM 31020 Mallory 9-60035 Mercruiser Stern Drive 27-32434 27-856091 27-858524 Mercury Marine 27-30604 27-32434 27-85609 27-856091 27-858524	1	Water Pump Gasket		N/A
18-3117	GLM 12510 Mallory 9-43400 Mercruiser Stern Drive 32435 Mercury Marine 30605 32435 324351 32435B	1	Impeller Plate		N/A
18-7162	Chrysler/Force/US Marine 25-33145 GLM 82260 Johnson/Evinrude Outboard 302337 Mallory 9-76547 Mercruiser Stern Drive 25-32424 25-33145 Mercury Marine 25-33145 Mercury Sport Jet 25-33145 OMC Stern Drive 302337 302377 3852044 Sears 25-33145 Volvo Penta 3852044	1	O-Ring		N/A
18-2919	GLM 31050 Mallory 9-60031 Mercruiser Stern Drive 27-426311 Mercury Marine 27-42631 27-426311	1	Water Pump Gasket		N/A
18-2801	GLM 31030 Mallory 9-60028 Mercruiser Stern Drive 27-32438 Mercury Marine 27-32438	1	Water Pump Gasket		N/A
18-7426	GLM 21330 Mallory 9-76562 Mercruiser Stern Drive 25-30271 Mercury Marine 25-30271 Mercury Sport Jet 25-30271	1	O-Ring		N/A
18-2013	GLM 85040 Mallory 9-76108 Mercruiser Stern Drive 26-16977 26-31507 26-79884 802276 Mercury Marine 26-16977 26-20465 26-31507 26-79884 802276	1	Oil Seal		N/A
18-2014	Chrysler/Force/US Marine 26-F694305 GLM 85070 Mallory 9-76109 Mercruiser Stern Drive 26-33144 26-77634 26-89238 Mercury Marine 26-33144< li> 26-77634 26-89238	1	Oil Seal		N/A
18-2009	GLM 85050 Mallory 9-76105 Mercruiser Stern Drive 26-31249 26-46021 26-89236 26-892361 Mercury Marine 26-25776 26-31249 26-89236	1	Oil Seal		N/A
18-7153	GLM 81180 Mallory 9-76505 Mercruiser Stern Drive 25-25439 Mercury Marine 25-25439 Mercury Race Outboard 25-25439 Mercury Race Sterndrive 25-25439 OMC Stern Drive 3852565 911851 Volvo Penta 3852565 997368	1	O-Ring		N/A

Additional Details:

• Drive Gear: 17 Teeth
• Driven Gear: 19 Teeth
• Ratio: 1.84:1
• For: V-6 & 470/485 (4 cyl. etc.) and Gen II (s/n 0K999999 & Below)

Interchanges/Replaces

GLM

• 11230

Mercruiser Stern Drive

• 43-75324A2
• 43-75325A3

Key Features:

• Service kit for Borg-Warner Velvet Drive 71 and 72 series transmission

Additional Details:

• Includes: Gaskets, Seals. Sealing Rings, Bronze and Steel Plates

Additional Details:

• Ratio: 1.47:1
• For: Gen II (1998 & Up) (s/n 0L100040 & Up)

Interchanges/Replaces

Mercruiser Stern Drive

• 43-803103T1

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-6351	Mercruiser Stern Drive 43-853641A2	1	Upper Unit Gear Set		N/A

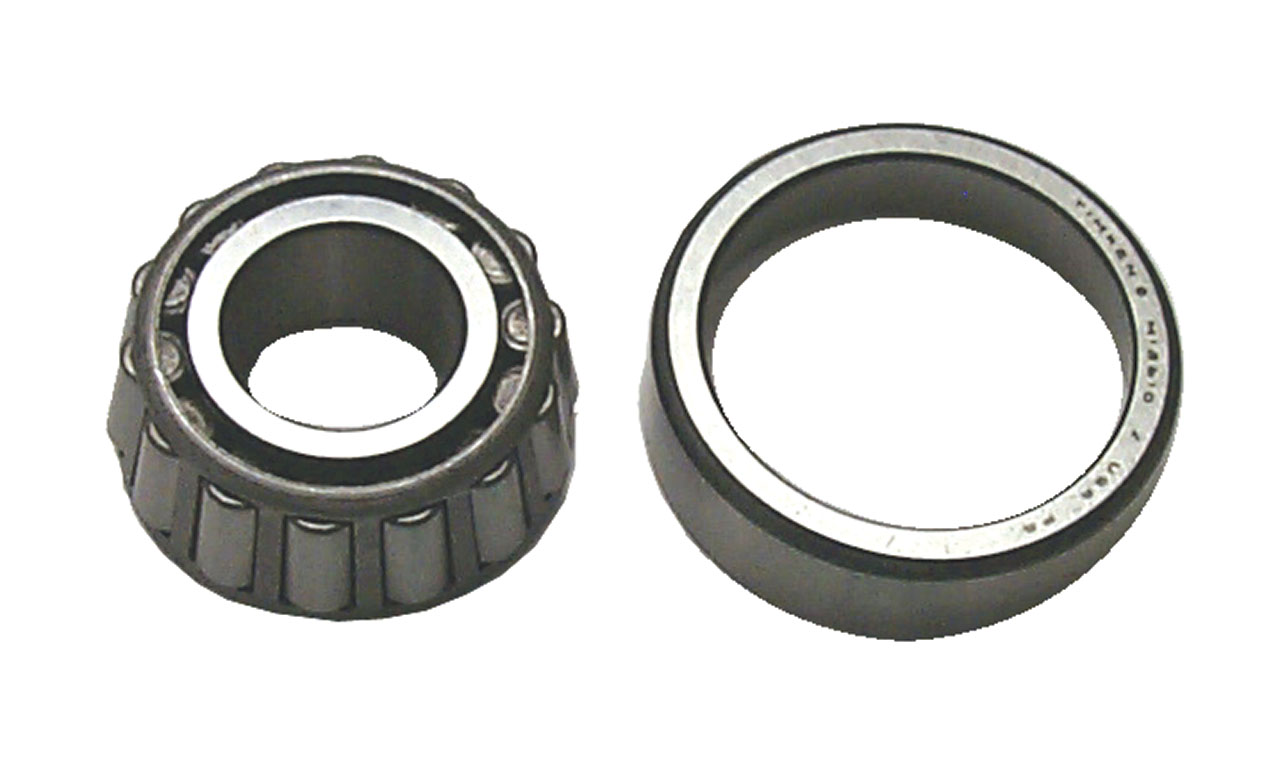

18-1179	GLM 21511 Mallory 9-75106 Mercruiser Stern Drive 31-32575A1 31-32575T1 Mercury Marine 31-32575A1 31-32575T1	1	Tapered Roller Bearing		N/A
18-1156	Chrysler/Force/US Marine 31-30894A1 GLM 21820 Honda Outboard 91051-ZW1-003 Mallory 9-75118 Mercruiser Stern Drive 31-30894A1 Mercury Marine 31-30894A1	1	Foward Gear Bearing		N/A
18-3712	GLM 28330 Mallory 9-78107 Mercruiser Stern Drive 12-45810	1	Carrier Nut Washer		N/A
18-3713	Chrysler/Force/US Marine 11-F1920 F1348 F1881 GLM 28360 Mallory 9-78117 Mercruiser Stern Drive 11-22339 11-36084 11-97522 Mercury Marine 11-22339	1	Lock Nut		N/A
18-2644	GLM 87501 Mallory 9-74302 Mercruiser Stern Drive 26-88397A1	1	Upper Unit Seal Kit		N/A
18-2619-1	GLM 39620 Mallory 9-62601 9-62601-25 Mercruiser Stern Drive 27-64818A2 27-64818A3 27-94996 27-949962 27-94996A1 27-94996A2 27-94996Q2	1	Outdrive Gasket Set		N/A

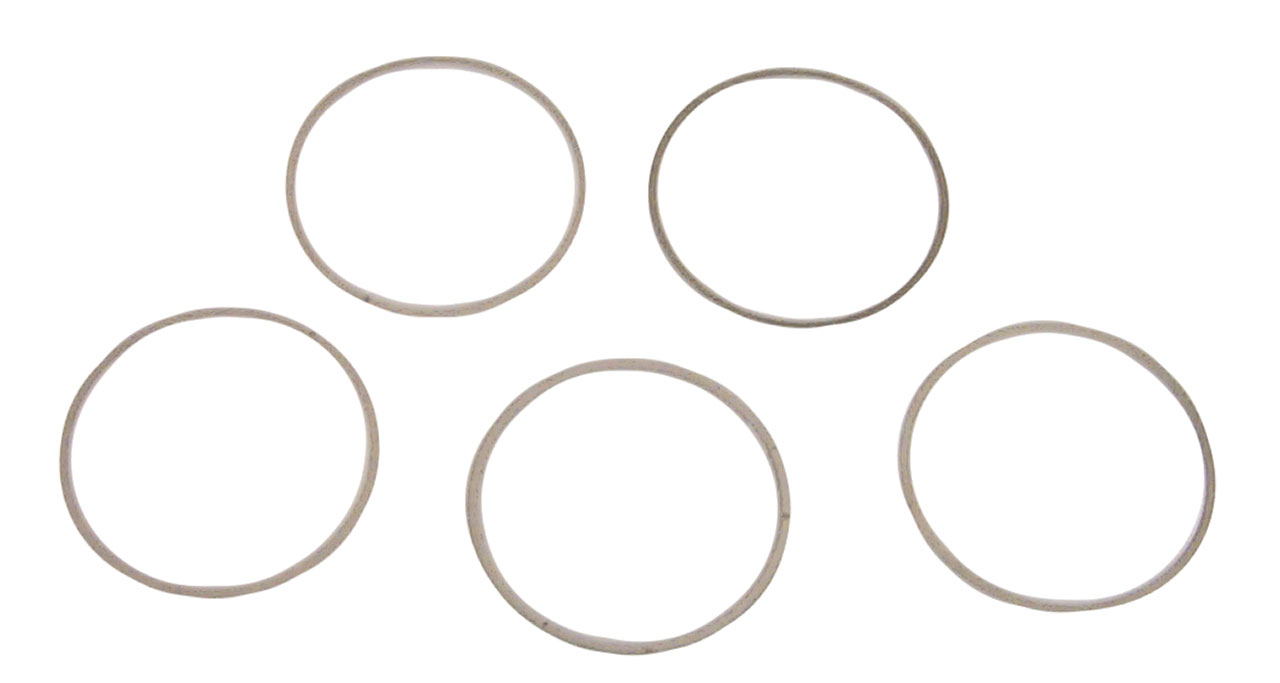

18-2282	GLM 23261 Mercruiser Stern Drive 15-32563A1 Mercury Marine 15-32563A1	1	Shim Set		N/A
18-2292	GLM 23280 Mercruiser Stern Drive 15-35980A1	1	Shim Kit		N/A
18-2293	GLM 23270 Mercruiser Stern Drive 15-23097A1 15-36178A02 15-36178A1 15-39899A1	1	Shim Kit		N/A
NSS	Mercruiser Stern Drive 25-853649	1	Spacer, Bearing Cup	No Image	N/A

Additional Details:

• Ratios: 1.94:1 & 2.40:1
• For: Gen II (1998 & Up) (s/n 0L100040 & Up)

Interchanges/Replaces

Mercruiser Stern Drive

• 43-803106T1

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-6352	Mercruiser Stern Drive 43-853642A2	1	Upper Unit Gear Set		N/A
18-1179	GLM 21511 Mallory 9-75106 Mercruiser Stern Drive 31-32575A1 31-32575T1 Mercury Marine 31-32575A1 31-32575T1	1	Tapered Roller Bearing		N/A
18-1156	Chrysler/Force/US Marine 31-30894A1 GLM 21820 Honda Outboard 91051-ZW1-003 Mallory 9-75118 Mercruiser Stern Drive 31-30894A1 Mercury Marine 31-30894A1	1	Foward Gear Bearing		N/A
18-1161	GLM 21540 Johnson/Evinrude Outboard 983891 Mallory 9-75122 Mercruiser Stern Drive 31-35990A1 OMC Stern Drive 983891	1	Tapered Roller Bearing		N/A
18-3712	GLM 28330 Mallory 9-78107 Mercruiser Stern Drive 12-45810	1	Carrier Nut Washer		N/A
18-3713	Chrysler/Force/US Marine 11-F1920 F1348 F1881 GLM 28360 Mallory 9-78117 Mercruiser Stern Drive 11-22339 11-36084 11-97522 Mercury Marine 11-22339	1	Lock Nut		N/A
18-2644	GLM 87501 Mallory 9-74302 Mercruiser Stern Drive 26-88397A1	1	Upper Unit Seal Kit		N/A
18-2619-1	GLM 39620 Mallory 9-62601 9-62601-25 Mercruiser Stern Drive 27-64818A2 27-64818A3 27-94996 27-949962 27-94996A1 27-94996A2 27-94996Q2	1	Outdrive Gasket Set		N/A
18-2282	GLM 23261 Mercruiser Stern Drive 15-32563A1 Mercury Marine 15-32563A1	1	Shim Set		N/A
18-2292	GLM 23280 Mercruiser Stern Drive 15-35980A1	1	Shim Kit		N/A
18-2293	GLM 23270 Mercruiser Stern Drive 15-23097A1 15-36178A02 15-36178A1 15-39899A1	1	Shim Kit		N/A
NSS	Mercruiser Stern Drive 25-853649	1	Spacer, Bearing Cup	No Image	N/A
