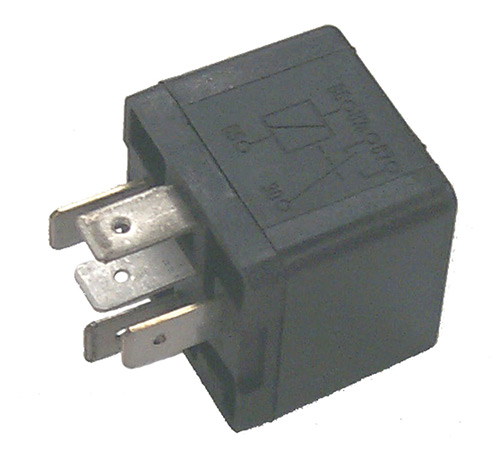

Power Trim Relay

Key Features:

• 5 Terminal, 12 Volts
• Single Pull, Double Throw

Additional Details:

• Closed Contact: Resistive - 20 Amps; Conductive - 15 Amps
• Open Contact: Resistive - 40 Amps; Conductive - 30 Amps

Interchanges/Replaces

Arco

• R473

CDI

• 852-9809

GLM

• 73010

Johnson/Evinrude Outboard

• 582472
• 584416
• 586147
• 586224

Mallory

• 9-15200
• 9-15200-10

MES

• RL-001

OMC Stern Drive

• 0584416
• 3850403
• 3857533
• 582472

Volvo Penta

• 3857533
• 876037
• 876039
