Piggy Back Type B, size:4 x 20, 1763 sq in, copper tubes

Piggy Back-B exchangers are single pass on the shell side

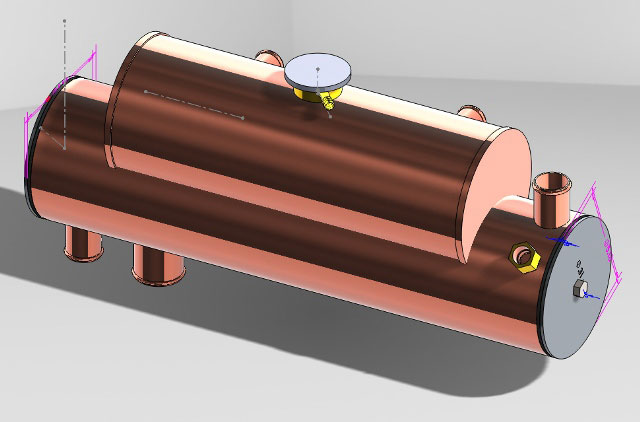

Piggy Back-B exchangers are single pass on the shell side, 3 pass on the tube (raw water) side. These have an integral expansion tank mounted above the heat exchanger itself - Piggy Back style. The exchanger is illustrated without a mounting bracket. We have brackets for virtually any mounting configuration. The exchanger is mounted on the bracket with cushioning material, and held in position with stainless steel clamps (sold separately). All exchangers are supplied with a zinc anode. All Raw Water and Coolant connections are beaded hose connections. Other styles and dimensions are available on request. Connection configurations may also be specified to meet your individual system requirements. Piggy Back Type B; size:4 x 20; 1763 sq in, copper tubes

Type Piggy Back Type B Size 4 x 20 Area 1763 in² Diameter 4 1/8 Length 18 · HeatExchanger,

MSRP: $0.00
Your Price: $0.00
You Save: NaN% off MSRP!

NOTE: This Item is Built to Order / Special Order.
You acknowledge that by ordering this item that the delivery times will vary and we will need to contact the manufacturer to get an estimated timeframe. Orders for expedited shipments will not be fulfilled in an expedited timeframe. Please contact us with the part number and we can assist you with more accurate delivery time estimate.
