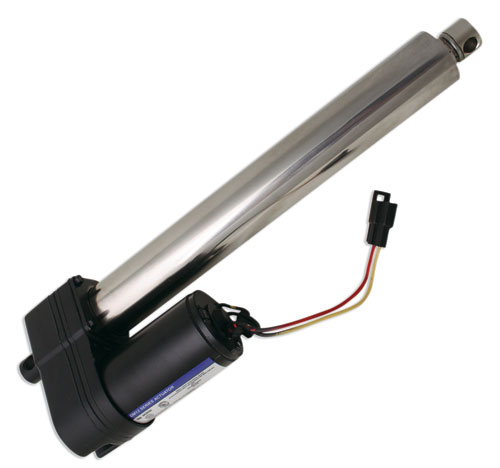

16 Inch Stroke Electric Hatch Actuator

  • 16" Stroke.
  • Overall Length Closed is 22-3/8".
  • Strong eyelet mount allows a wide range of angles for easy installation.
  • Marine grade stainless steel housing
  • Sealed precision die cast housing.
  • 12 VDC
  • Safe working dynamic load limit of 400 lbs.*
  • Static Limit of 500 lbs.*
  • Heavy duty, sealed ball bearing motor allows for locking of hatches, won’t open at high speeds
  • NOTE: Please verify your dimensions. Actuators that have been installed are NON returnable!

*Static loading refers to the load on an actuator when it is in a fixed or stationary condition. The static load capacity of an actuator refers to how much weight the actuator can safely hold without back driving or causing damage. Dynamic load is the load the actuator sees when it is powered and extending or retracting. The dynamic load capacity of an actuator refers to how much the actuator can push or pull. Placing an actuator closer to the hatch hinge point will require the actuator to work harder than installing it further out.

MSRP: $524.91
Your Price: $473.99
You Save: 10% off MSRP!

Videos On This Product:
Additonal Info On This Product:

16 Inch Electric Hatch Actuator
(Overall Length Closed is 22-3/8")

TheseHatch Actuators use a time proven design while blending significantconstruction and performance advantages. These units use severe duty 12VDC motors to provide a 20% faster actuation than the competitors. Eachof these units use a beautifully polished stainless (except 4" & 8"Black only) and black coating offering a stunning appearance withsupreme corrosion resistance. With a400 LB maximum load capacity you canbe assured your getting the best you can buy.


  • Strong eyelet mount allows a wide range of angles for easy installation
  • Highly polished stainless steel tube offers a beautiful appearance and the very best in corrosion resistance.
  • Sealed precision die cast housing
  • A 12-volt sever duty motor offers excellent load capacity and reliability


  • A 30 amp, type AGC fuse must be installed between the power source and actuator switch to protect against overcurrent.
  • Actuator "on time" must not exceed 25%. Example: If "on time" is 25 seconds, then the actuator must remain off for 75 seconds before being operated again. Exceeding a 25% duty cycle can lead to overheating and may result in hazardous conditions.
  • Actuator is factory lubricated for life and no additional lubrication is required for maintenance.
  • The actuator incorporates a slip clutch to protect against overloading. The clutch is preset at the factory to slip if the load exceeds the rated load.
Specifications On This Product:


Overall Length Closed: 22-3/8"
Mounting Hole Center to Center Closed: 22.32"
Mounting Hole Center to Center Open: 38.32"
Width: 3"
Height (Width of Ram and Motor): 5.80"
