Alpha One (Gen. II) 1991-1995 - Serial 0D469859 Thru 0F679999 - Mercthode Kit

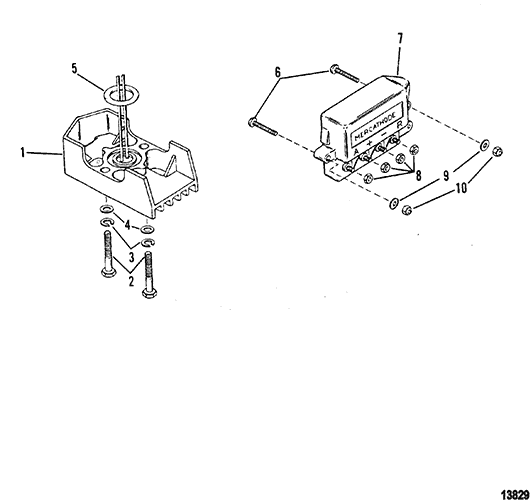

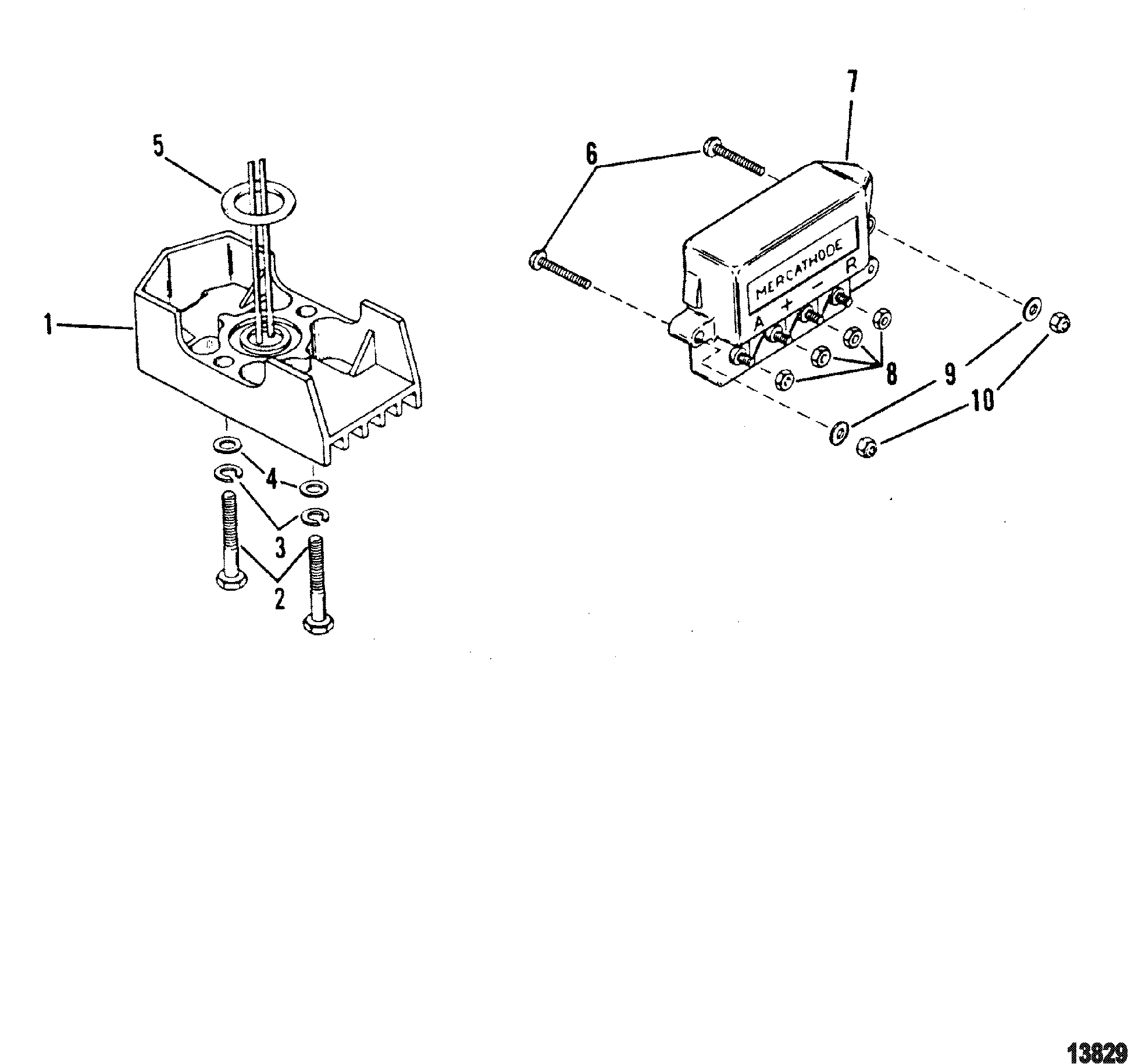

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 98869A17



NOT SOLD SEPARATELY, ELECTRODE ASSEMBLY 1 98869A11 This part is Not Sold Separately
2 10-69067



SCREW, (.250-20 x 1.375) 2
Component Of Drive Shaft Housing Seal Kit [26- 88397A 1]
3 13-26992



LOCKWASHER, (.250) Stainless Steel 2
As Required
4 12-29245

700-21490
WASHER, (.281 x .500 x .060) Stainless Steel 2
Component Of Water Pump Rebuild Kit [817275A 4]
5 25-88388



O-RING 1
Component Of Seal Kit [26-816575A 3]
6 10-72202

700-22312
SCREW, (#10-32 x 1.25) 1
Optional
6 10-45862



SCREW, (#10-32 x .875) 1
Replacement Gimbal Housing Assy, Complete- Includes Bell Housing, Gimbal Ring, Trim Cylinder, Etc.
7 42600A09



CONTROLLER ASSEMBLY 1 42600A3
8 11-68219



NUT, (#10-32) Stainless Steel 4
9 12-21273



WASHER 2
10 11-46438



NUT, (#10-32) 2
