Trim Indicators and Accessories

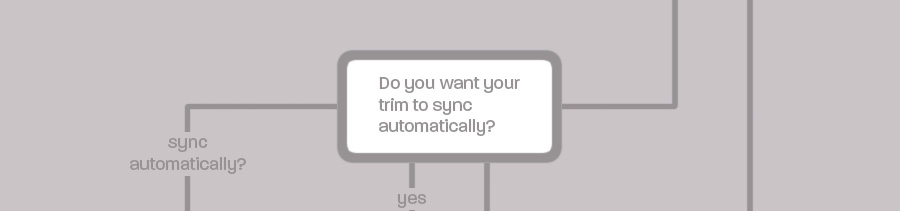

Selecting Trim Indicators for your application is easy! We offer both easy to use and install electronic trim indicator systems and traditional cable driven mechanical trim indicator systems. We also carry all the cables, thru-hulls, actuators and more you might need to update or repair your trim indicator system. If you need to monitor multiple drives and tabs at the same time, we have the kits you need!

How to Build Your Electronic LED Trim Indicator Kit (4 Slot Example)

Example Built on Twin, Pre-Smartcraft Engines with Tabs

Mayfair

Livorsi

(1) 137-87XX (1) 730-ALED2D2T + Options
(1) 137-8282 Panel Power Harness (Included in Kit) (4) 730-LEDHEXTS Jump Harnesses to Sensor Input (Not Included in Kit)
(1) 137-8411 30 ft. Main Harness (Included in Kit) (1) 730-LEDHLINB Intermediate Harness (Not Included in Kit)
(2) 137-8680 LED Drive Actuator Kits (Included in Kit) (4) 730-HSAXX 20, 25, 30 or 40 ft. Main Harness (Not Included in Kit)
(2) 137-8681 LED Trim Actuator Kits (Included in Kit) (4) 730-CAX 3, 4 or 5 ft, 33c Cables (Not Included in Kit)
(2) 525-846063A1 Bravo Drive Actuators (Included in Kit) (4) 730-CBME5V Cable Converters (Not Included in Kit)
Retail: $2199.99 Retail: About $2800 depending on options

Feature Comparison

Real Carbon Fiber Face Printed Carbon Fiber Face
Stainless Steel Case Aluminum Case
Sealed Electronics Sealed Electronics
No Cables, 100% Electronic Need Short Cables and Converters
New Actuators Included in Kit Need to Have Actuators or Buy New Ones Separate
Merc 0-5 Volt POT Merc 0-5 Volt POT
