Alpha One (Gen. II) 1991-1995 - Serial 0D469859 Thru 0F679999 - Gimbal Ring And Steering Lever

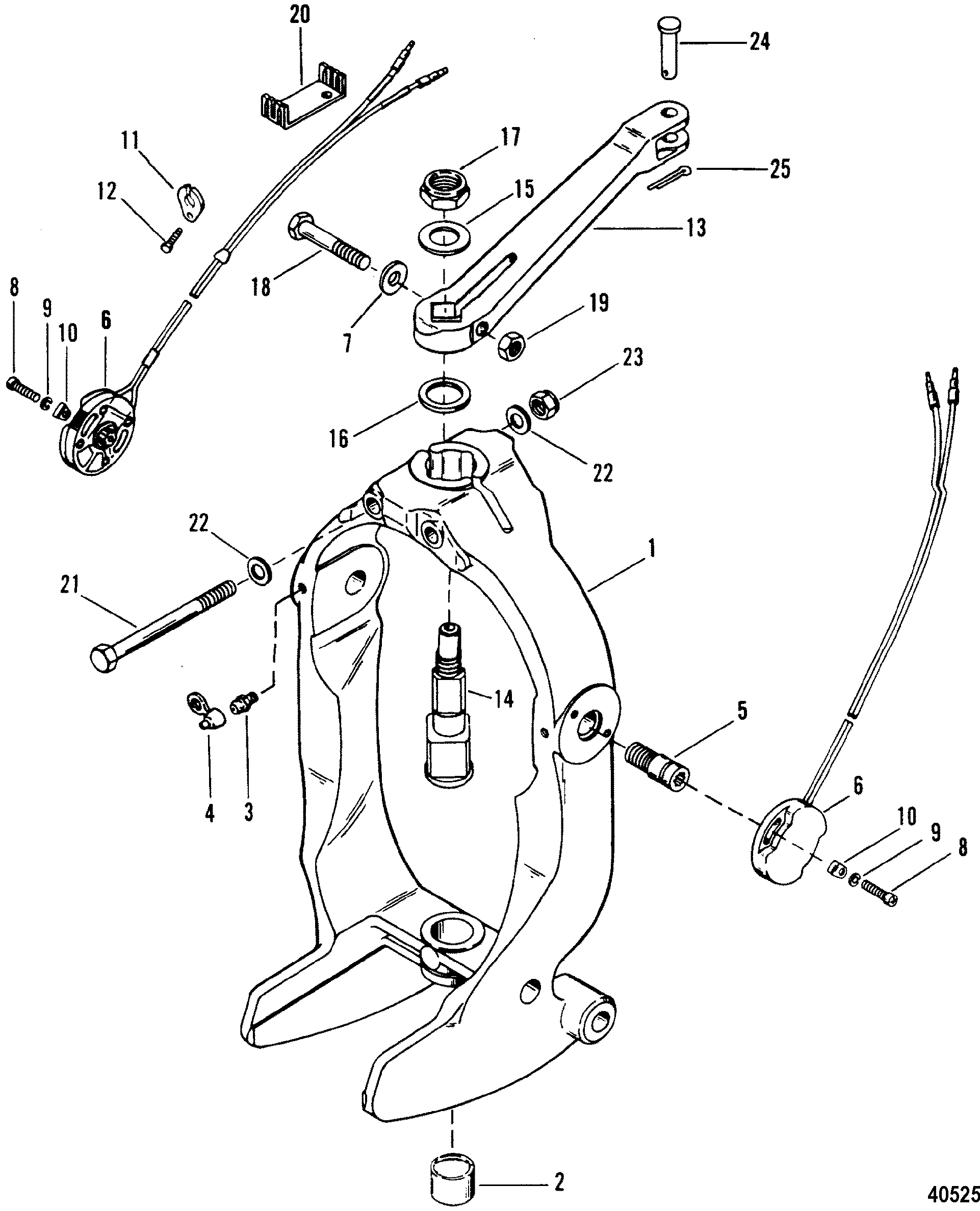

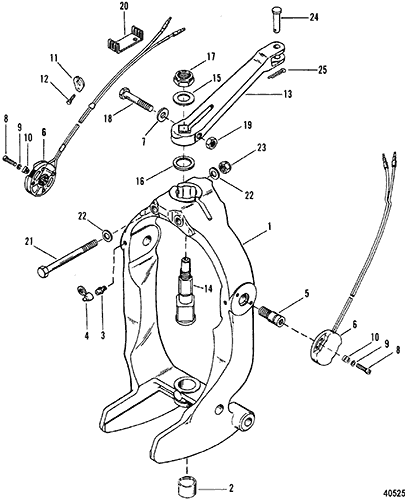

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
`X21 865328A01



GIMBAL RING ASSEMBLY 1 816461A2
2 23-99352



BEARING 1

3 22-74036



FITTING, Grease (.250-28) 2

4 19-77633Q



LUBRICAP 2 19-77633
5 77123
676-9-73130

PIN, Hinge 2

6 805320A03



SWITCH ASSEMBLY 1 805320A1
7 12-861854


525-12-861854 WASHER 1 12-91964
8 10-37978



SCREW, (#10-32 x .750) Stainless Steel 4

9 13-26996



LOCKWASHER, (#10) Stainless Steel 4

10 57008



RETAINER 4

11 54-12078



CLAMP 1

12 10-28635



SCREW, (.250-20 x .620) Stainless Steel 1

13 866322A01



LEVER ASSEMBLY 1 98262A1
14 98230A1
676-9-73131

SHAFT ASSEMBLY 1

15 12-85344



WASHER, (.750 Inside Diameter) 1

16 12-98548



WASHER, (1.125 ) 1

17 11-8M2014641



NUT, (.750-16) 1 11-25599
18 10-807204



SCREW, (.437-20 x 2.00) 1 10-32995
19 11-8M2008293



NUT, (.437-20) 1 11-98533
20 79146



RETAINER 1

21 10-90126



SCREW, (.375-24 x 3.750) 2

22 12-34931



WASHER, (.406 x .734 x .063) Stainless Steel 4

23 11-862903



NUT, (.375-24) 2 11-134371
24 17-52798



PIN, Clevis 1
(Non Power Steering)
25 18-46950



COTTER PIN 1
(Non Power Steering)
