Alpha One (Gen. II) 1991-1995 - Serial 0D469859 Thru 0F679999 - Oil Reservoir Components (Round Oil Bottle)

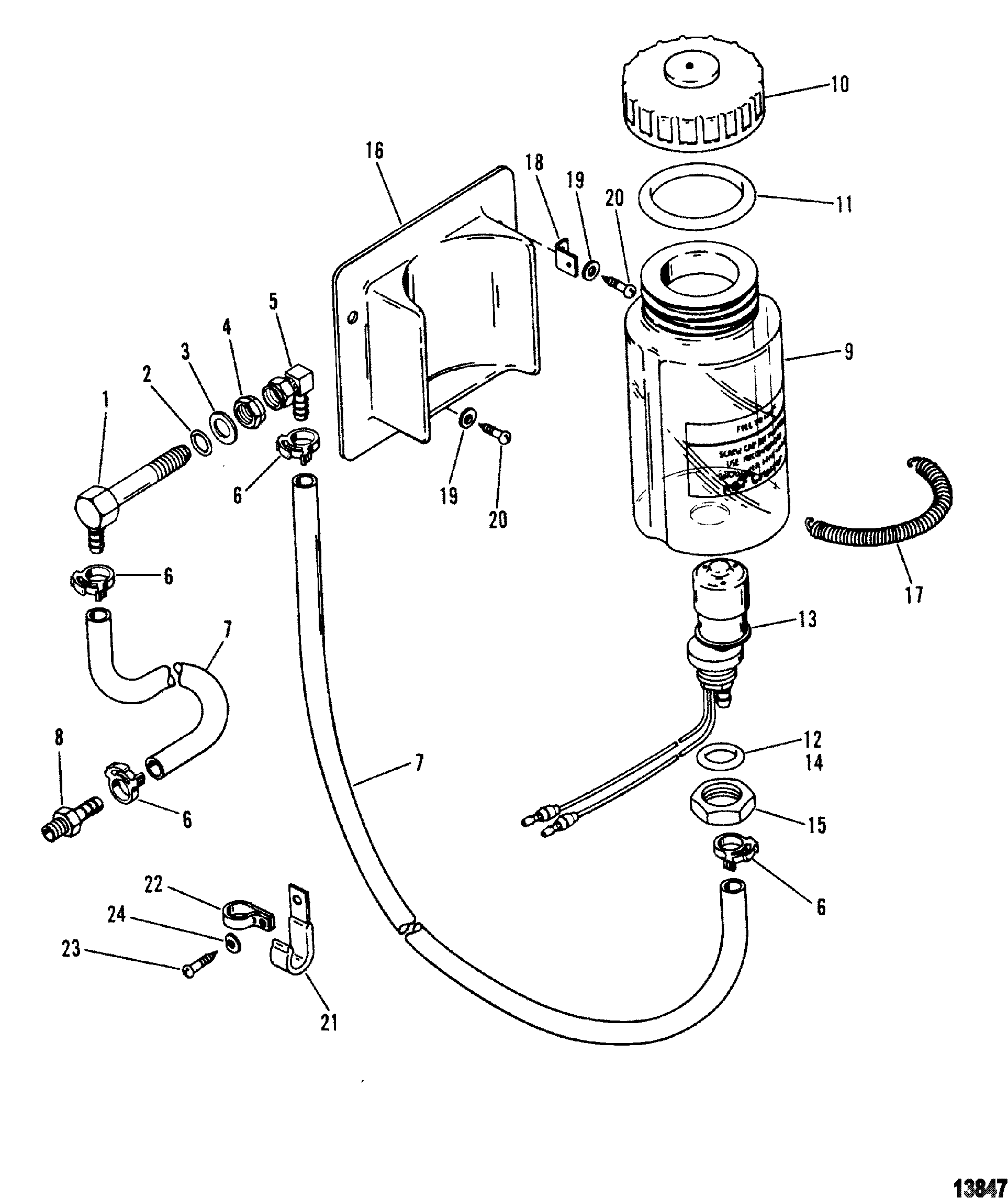

Section Drawing: (Hover or click to view larger)

Untitled Document
Note: Round Oil Bottle
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 22-18922         CONNECTOR 1

2 25-201951         O-RING 1 25-20195
3 12-861854       525-12-861854 WASHER 1 12-91964
4 11-35053       525-11-35053 NUT, (.437-20) 1

5 22-18923         FITTING 1

6 54-415825         CLAMP, Nylon 4

7 32-8M0062600         HOSE, (54.00 Inches Bulk) 1 32-1940971
8 22-16739         CONNECTOR 1

9 806193A48         BOTTLE ASSEMBLY 1 19743A4 This is a square bottle kit, it is the factory replacement for the round bottle which is no longer made.
10 36-19741A1         CAP ASSEMBLY 1   This Part is No Longer Available
11 25-19737         O-RING 1   This Part is No Longer Available
12 25-30613     700-81170   O-RING 1

13 87-19742A1         SWITCH ASSEMBLY 1
No longer made, limited availability
14 25-30613     700-81170   O-RING 1

15 11-19740         NUT 1   This Part is No Longer Available
16 678961         BRACKET 1
17 24-67908         SPRING 1
18 67905         RETAINER 2
19 12-58198         WASHER, (.188 x .438 x .050) 3
20 10-60605         SCREW, (#10-16 x .750) 3
21 54-642351         J CLIP 1
22 54-23567         CLIP 1
23 10-60605         SCREW, (#10-16 x .750) 1
24 69205         C WASHER 1
