Alpha One (Gen. II) 1991-1995 - Serial 0D469859 Thru 0F679999 - Drive Shaft Housing And Drive Shaft

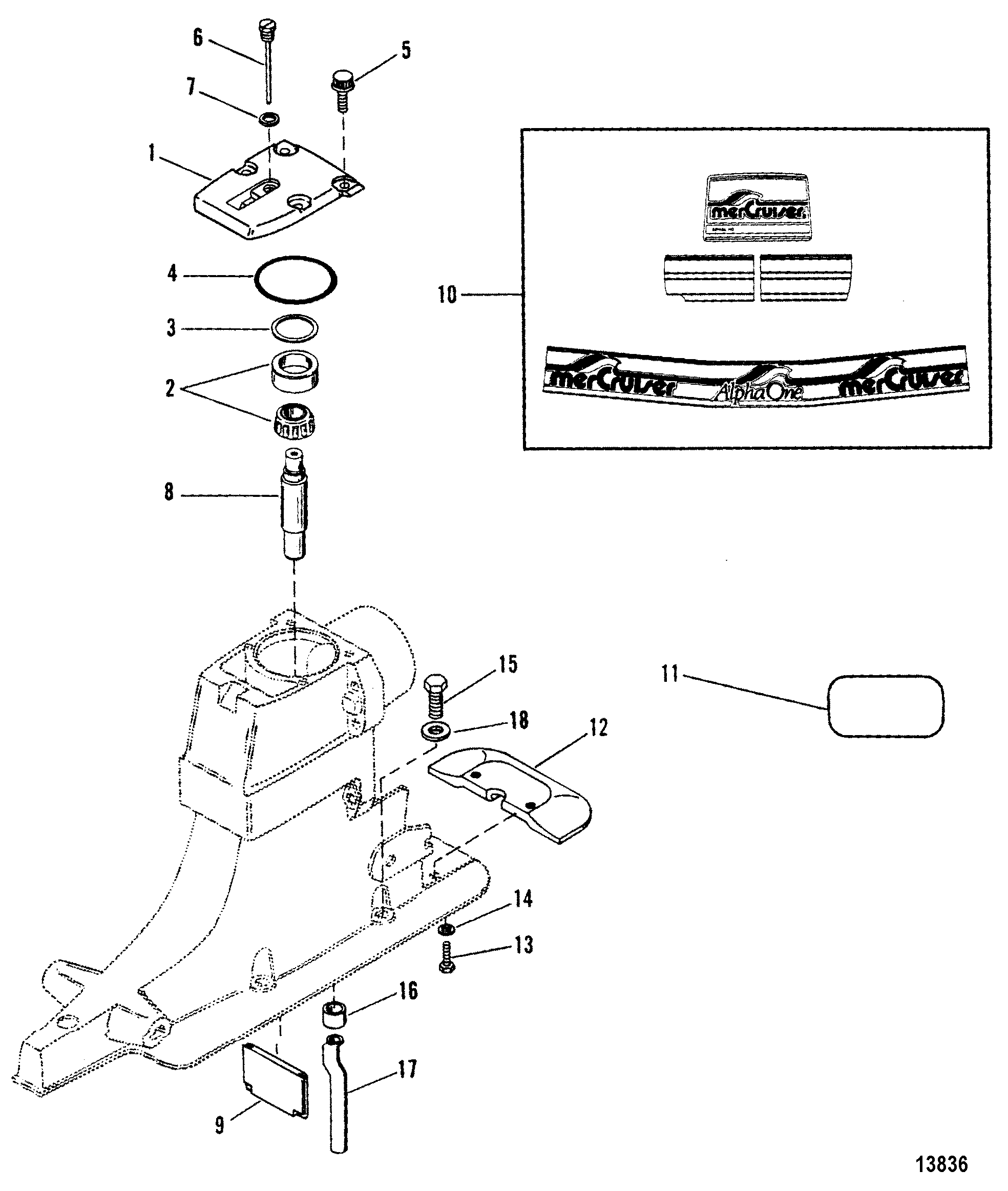

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 18312A1



TOP COVER, With Dipstick Hole 1

1 828692A1



TOP COVER, With Out Dipstick Hole 1 18312A3
2 31-61100A1

700-21510
BEARING ASSEMBLY 1

3 15-45691A1

700-23260
SHIM AR
3
4 25-32546
676-9-76546 700-80420
O-RING 1
2
5 10-98794
676-9-78129 700-28300 525-10-98794 SCREW, (.375-16 x 1.00) 4

6 10-79953Q04



DIPSTICK ASSEMBLY 1 816610A1 (Old Design)
7 12-191833


525-12-191833 WASHER, Fiber 1 12-19183 (Old Design)
8 45-557961



DRIVESHAFT, Upper 1

9 815932

700-10991
FILLER WALL 1

10 37-817387A91



DECAL SET 1

11 37-13722A11



DECAL SET, Engine Model 1
(2.5L/3.0L)
11 37-13722A13



DECAL SET, Engine Model 1
(4.3L/4.3L-LX/5.0L/5.0L-LX/5.7L)
12 821629Q1

700-12711
ANODE ASSEMBLY 1 821629A1
13 10-28668
676-9-78127 700-22440
SCREW, (.250-20 x .875) Stainless Steel 2

14 13-78968
676-9-78144

LOCKWASHER, Internal (.250) 2

15 10-816601

700-28430
SCREW, (.437-20 x 1.500) 4

16 26-88397

700-12831
SEAL 1
2
17 32-860220
676-9-44010 700-12829
TUBE, Water 1 32-814384
18 12-45176

700-28420
WASHER, (.453 x .812 x .105) Stainless Steel 4
19 26-88397A1

700-87501
SEAL KIT, Driveshaft Housing 1
